Data Link Connector (DLC) Schematics
WARNING:
This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.

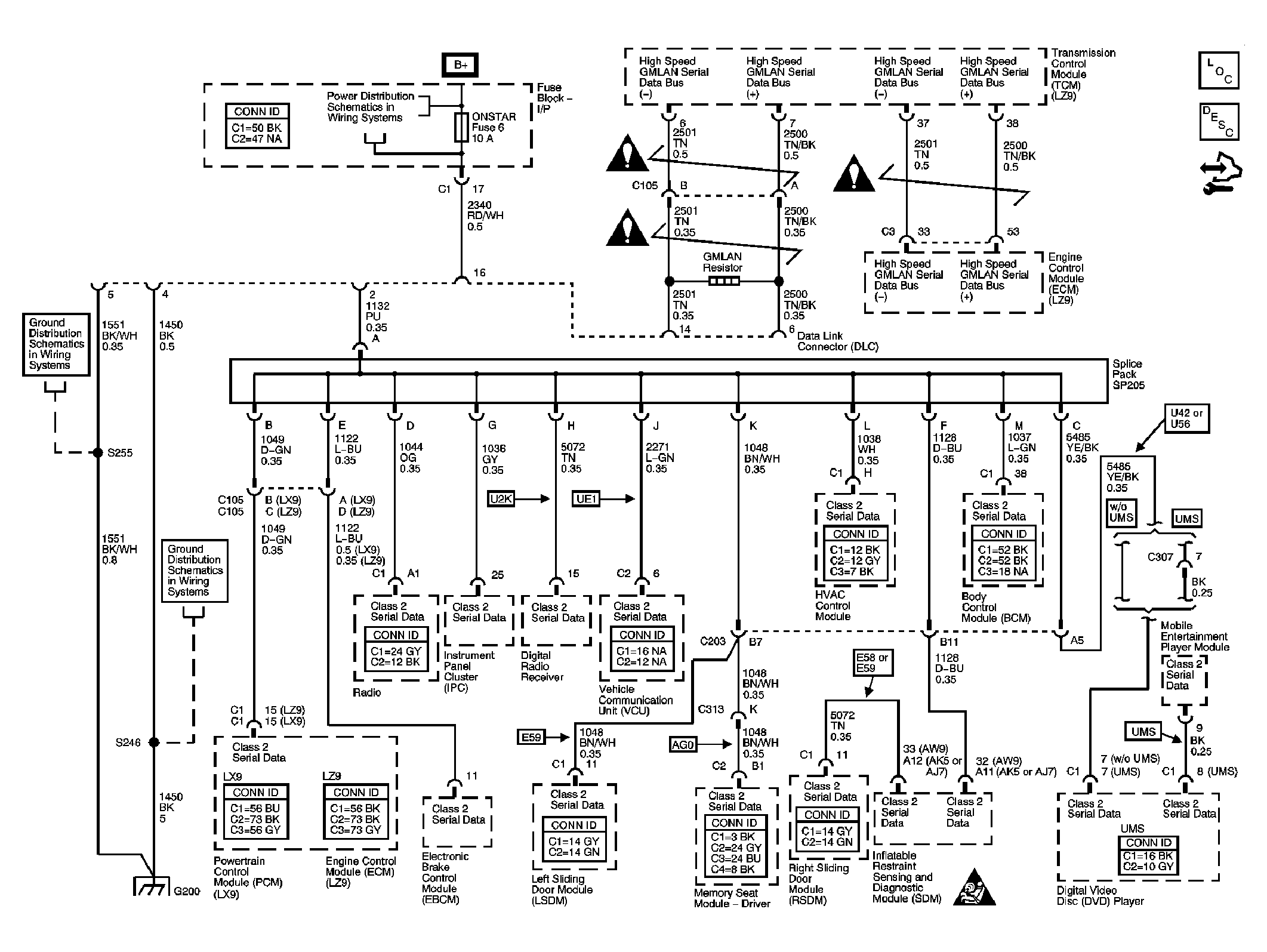

Fig 1: Data Link Connector (DLC) Schematic
Courtesy of GENERAL MOTORS CORP.
