Communications Control Module

Component Connector End Views

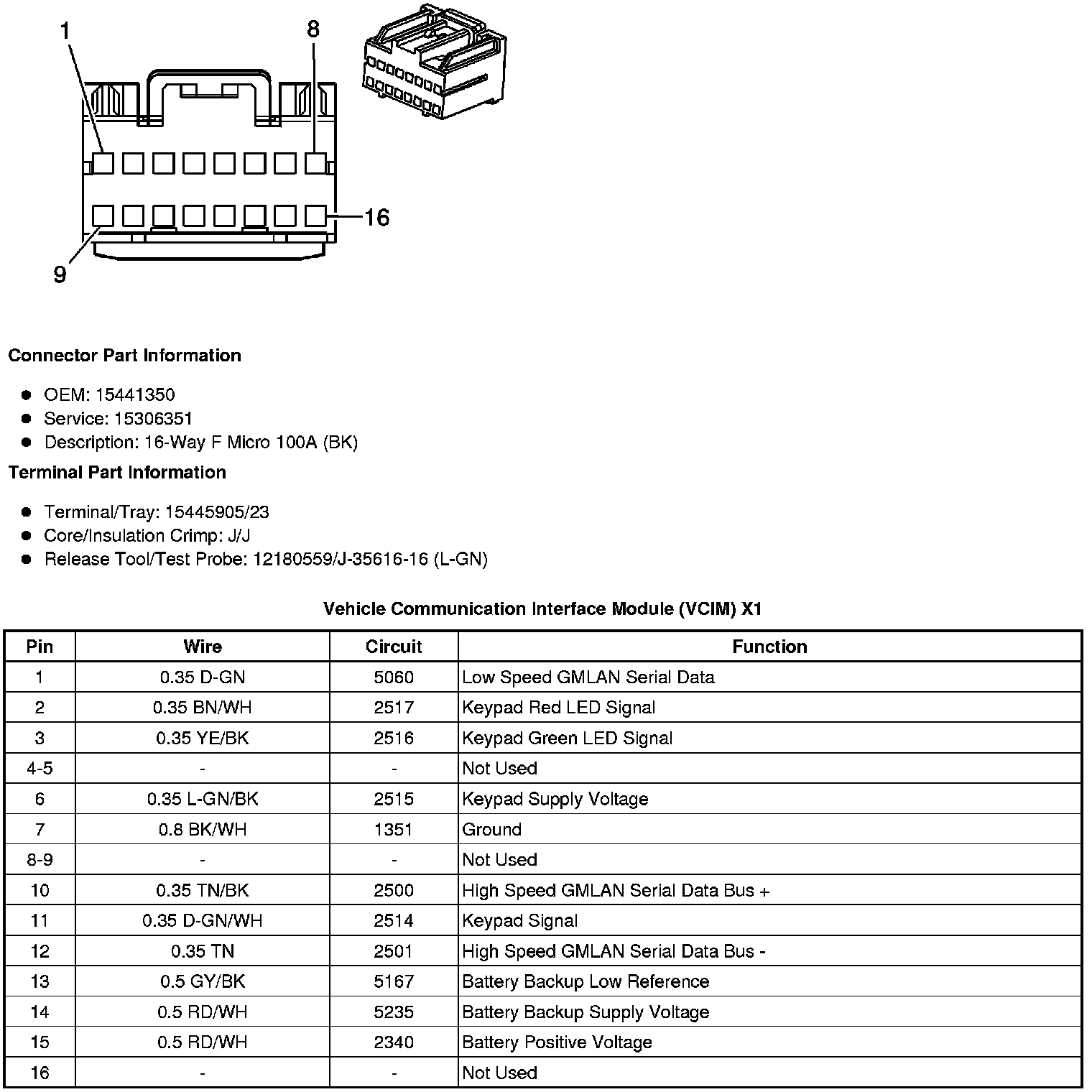

Vehicle Communication Interface Module (VCIM) X1

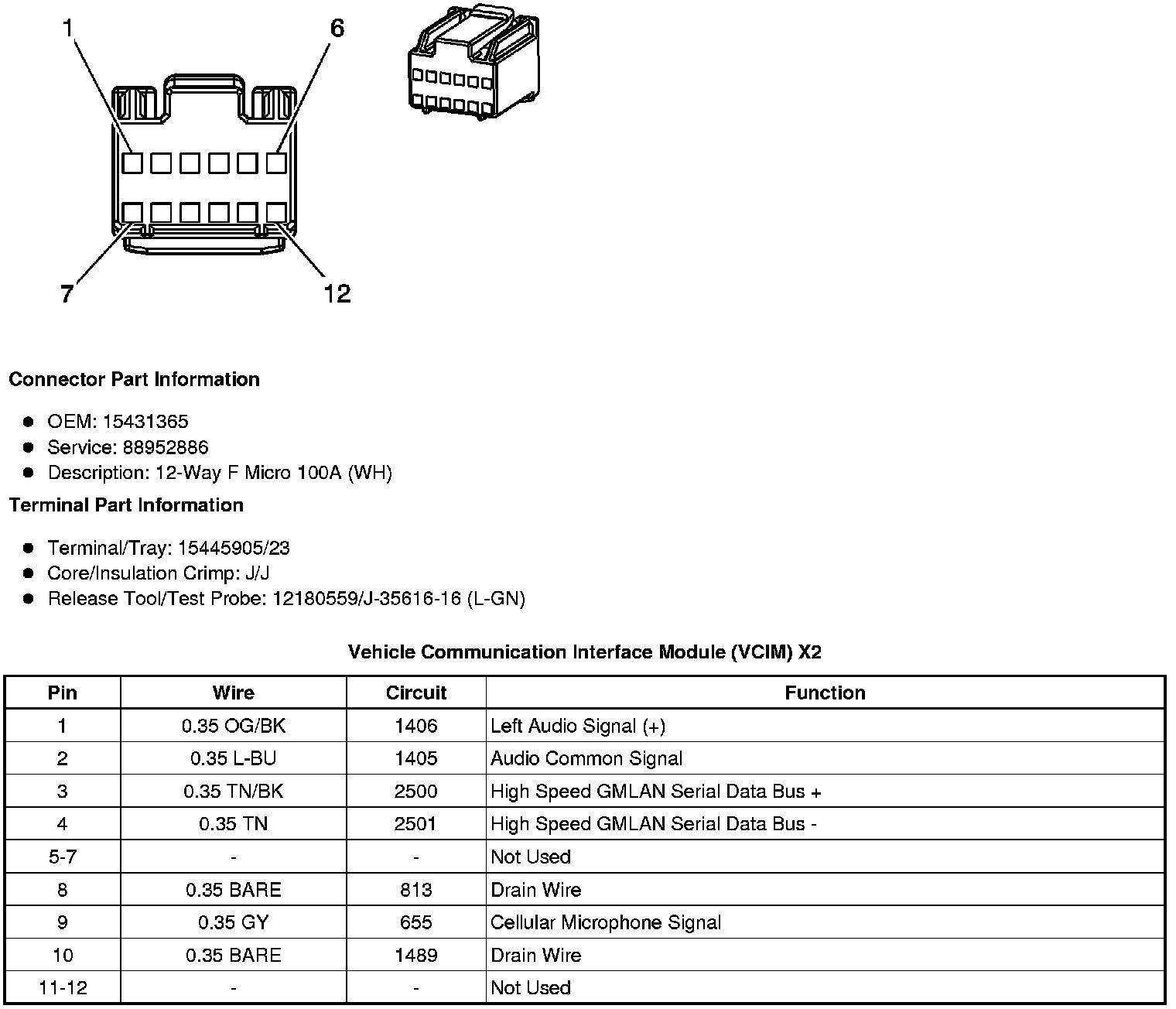

Vehicle Communication Interface Module (VCIM) X2

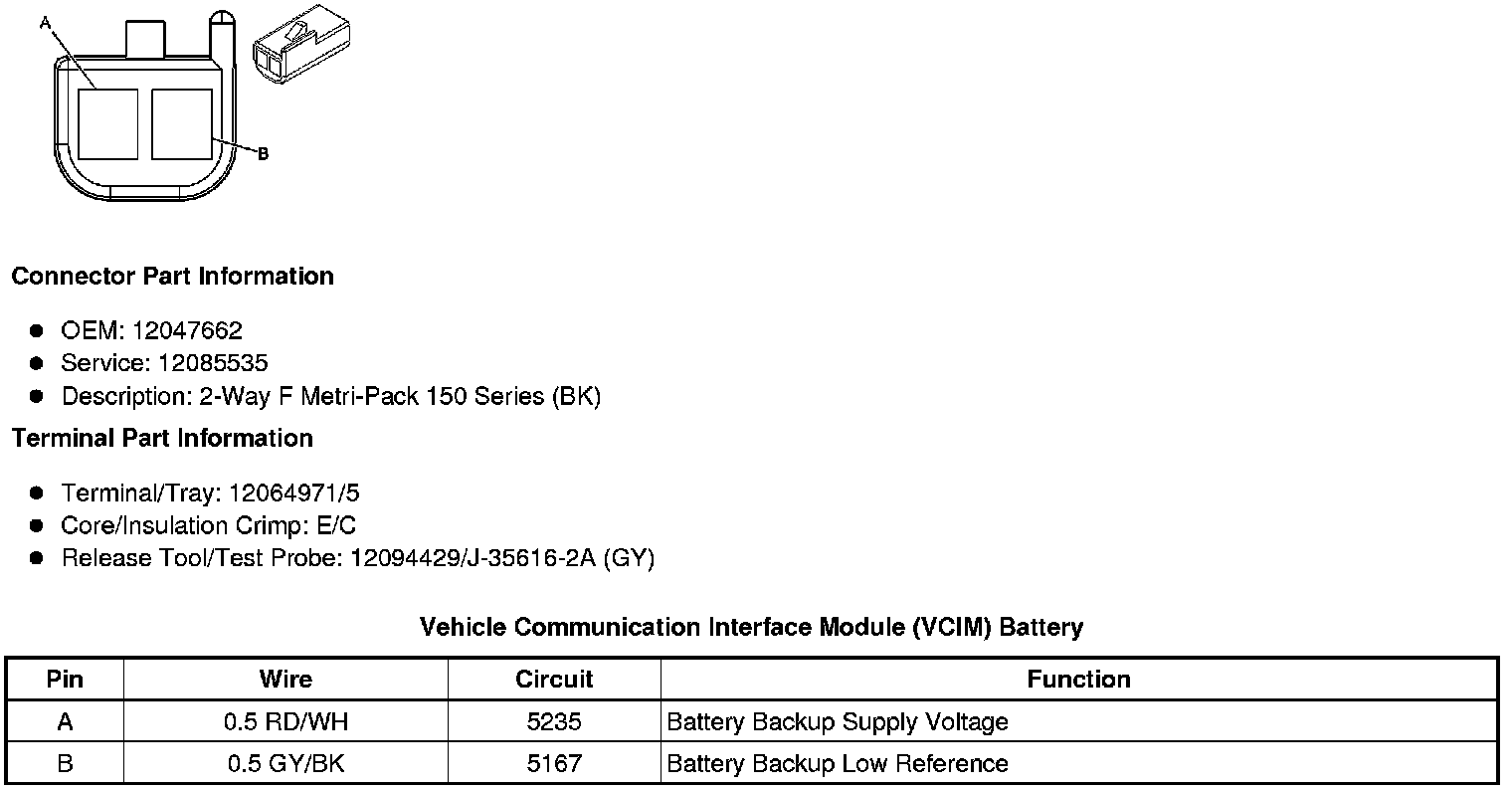

Vehicle Communication Interface Module (VCIM) Battery
