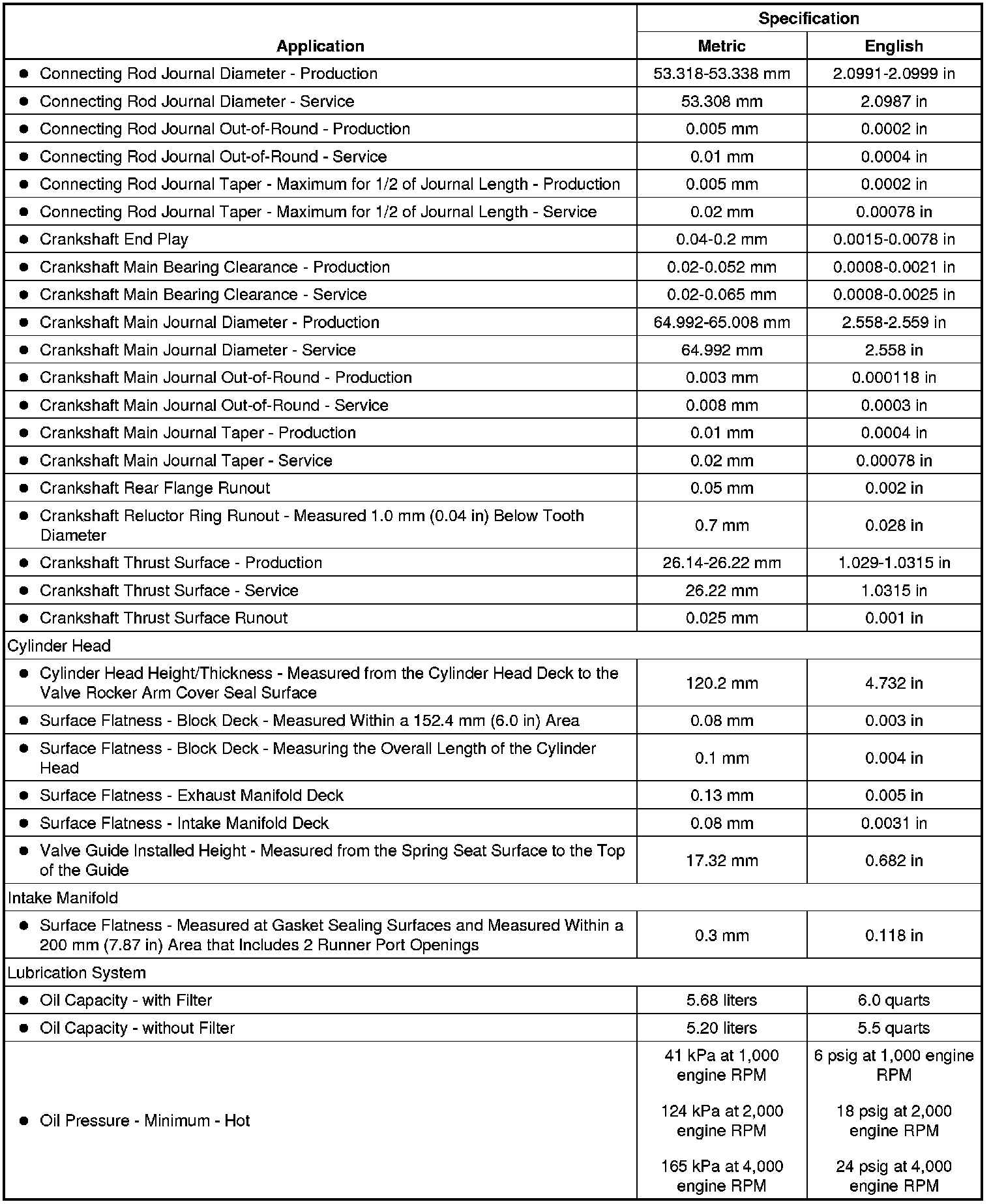

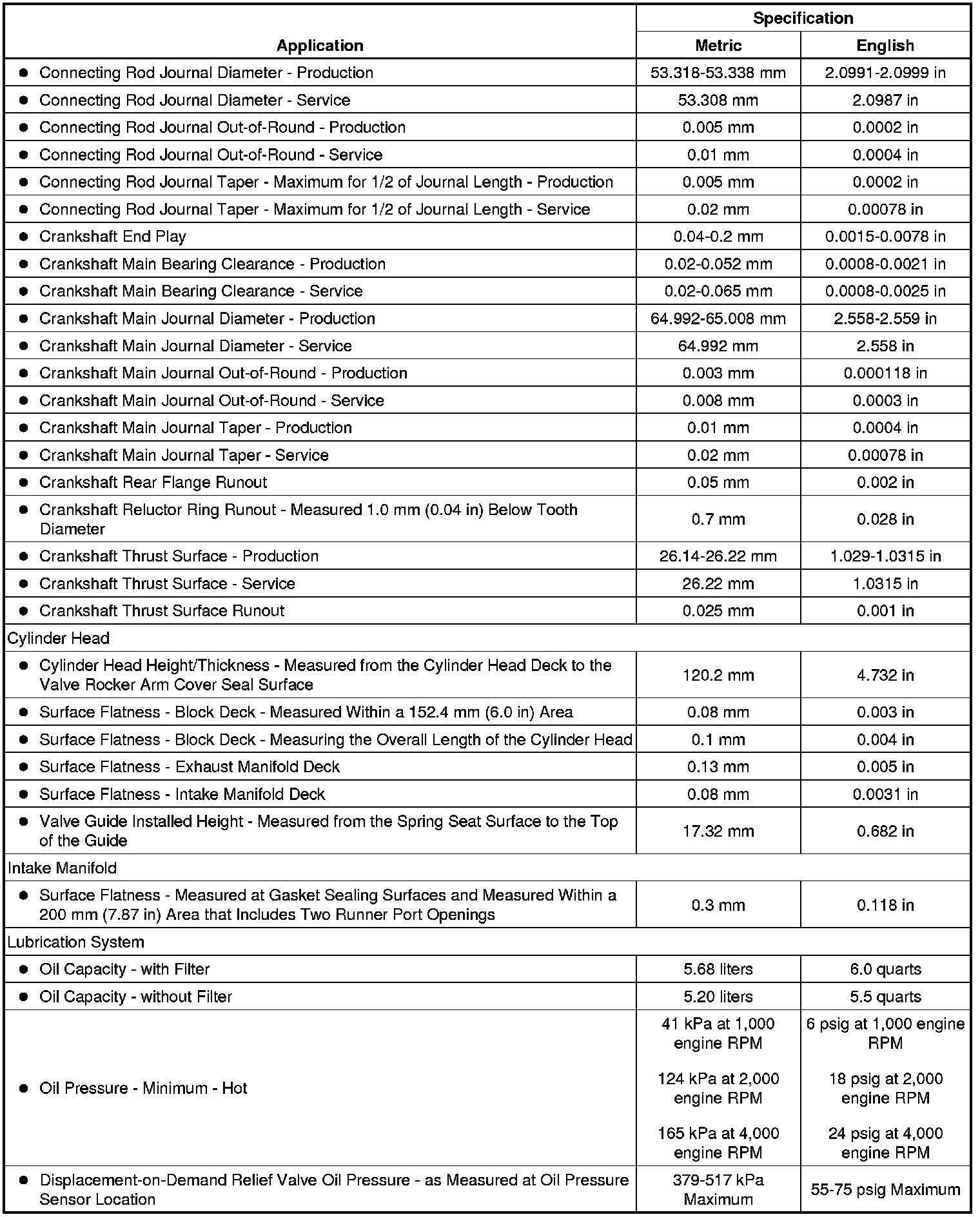

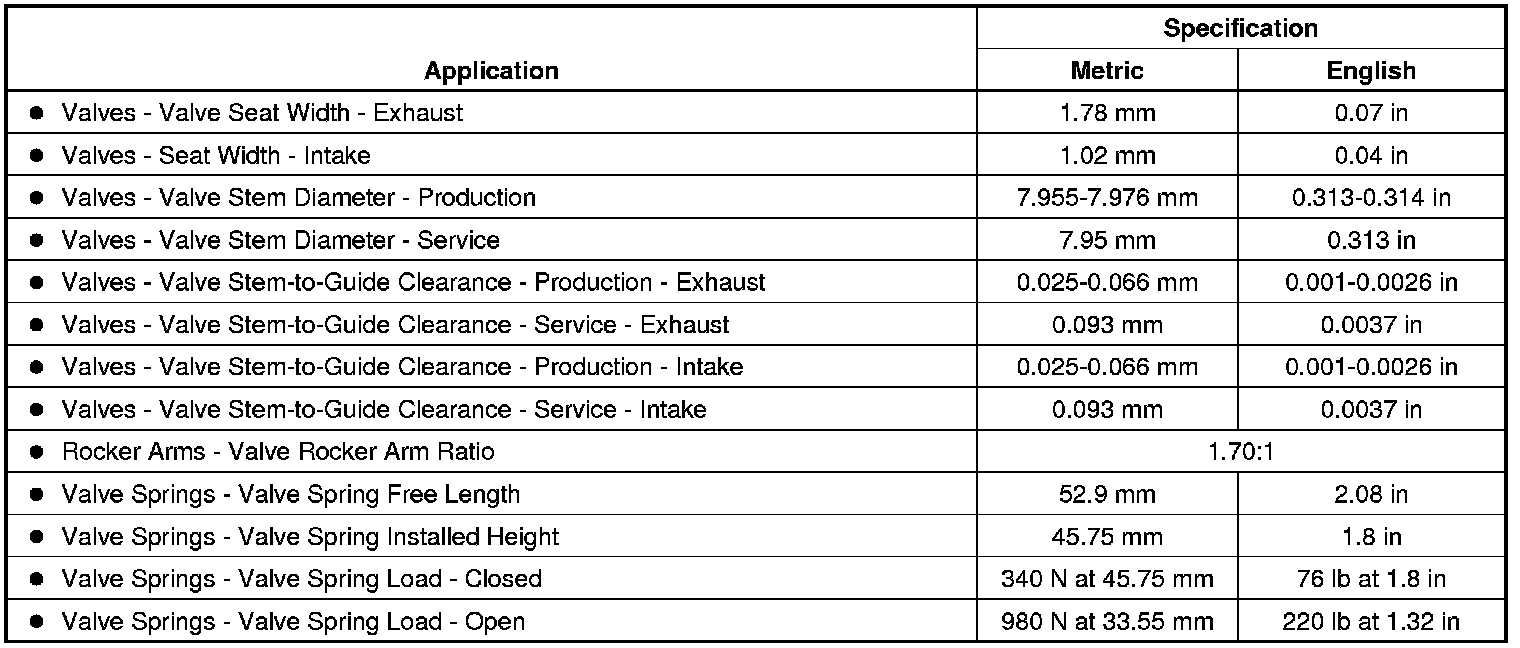

Engine Mechanical Specifications



Engine Mechanical Specifications (RPO LY5 VIN J)

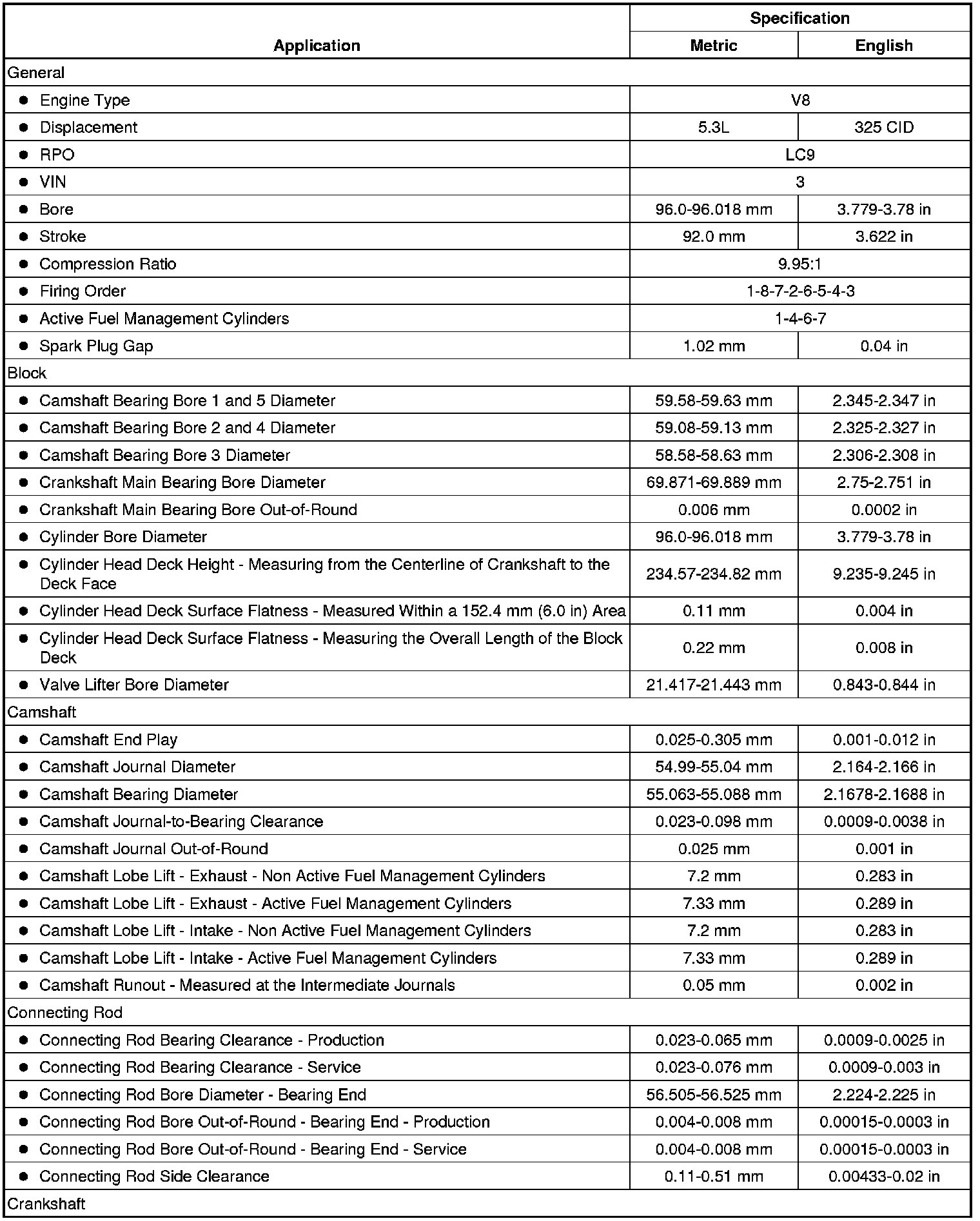

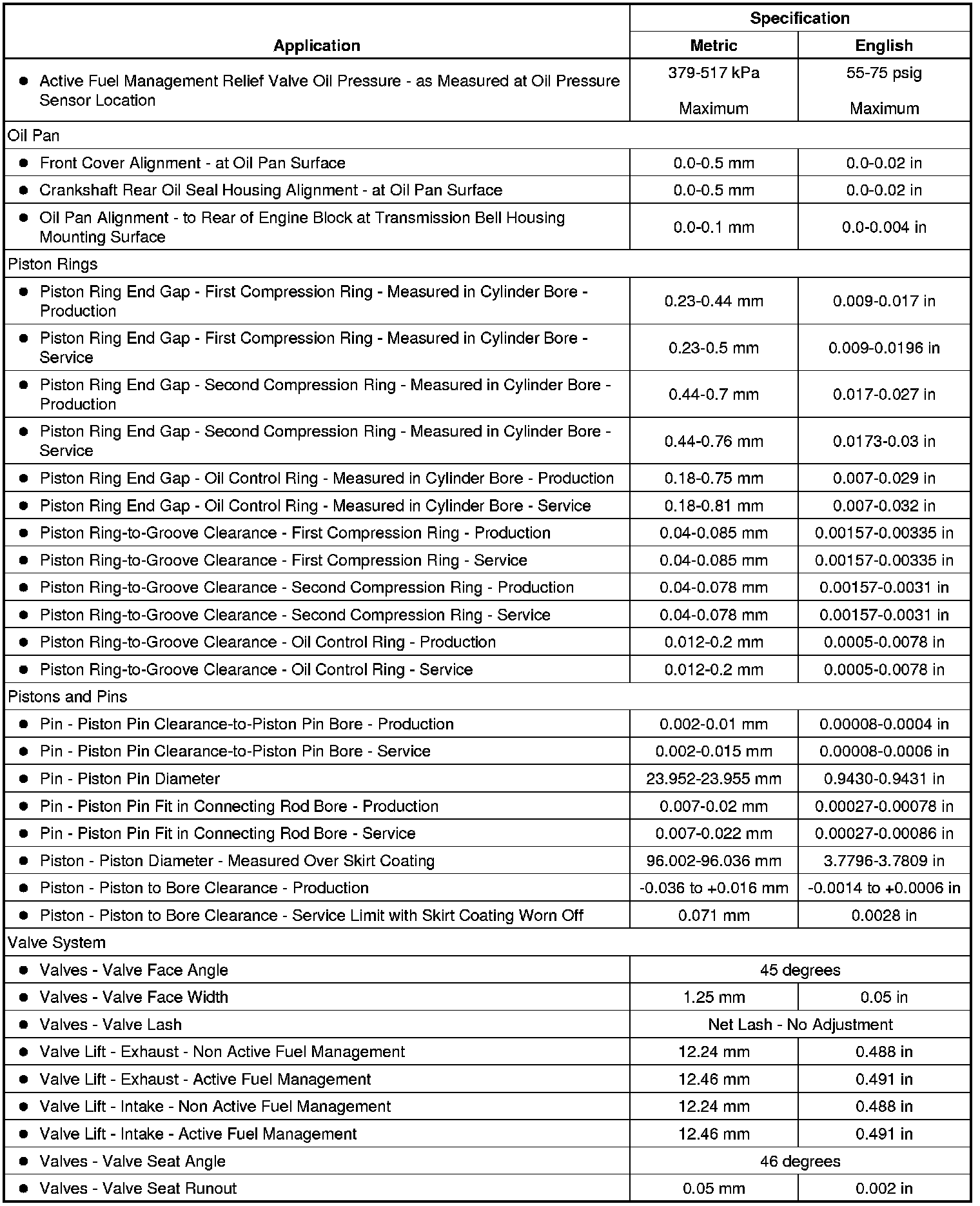

Engine Mechanical Specifications (RPO LC9 VIN 3)



















Engine Mechanical Specifications (RPO LMG VIN 0)

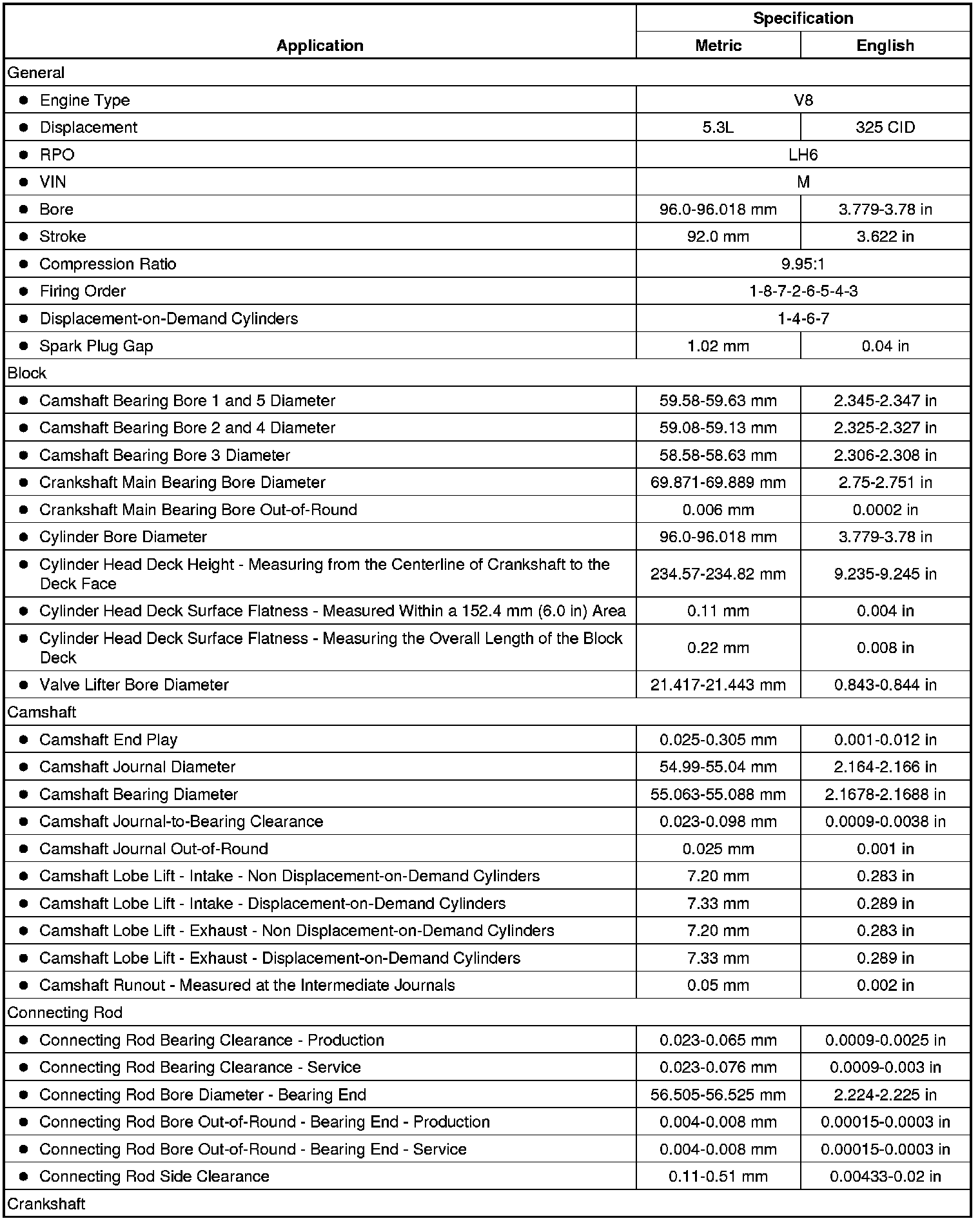

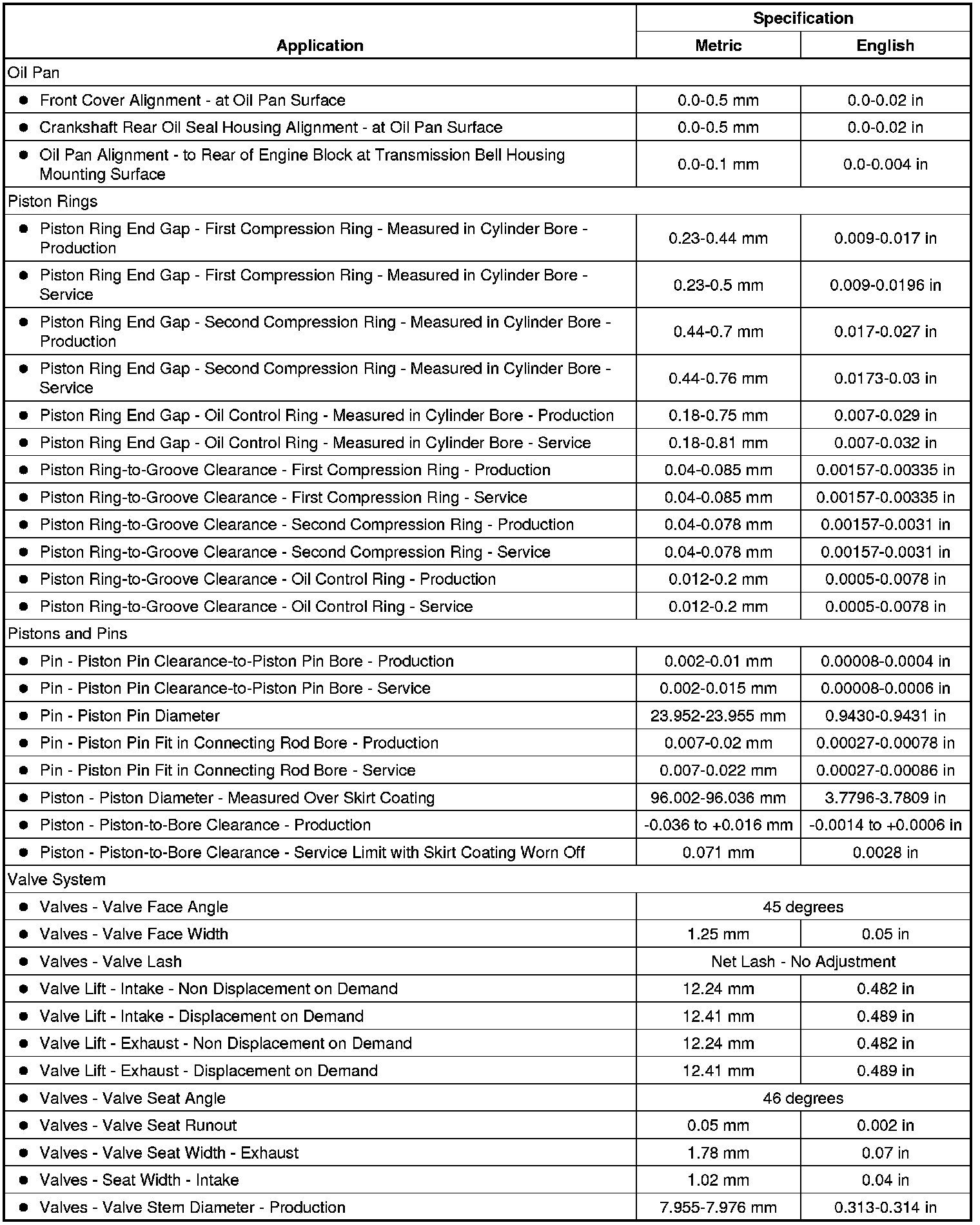

Engine Mechanical Specifications (RPO LH6 VIN M)
