Primary Timing Chain Guide Replacement - Upper



PRIMARY TIMING CHAIN GUIDE REPLACEMENT - UPPER

Removal Procedure






1. Remove the spark plugs in order to ease crankshaft/engine rotation. Service and Repair

2. Remove the engine front cover. Service and Repair

3. Remove the primary camshaft drive chain tensioner. 20. Primary Camshaft Intermediate Drive Chain Tensioner Removal

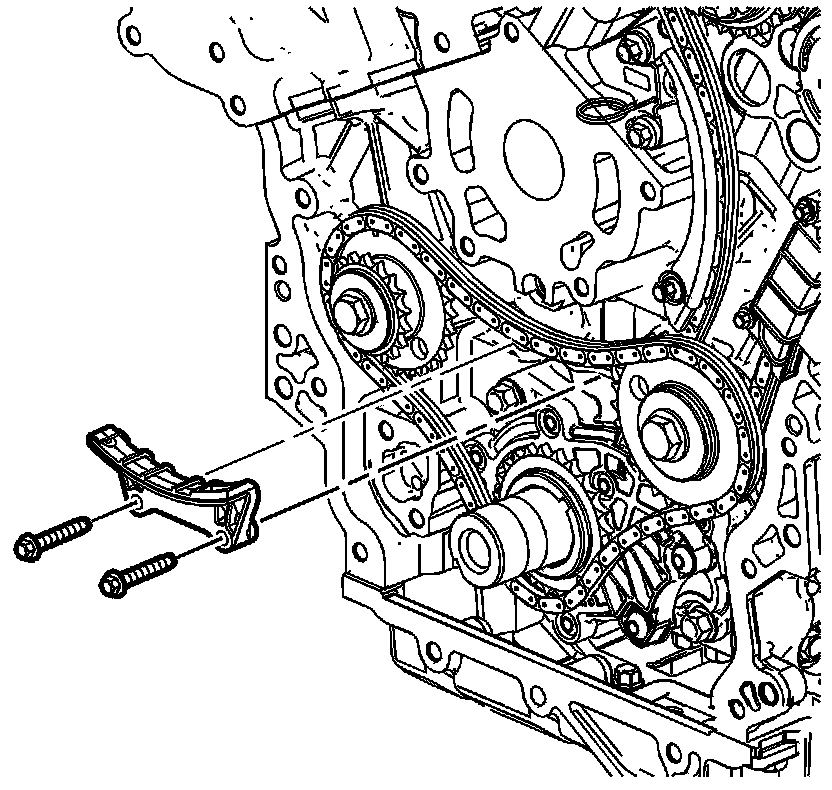

4. Remove the primary upper camshaft drive chain guide. 21. Primary Timing Chain Guide Removal - Upper

Installation Procedure






1. Install the primary upper camshaft drive chain guide. 120. Primary Timing Chain Guide Installation - Upper

2. Install the primary camshaft drive chain tensioner. 121. Primary Camshaft Intermediate Drive Chain Tensioner Installation

3. Install the engine front cover. Service and Repair

4. Install the spark plugs. Service and Repair
