Engine Splash Shield Replacement

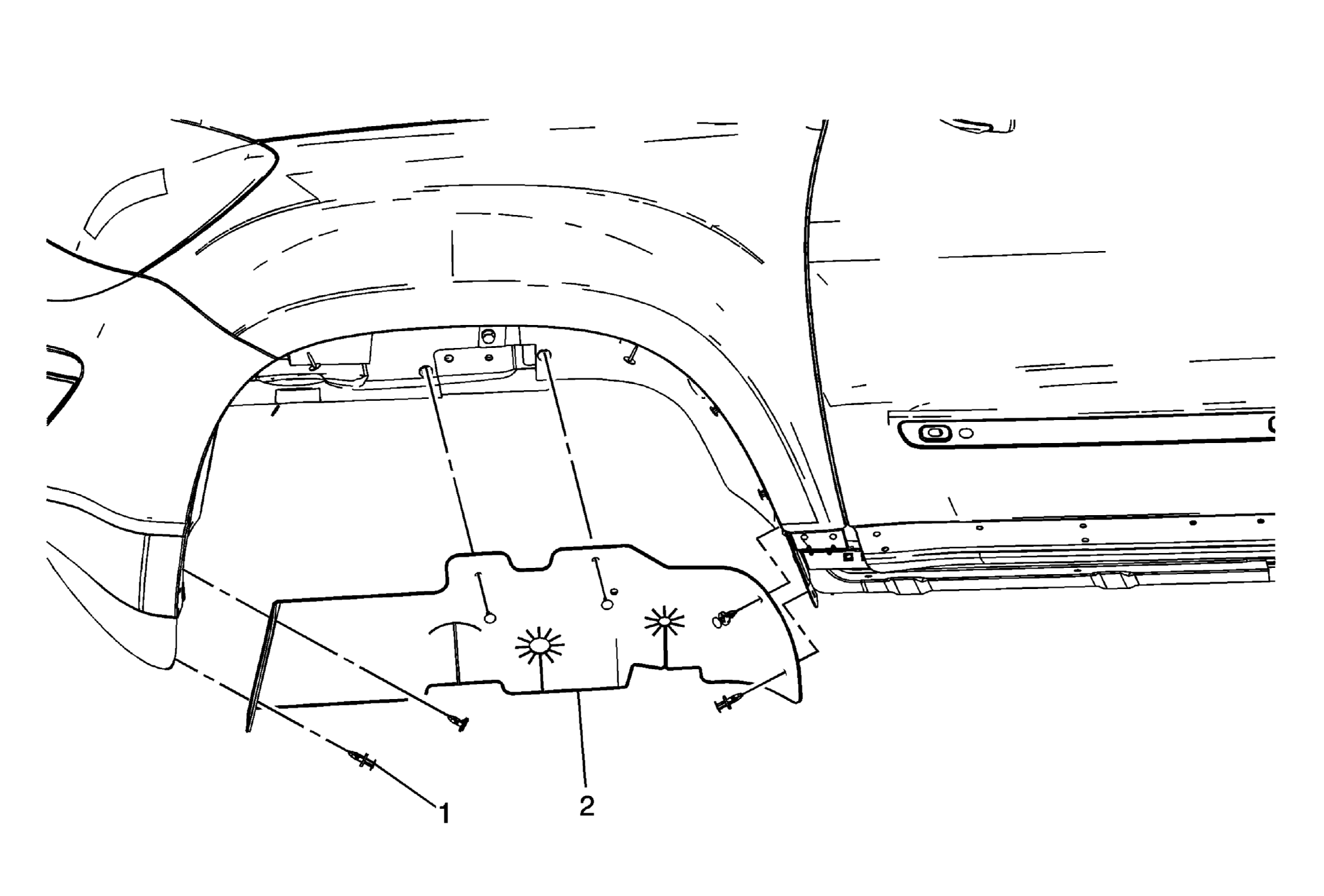

Fig 1: View Of Engine Splash Shield
GM1857740Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
1 Engine Splash Shield Plastic Retainer (Qty: 3)
2 Engine Splash Shield
