Trailer Connector/Provision Schematics

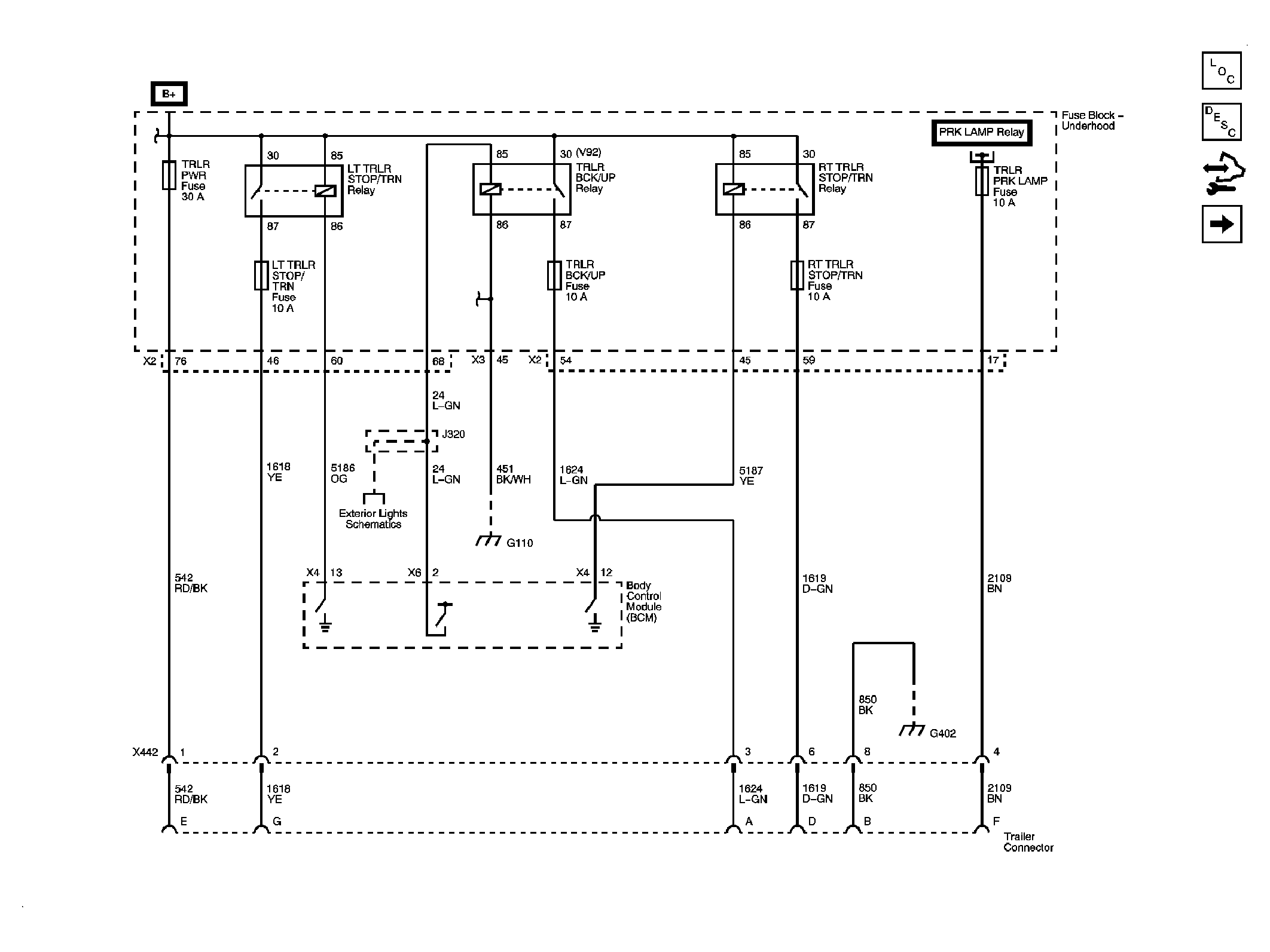

Fig 1: Trailer Connector Circuit Schematic
GM2078183Courtesy of GENERAL MOTORS CORP.
Fig 2: Blunt Cuts Circuit Schematic
GM2078187Courtesy of GENERAL MOTORS CORP.
