Radio Front Side Door Speaker Replacement

WARNING: This page is about a different car, the 2011 GMC Acadia, 2011 Chevrolet Traverse, and 2011 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

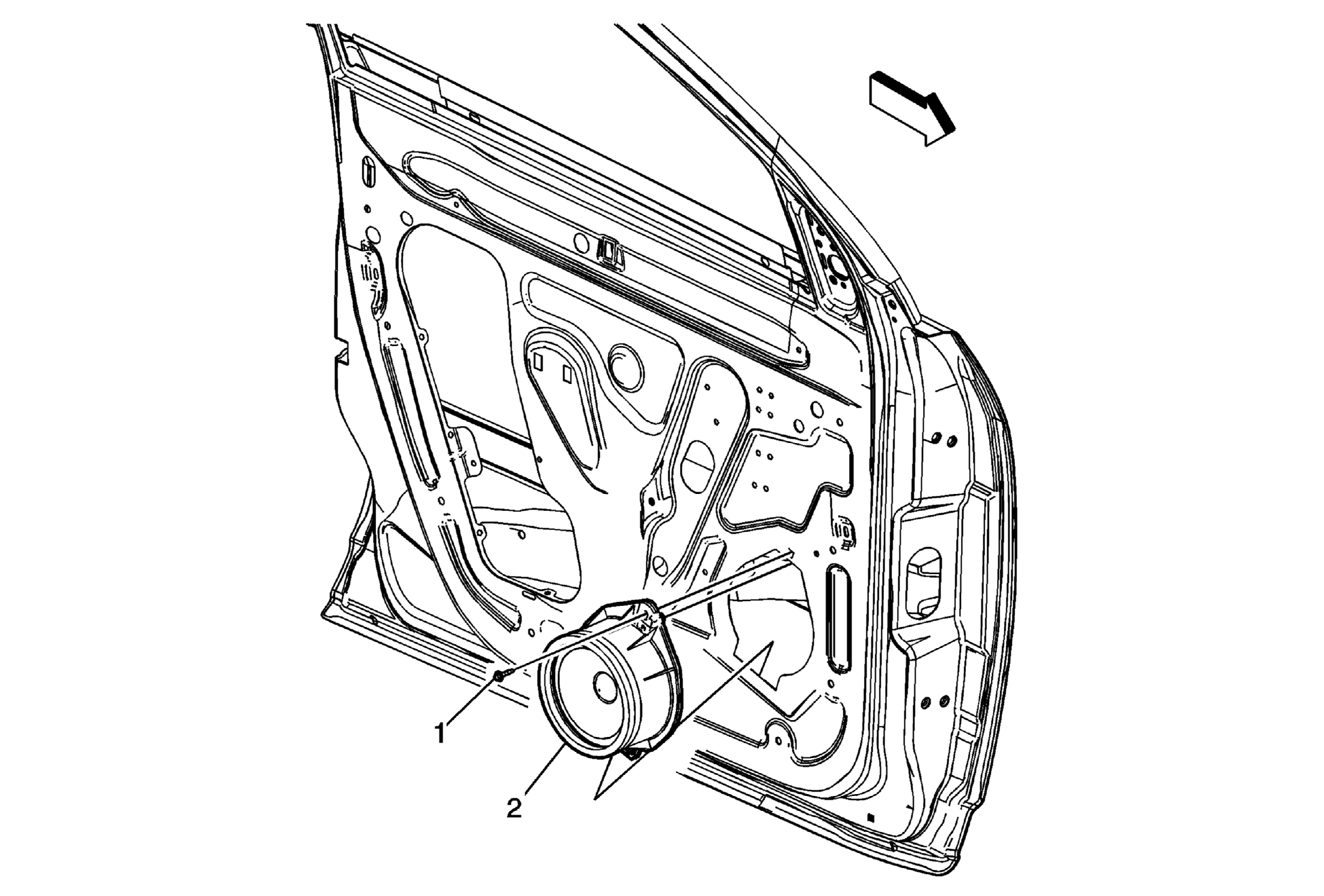

Fig 1: Identifying Radio Front Side Door Speaker

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Remove the front side door trim panel. Refer to Front Side Door Trim Panel Replacement - Left Side (Traverse) , Front Side Door Trim Panel Replacement - Left Side (Acadia) , Front Side Door Trim Panel Replacement - Left Side (Enclave) , or Front Side Door Trim Panel Replacement - Right Side (Acadia) , Front Side Door Trim Panel Replacement - Right Side (Enclave) , Front Side Door Trim Panel Replacement - Right Side (Traverse) .
1	Front Side Door Speaker Screw CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Side Door Speaker Procedure Disconnect the electrical connectors.
