Component Locations

Instrument Panel/Center Console Component Views

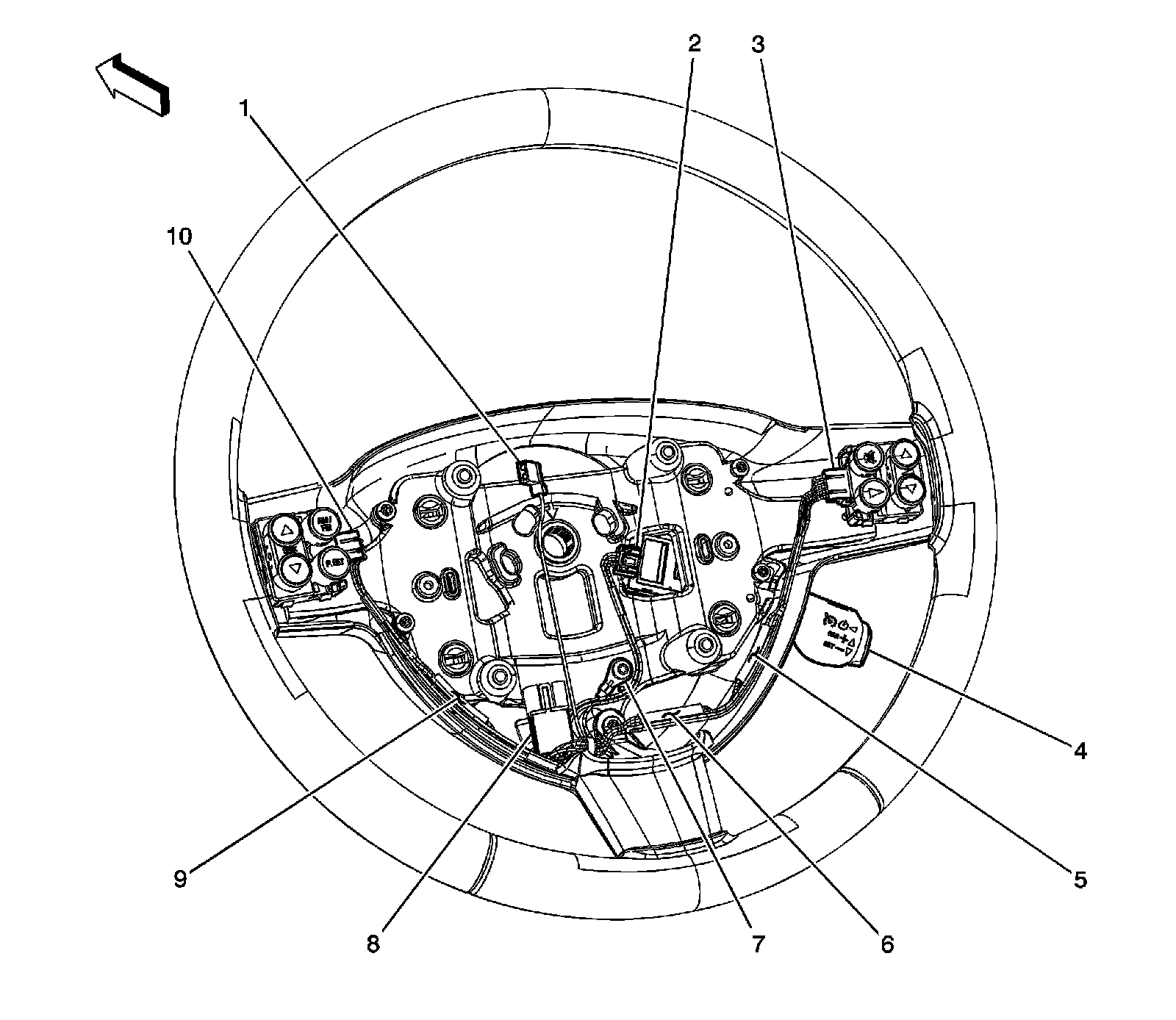

Steering Wheel Components




1 - Horn Switch Connector
2 - Cruise Control Switch Connector (K34)
3 - Steering Wheel Control Switch - Right (UK3)
4 - Cruise Control Switch (K34)
5 - J293 (UK3)
6 - J297 (UK3)
7 - Steering Wheel Ground
8 - X279
9 - J295 (UK3)
10 - Steering Wheel Control Switch - Left (UK3)
