Electronic Brake Control Module (EBCM) Connector

Ground Views

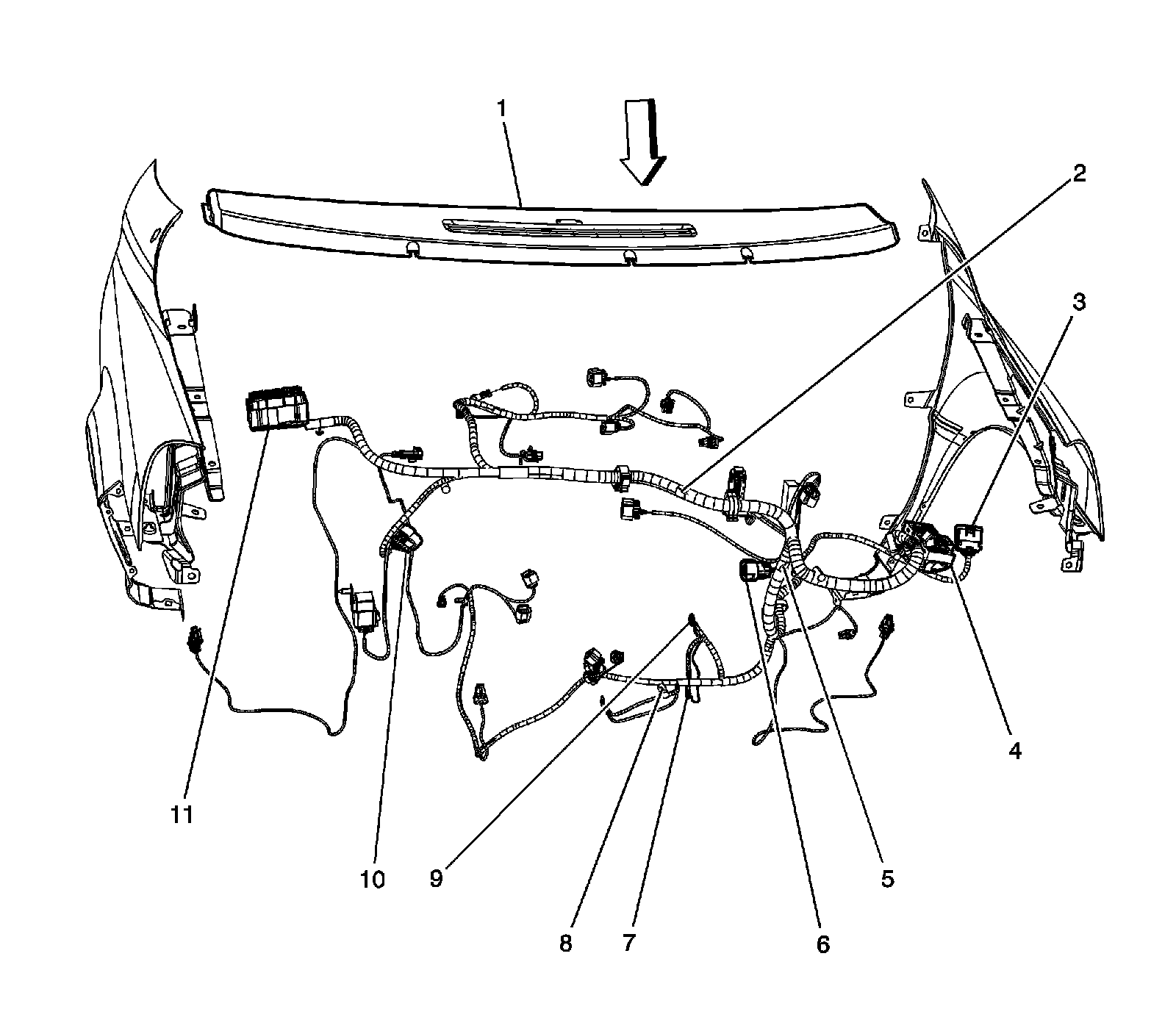

Engine Harness Components




1 - Upper Dash Panel
2 - J175
3 - X101 Instrument Panel Harness to Engine Harness
4 - Electronic Brake Control Module (EBCM) Connector
5 - J155
6 - X175 Engine Harness to Transmission Harness
7 - G113
8 - J135
9 - G115
10 - X102 Engine Harness to Fuel Injector Harness
11 - Fuse Block - Underhood X1
