Body Control Module (BCM) X1

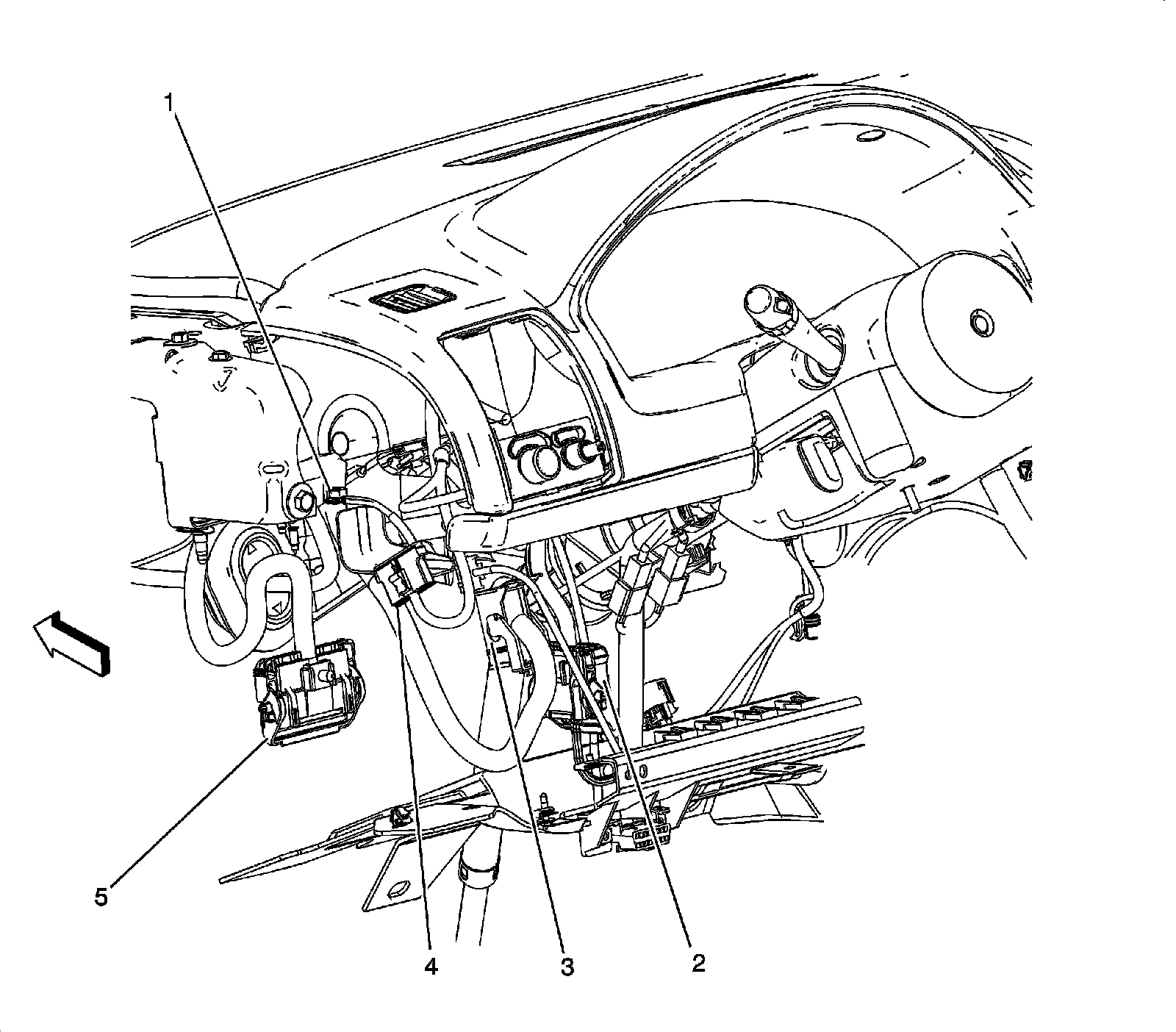

Harness Routing Views

Left Side of I/P




1 - G201
2 - X201 Steering Column Harness to Instrument Panel Harness
3 - Body Control Module (BCM) X1
4 - JX205
5 - X203 Body Harness to Instrument Panel Harness
