Components

Master Electrical Component List

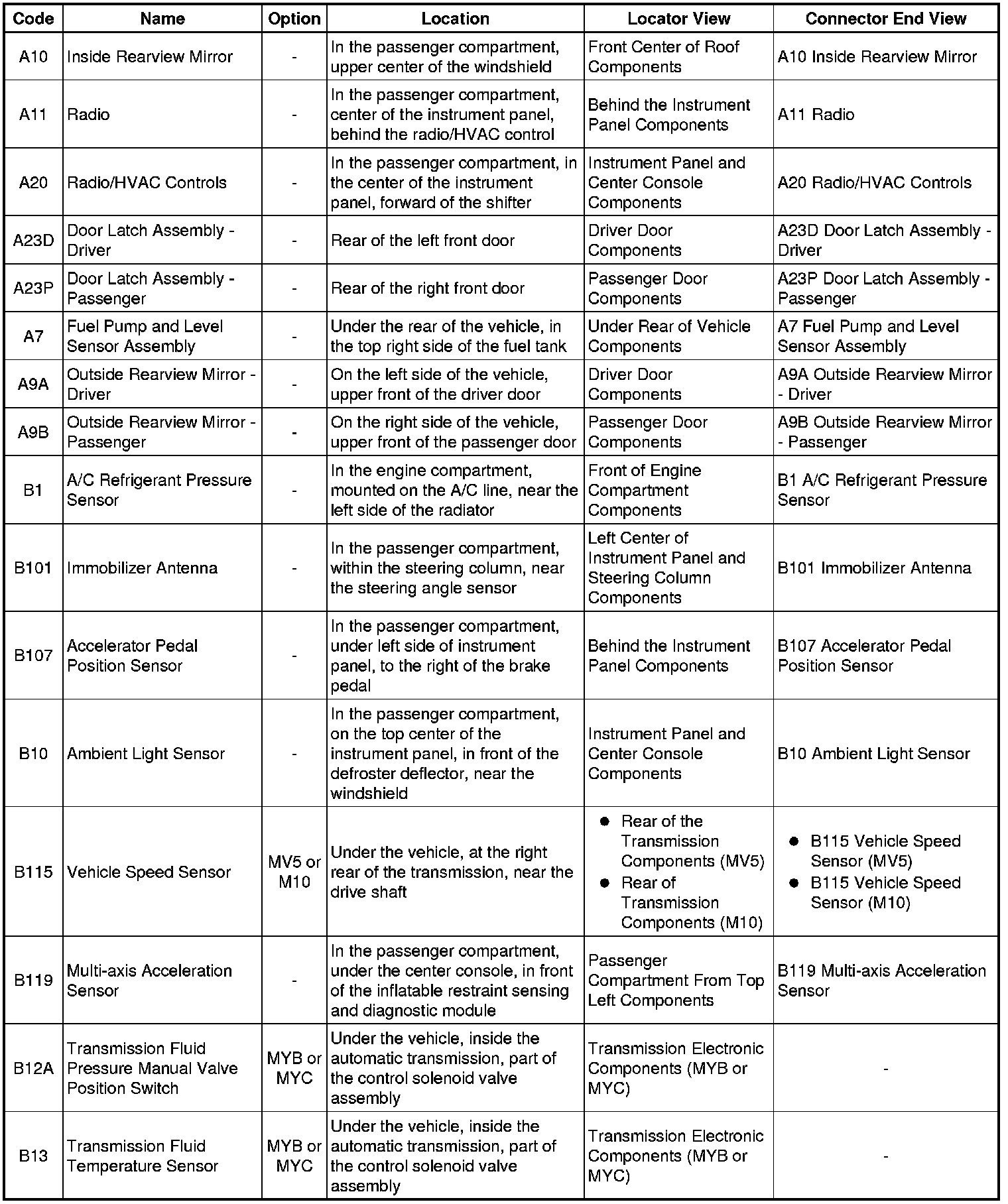

A10 - B13:

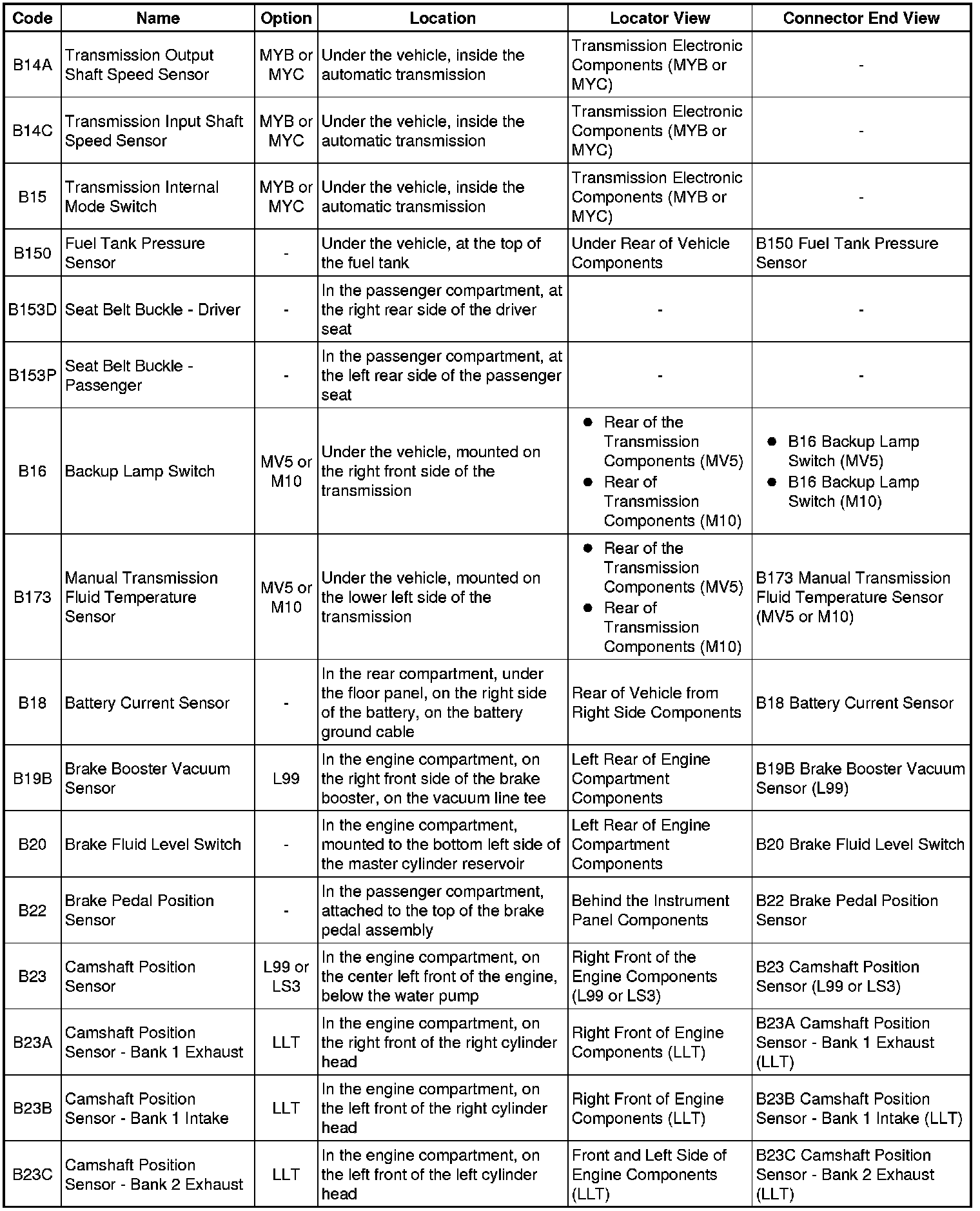

B14A - B23C:

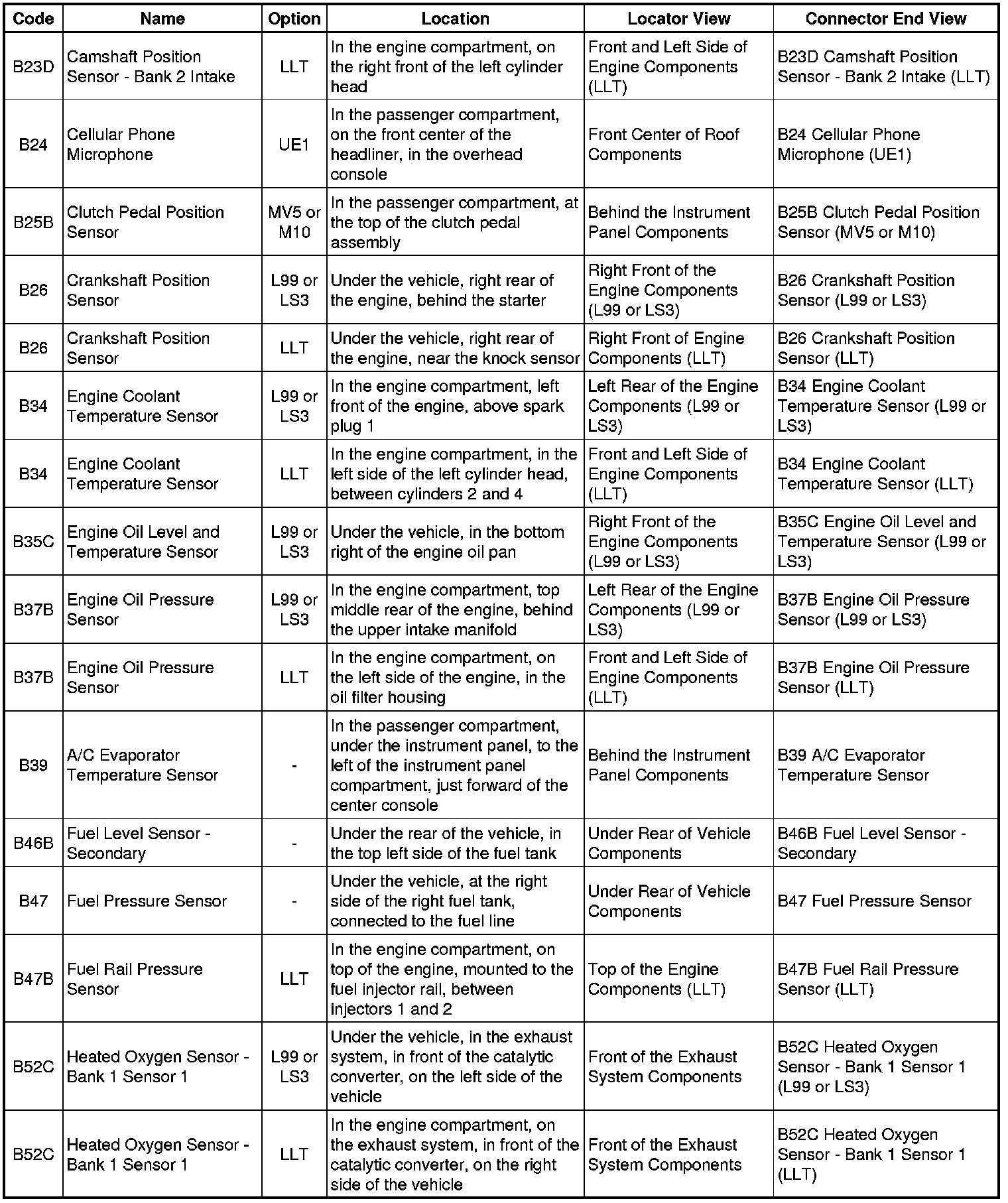

B23D - B52C:

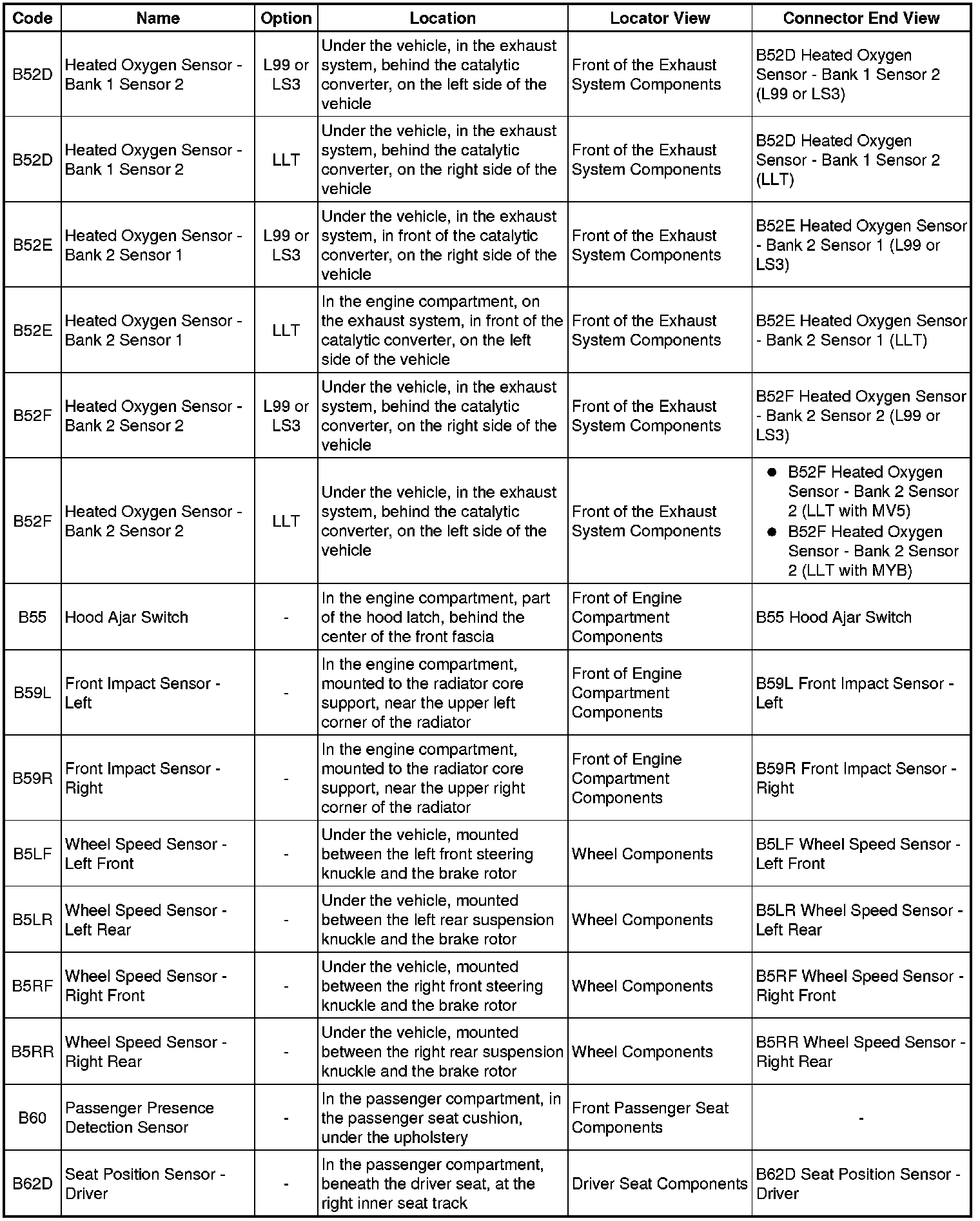

B52D - B62D:

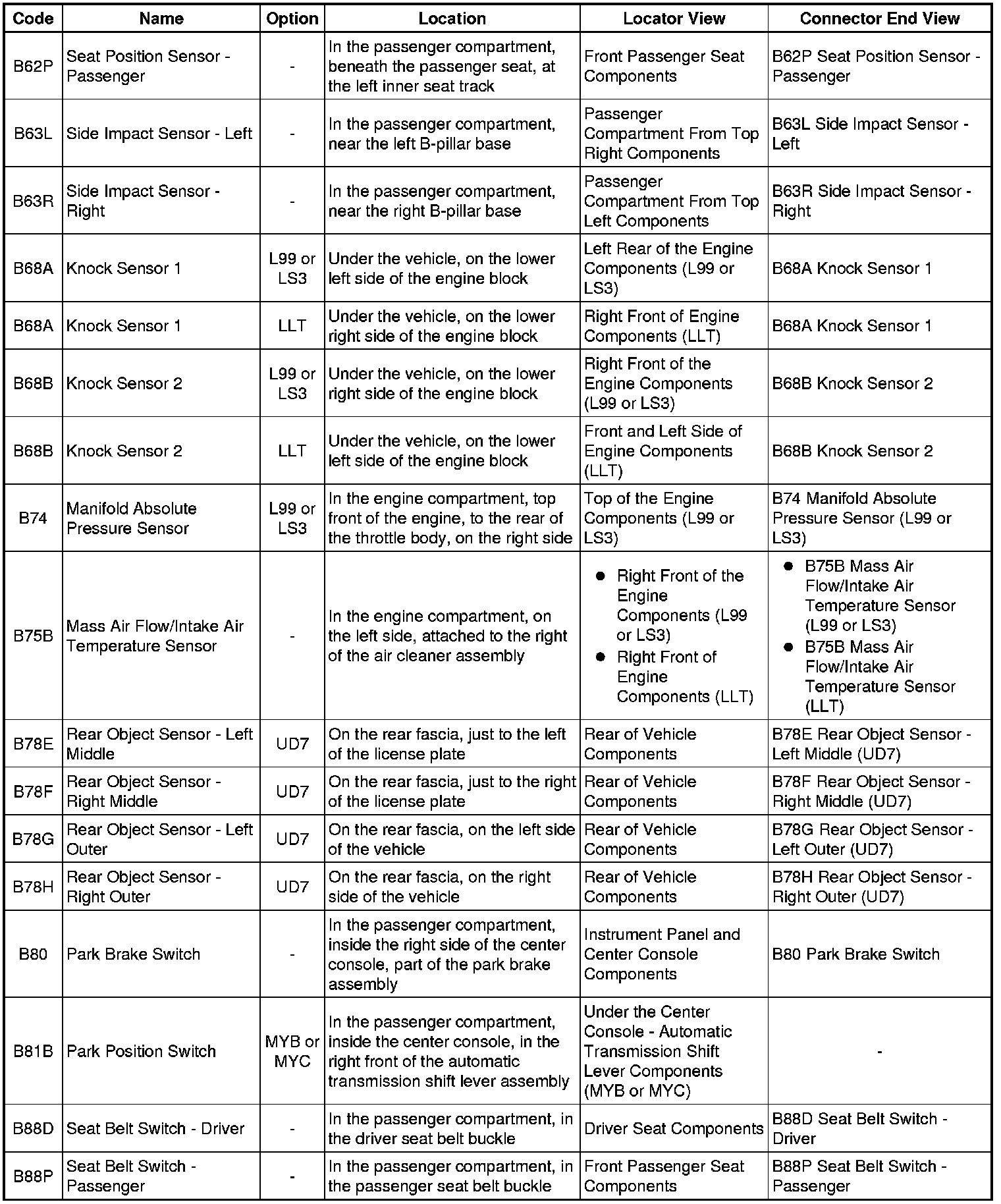

B62P - B88P:

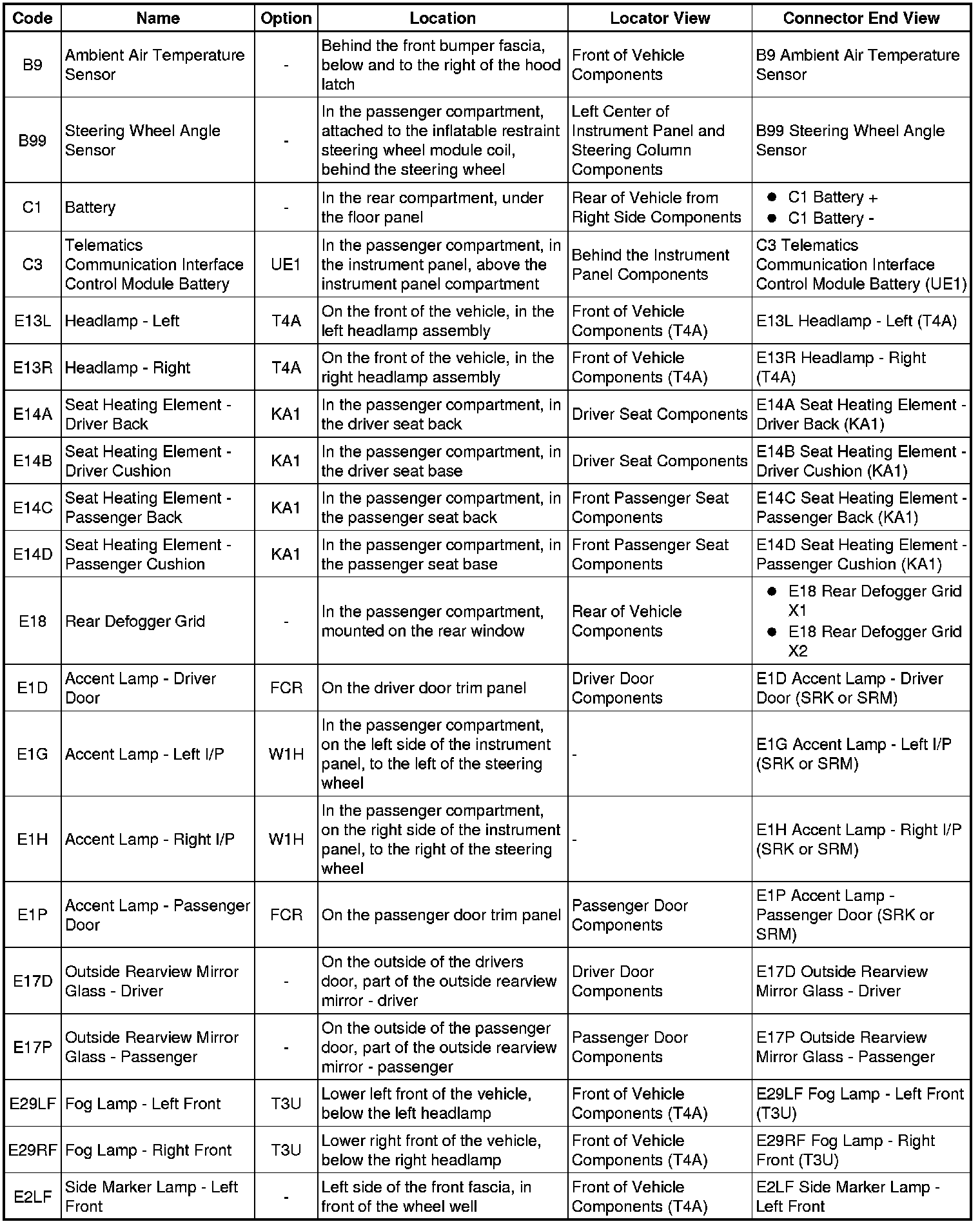

B9 - E2LF:

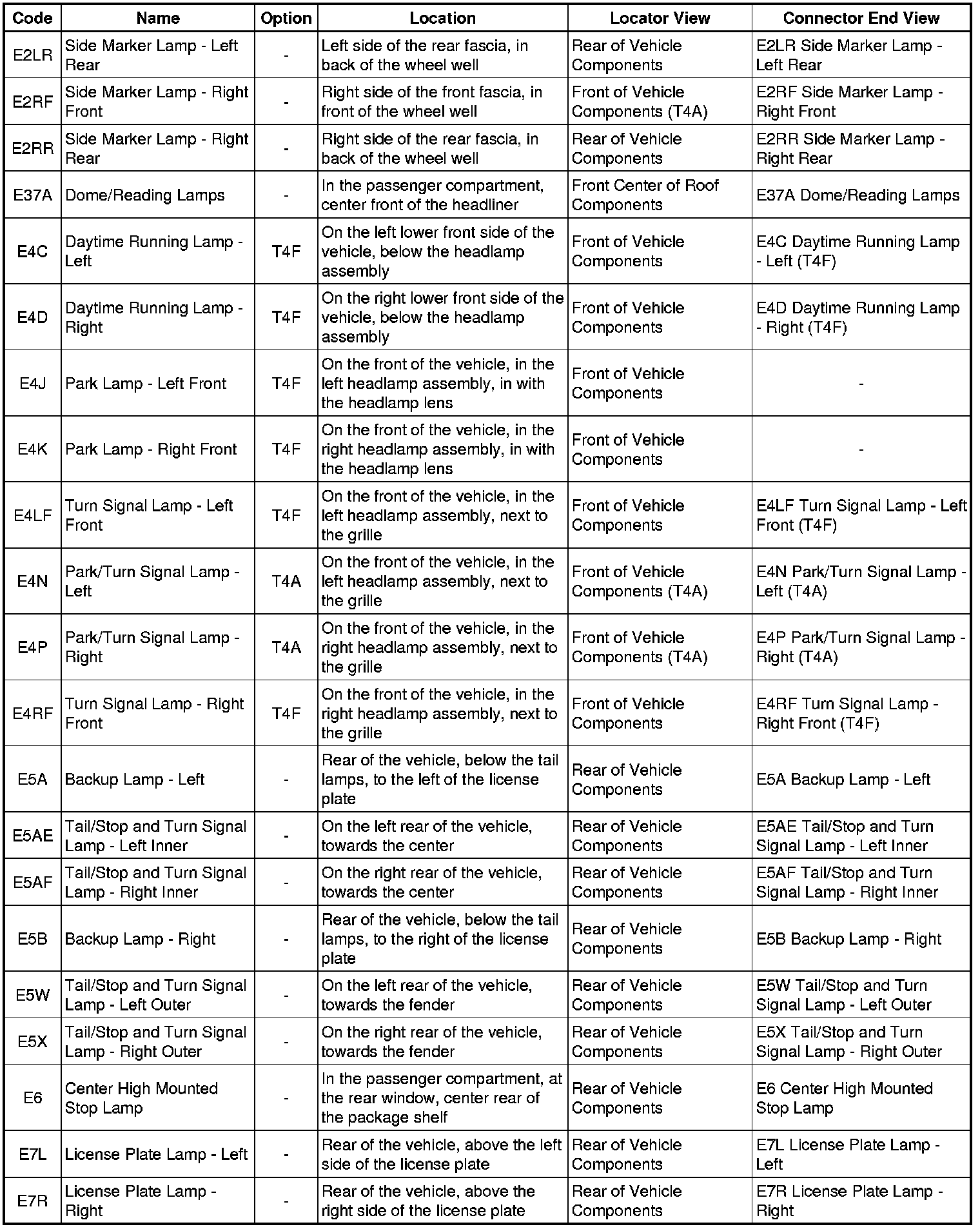

E2RL - E7R:

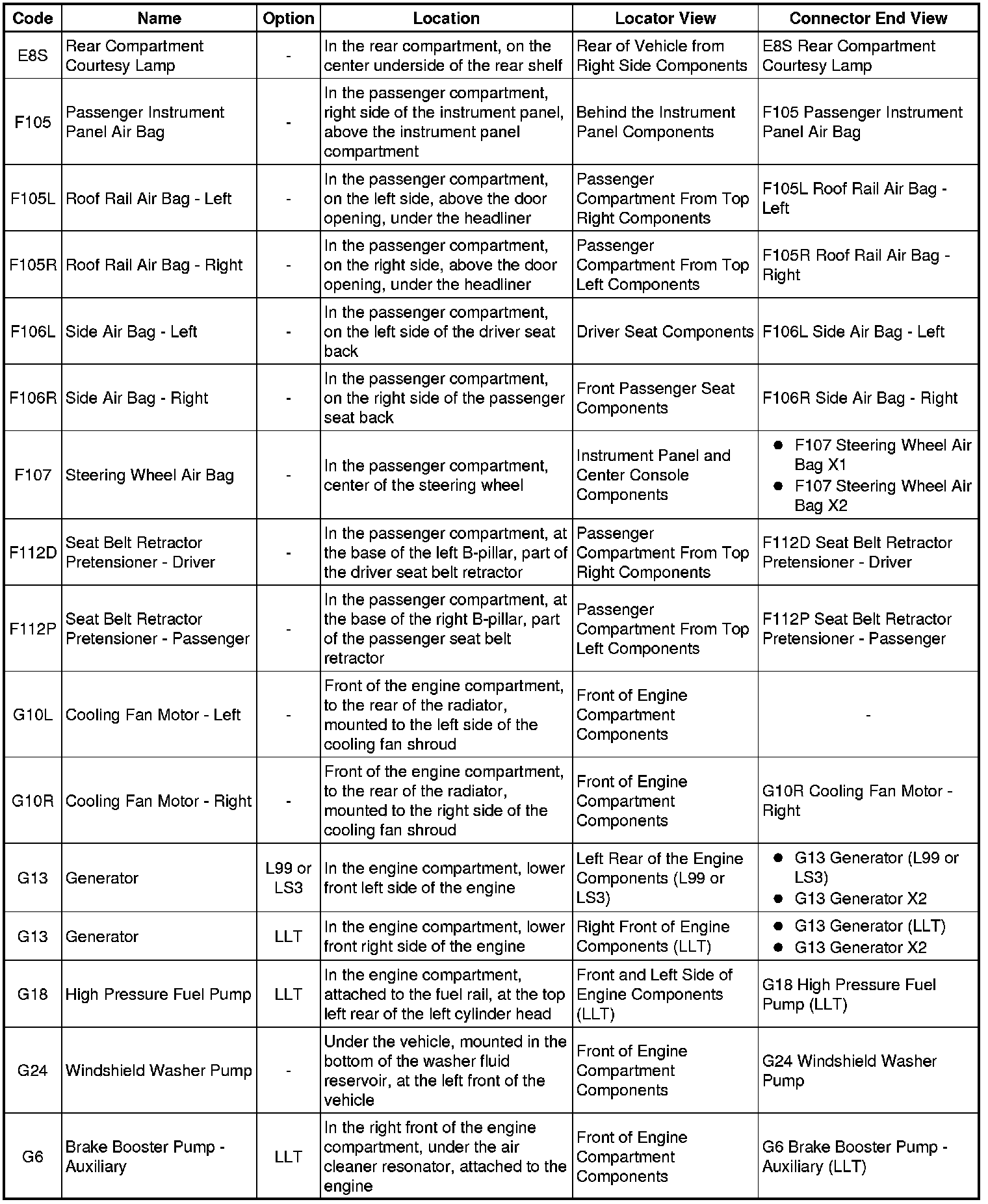

E8S - G6:

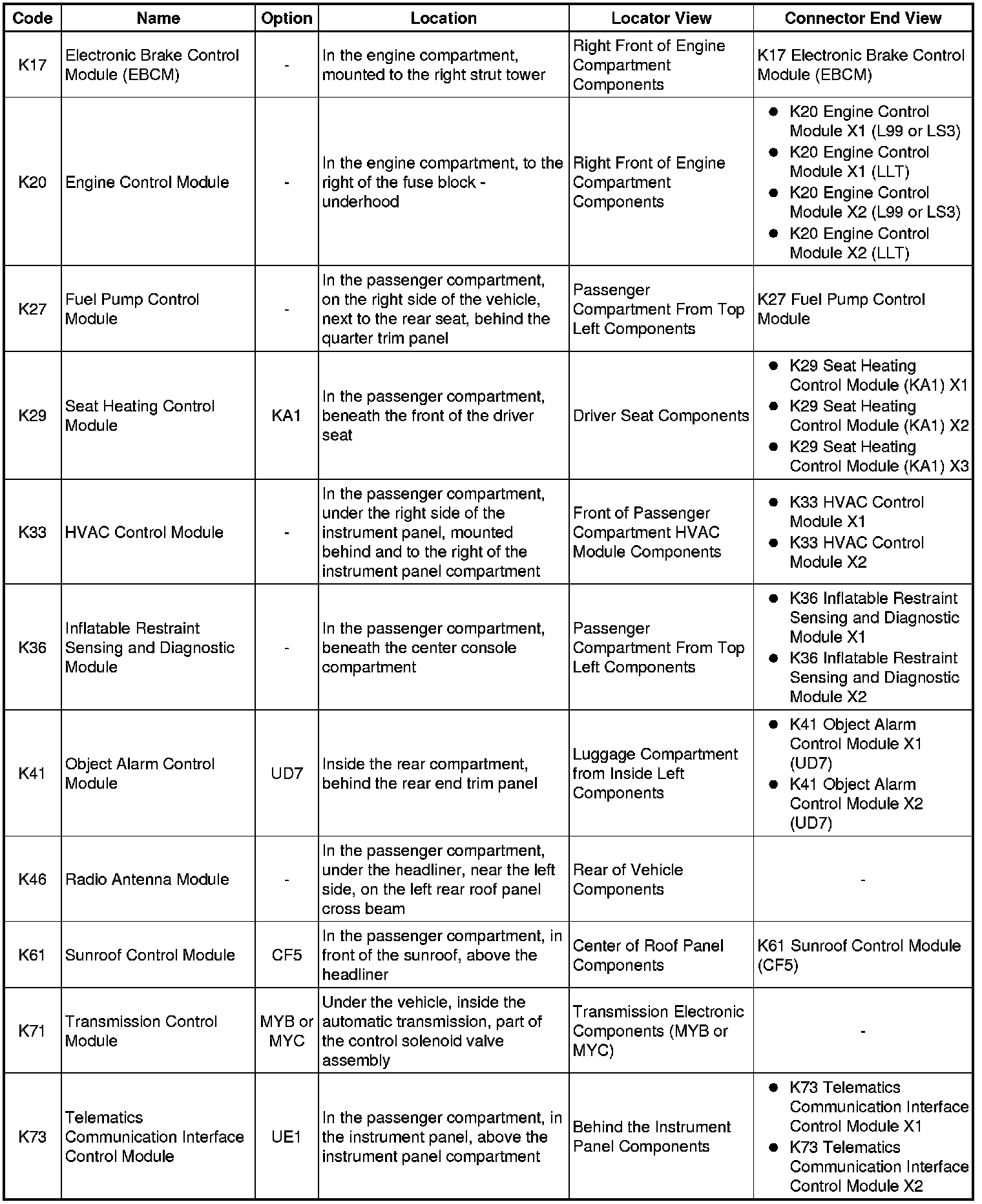

K17 - K73:

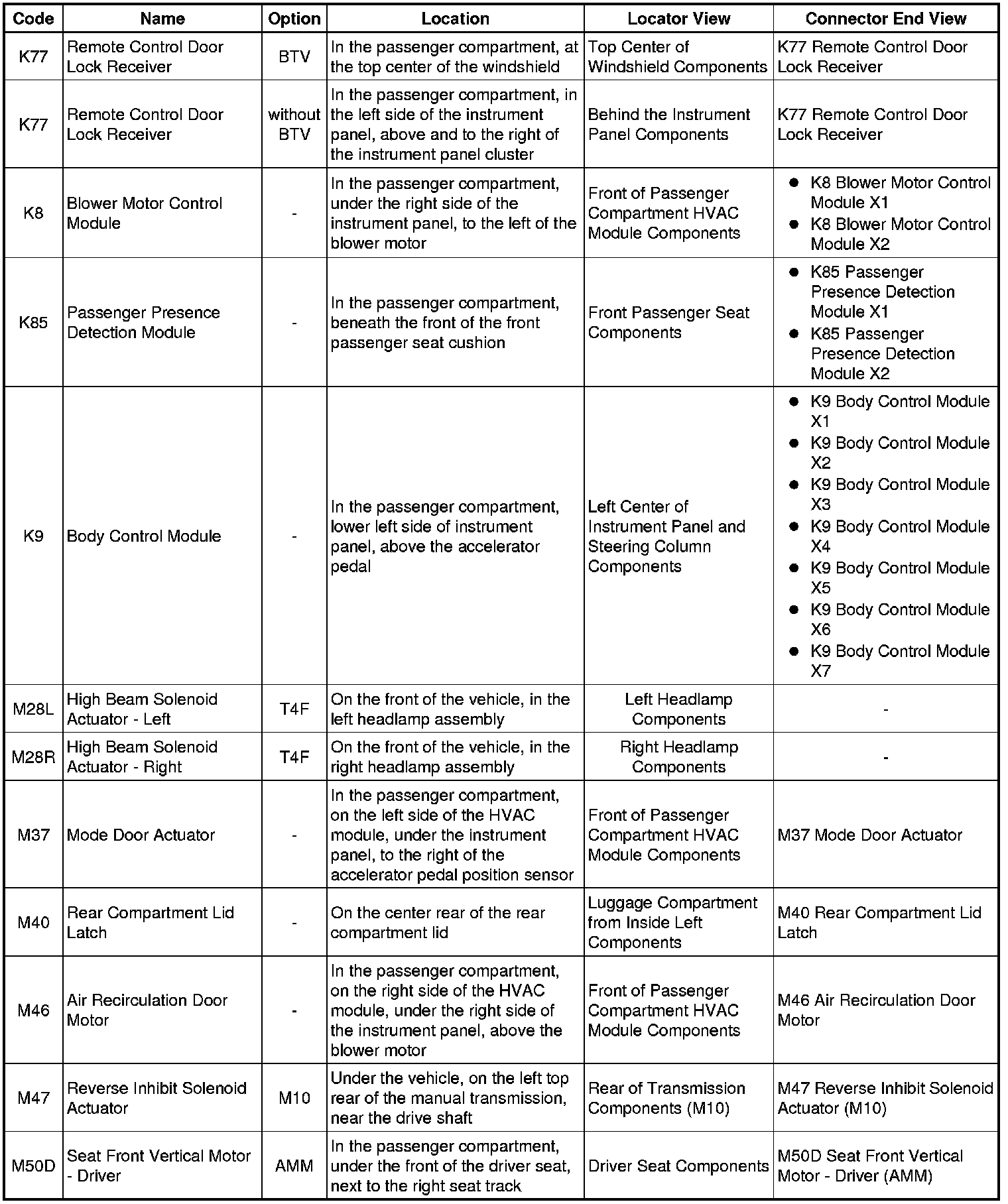

K77 - M50D:

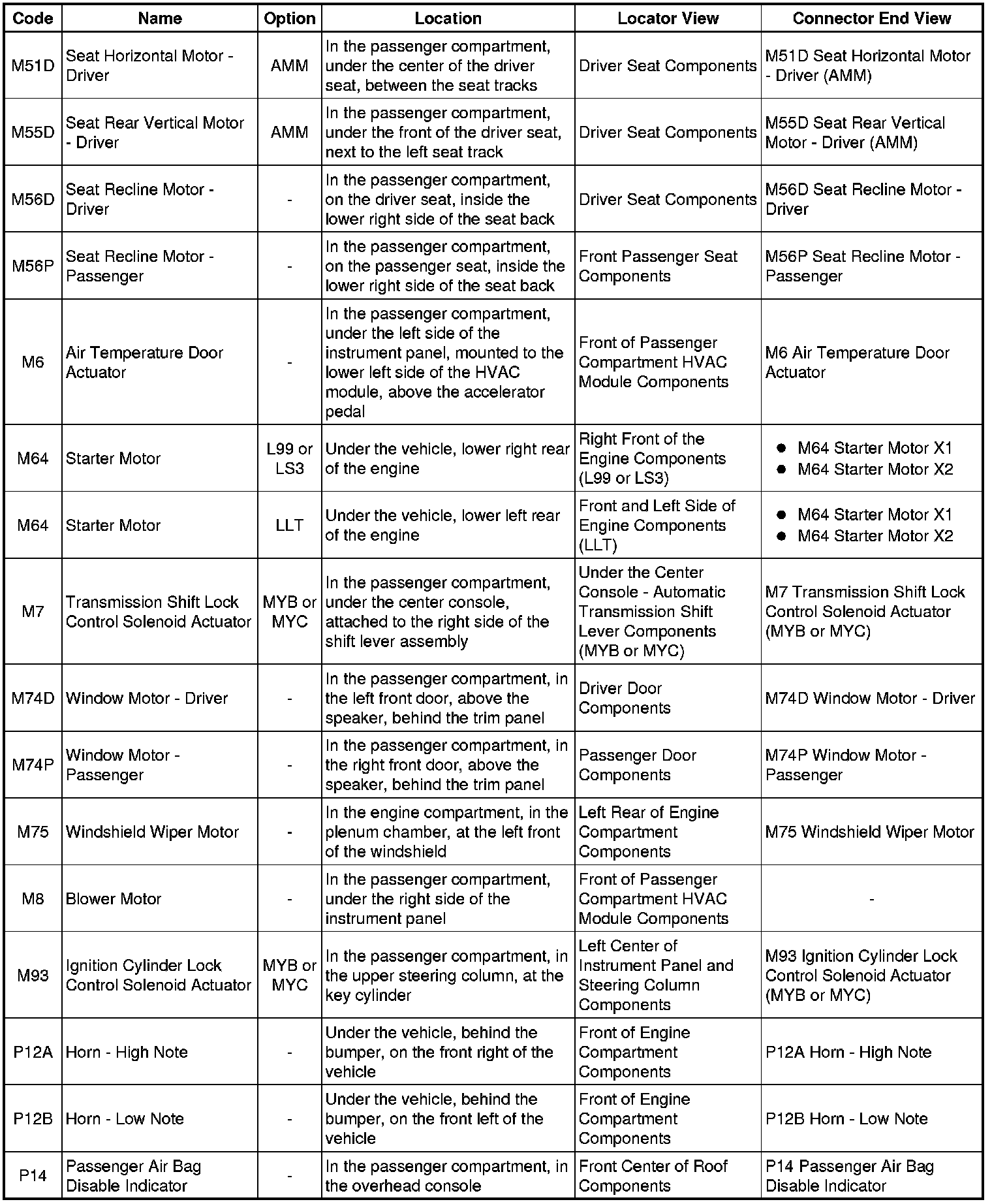

M51D - P14:

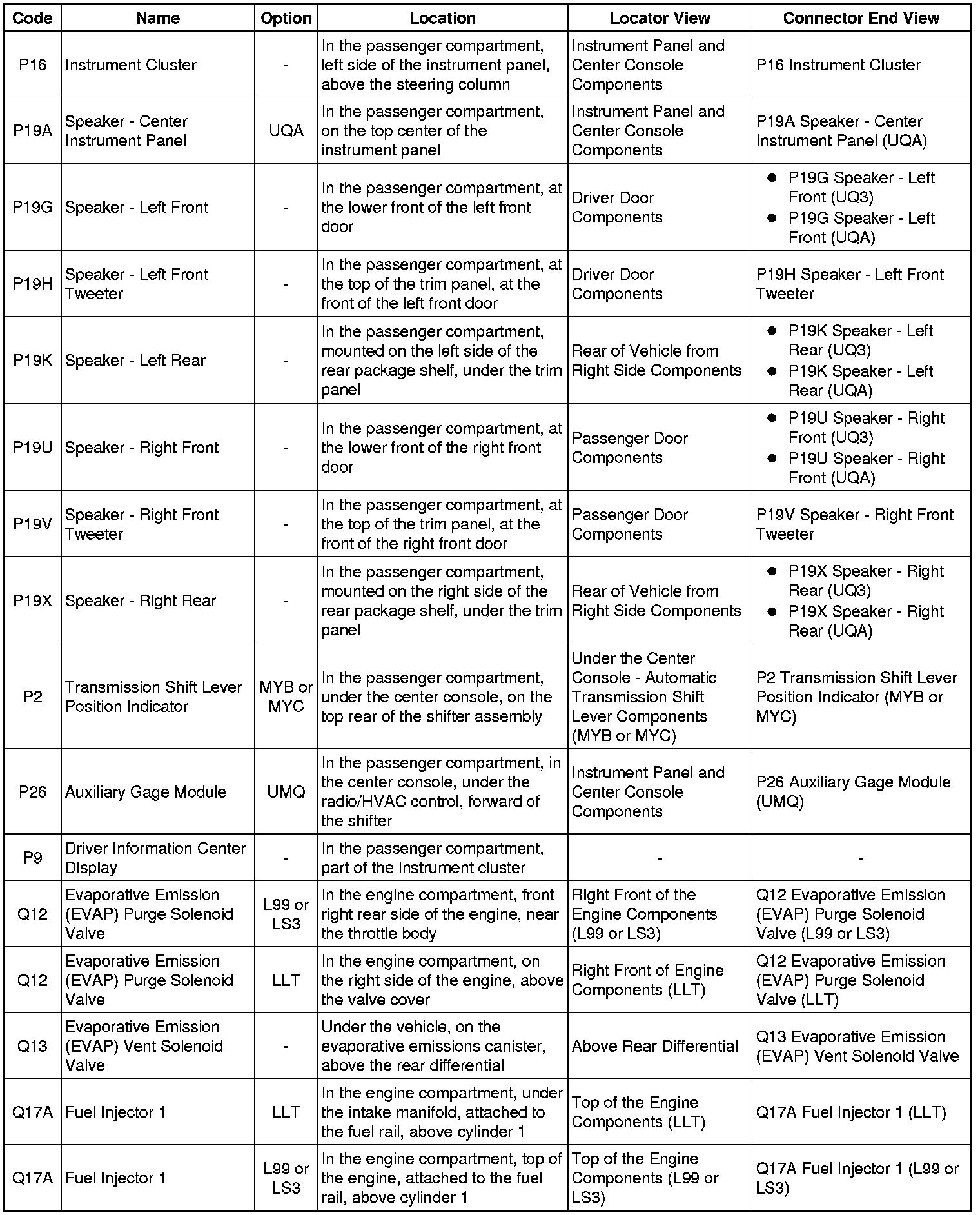

P16 - Q17A:

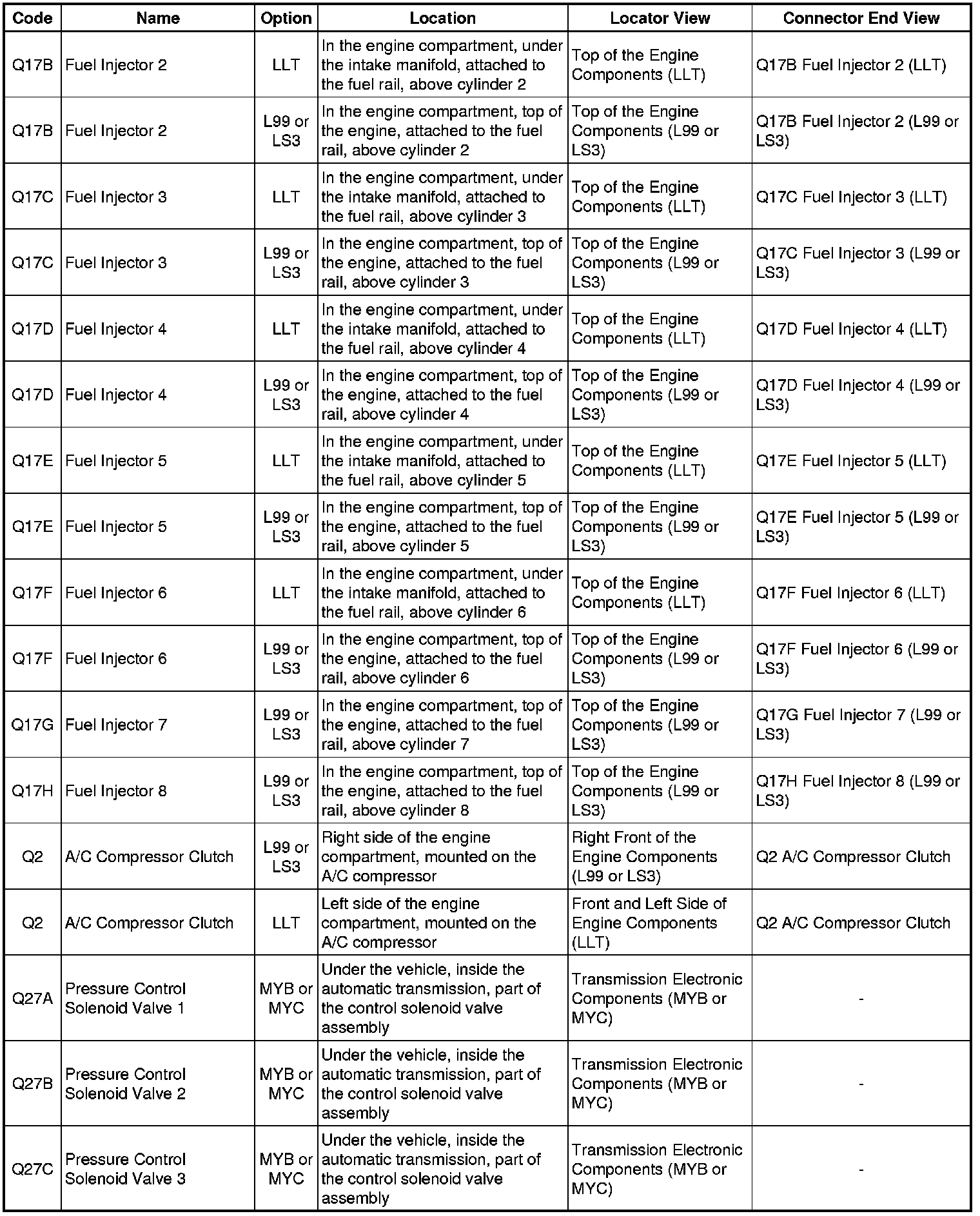

Q17B - Q27C:

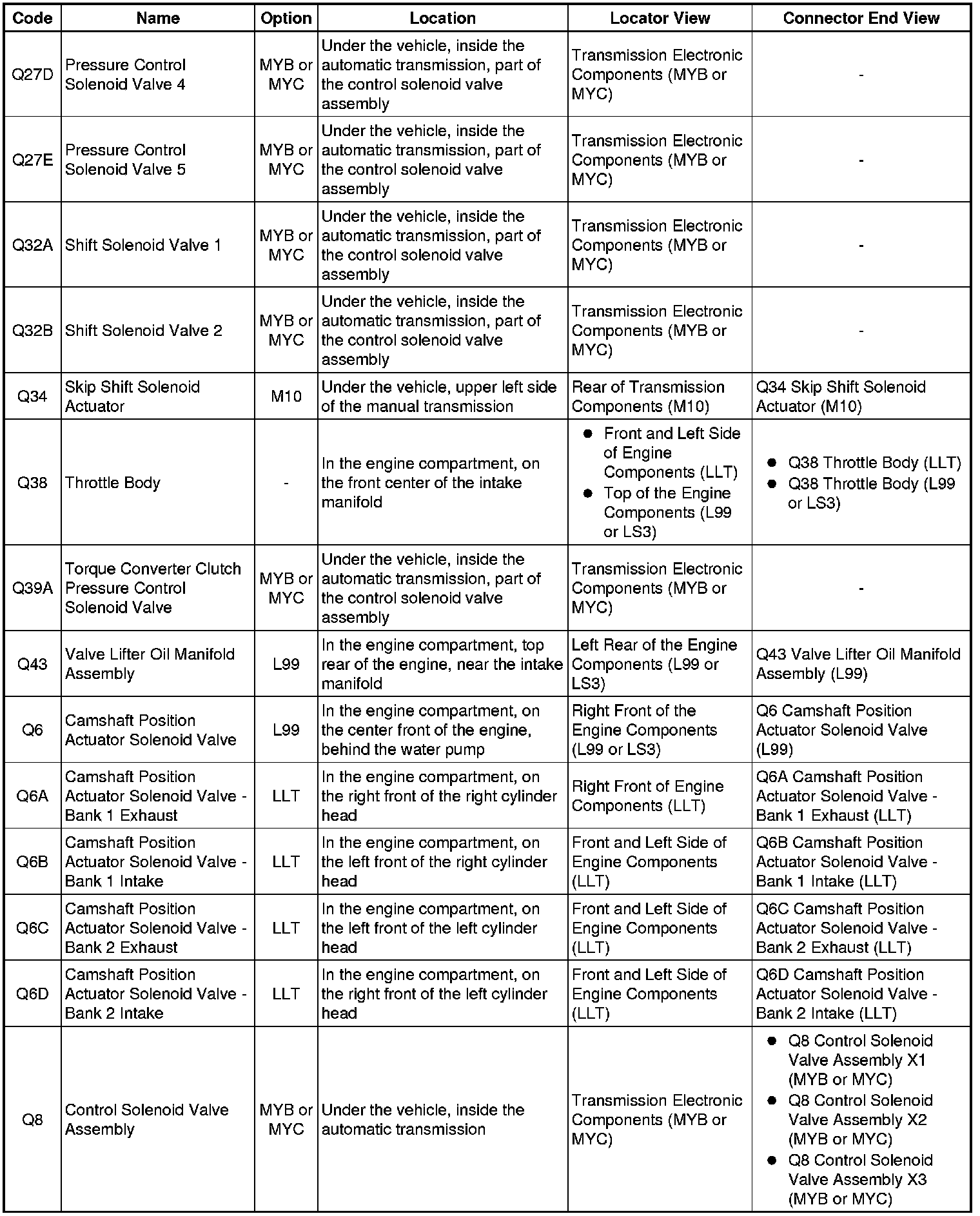

Q27D - Q8:

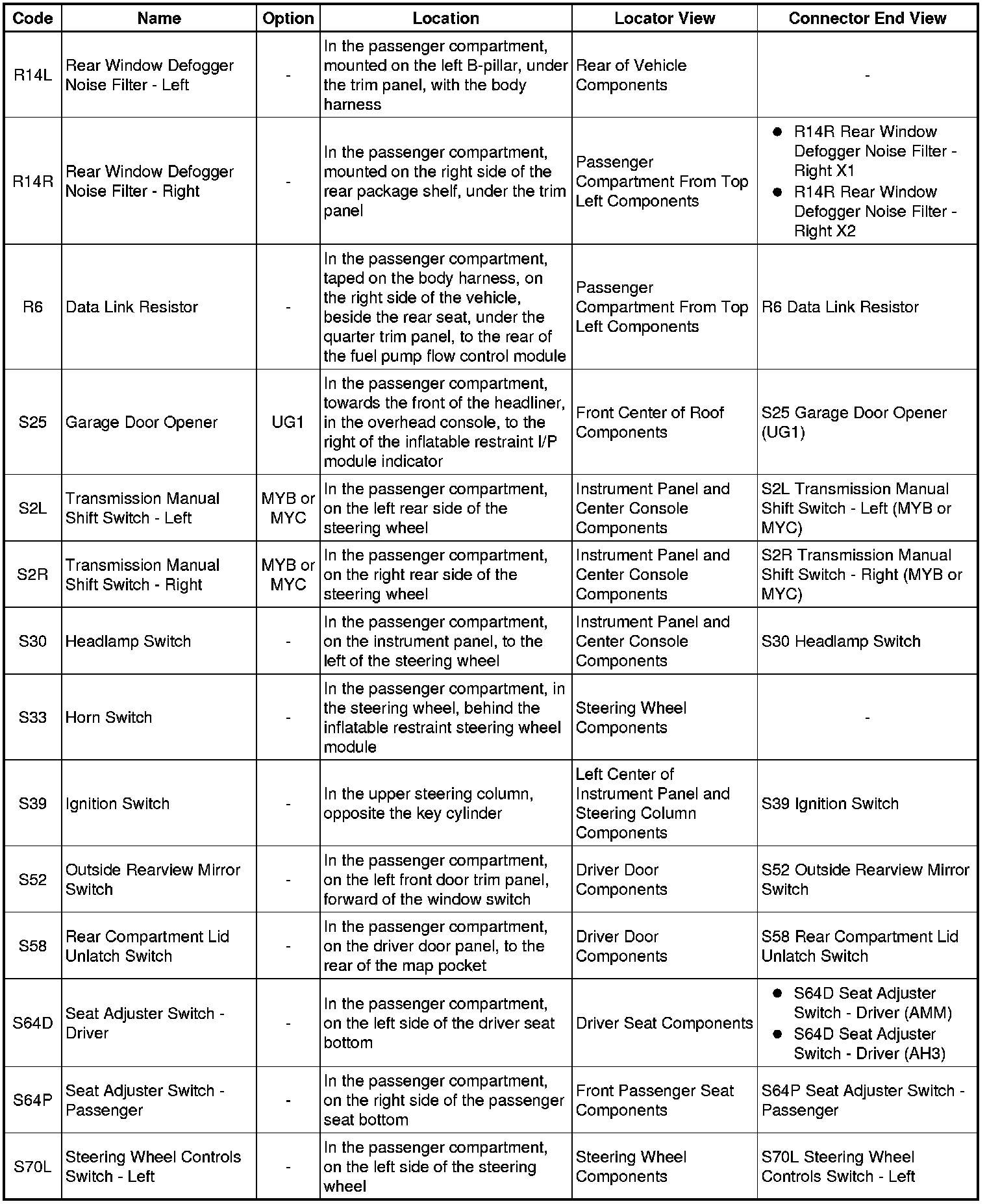

R14L - S70L:

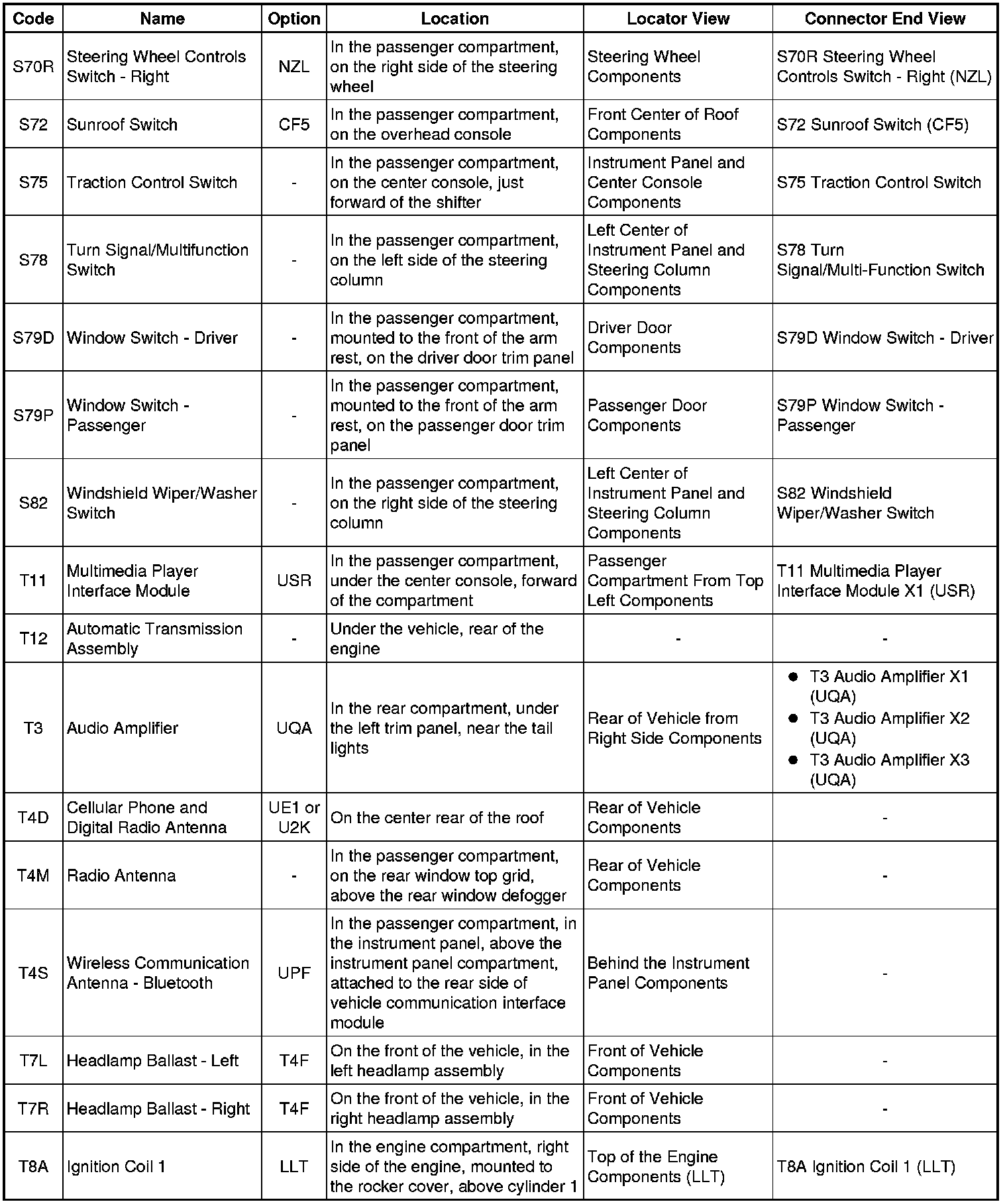

S70R - T8A:

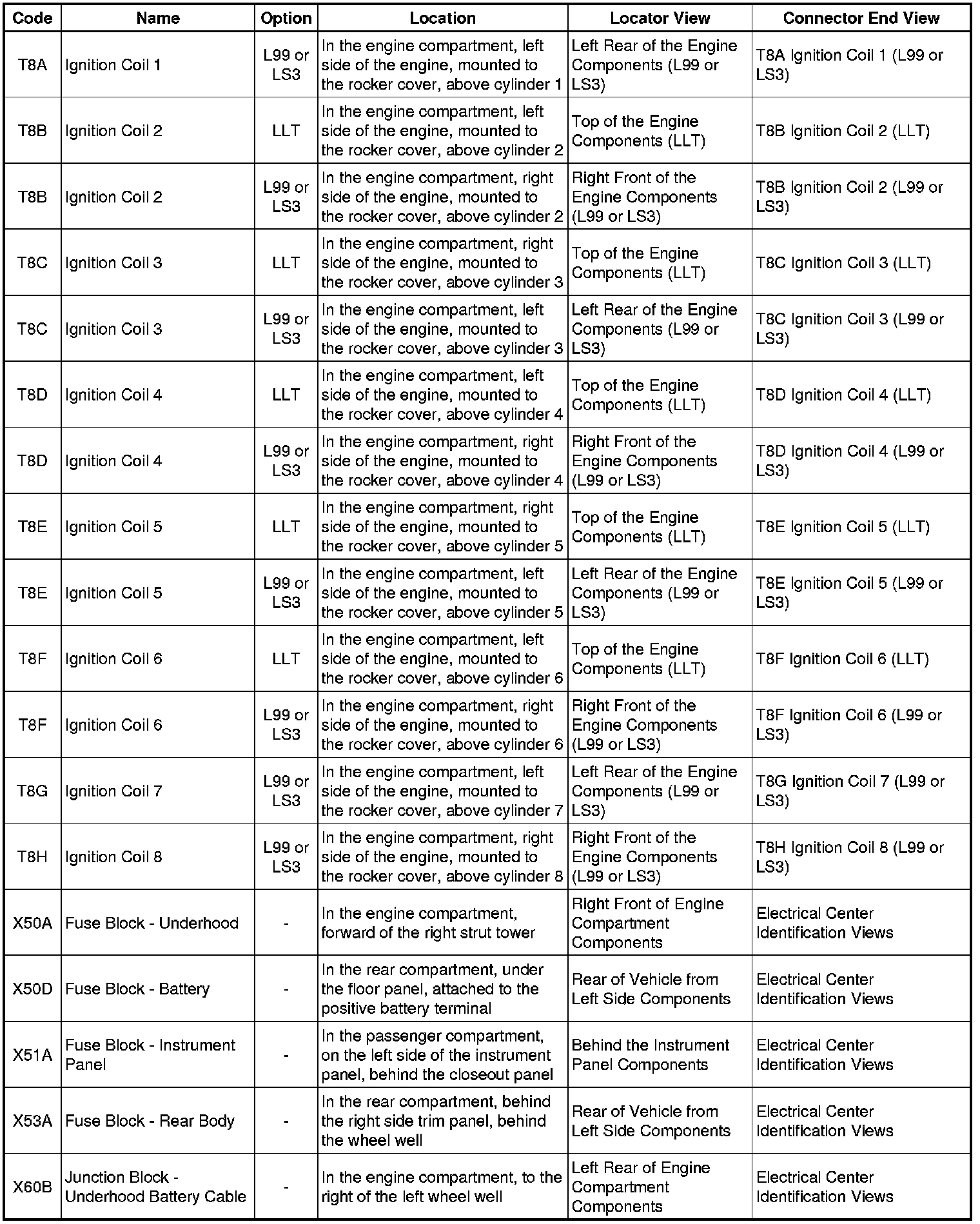

T8A - X60B:
