Antilock Brake System Schematics

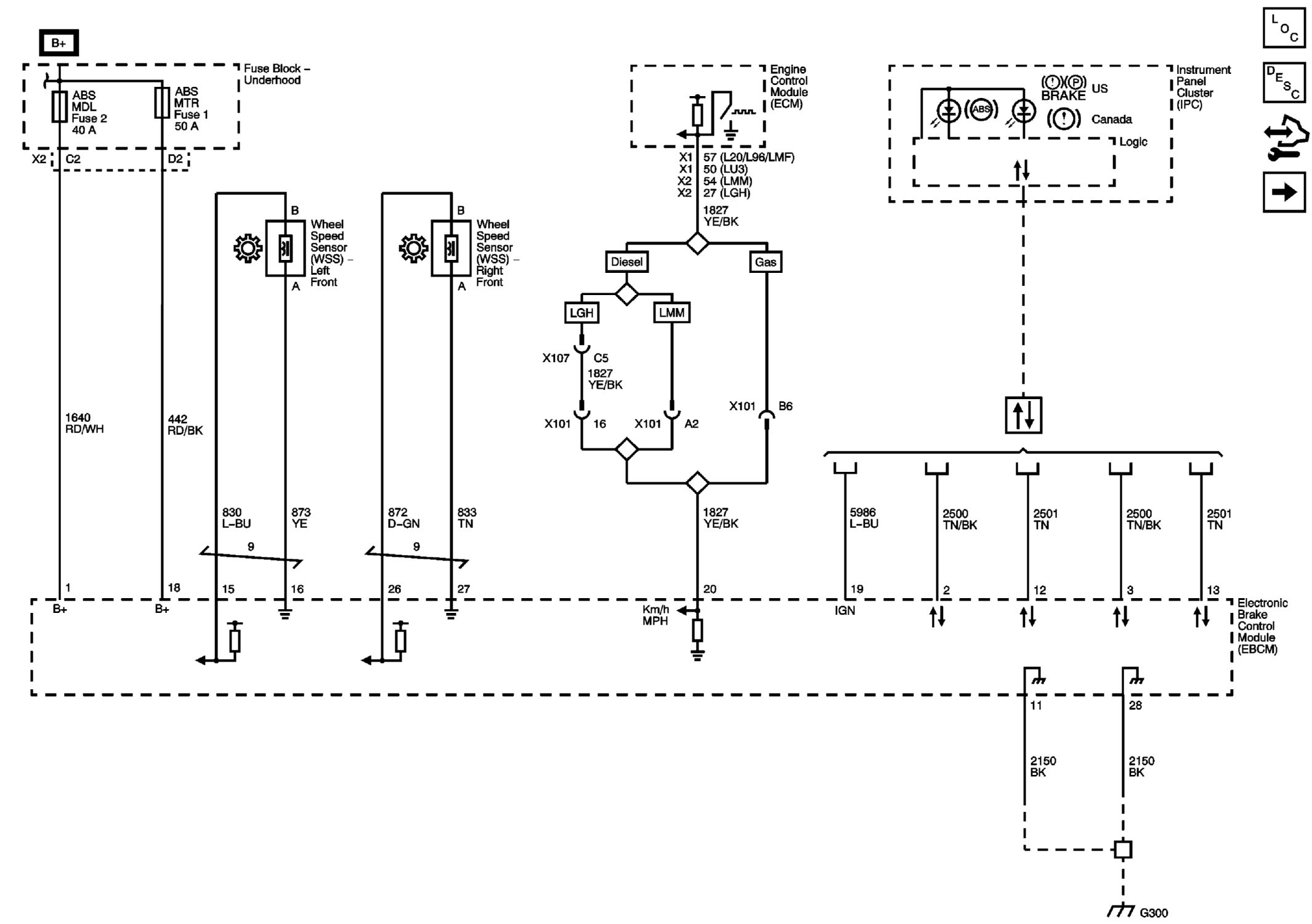

Fig 1: Power, Ground, Serial Data, Speed Signals & Indicators Circuit Schematic (JL9)
GM2247342Courtesy of GENERAL MOTORS CORP.

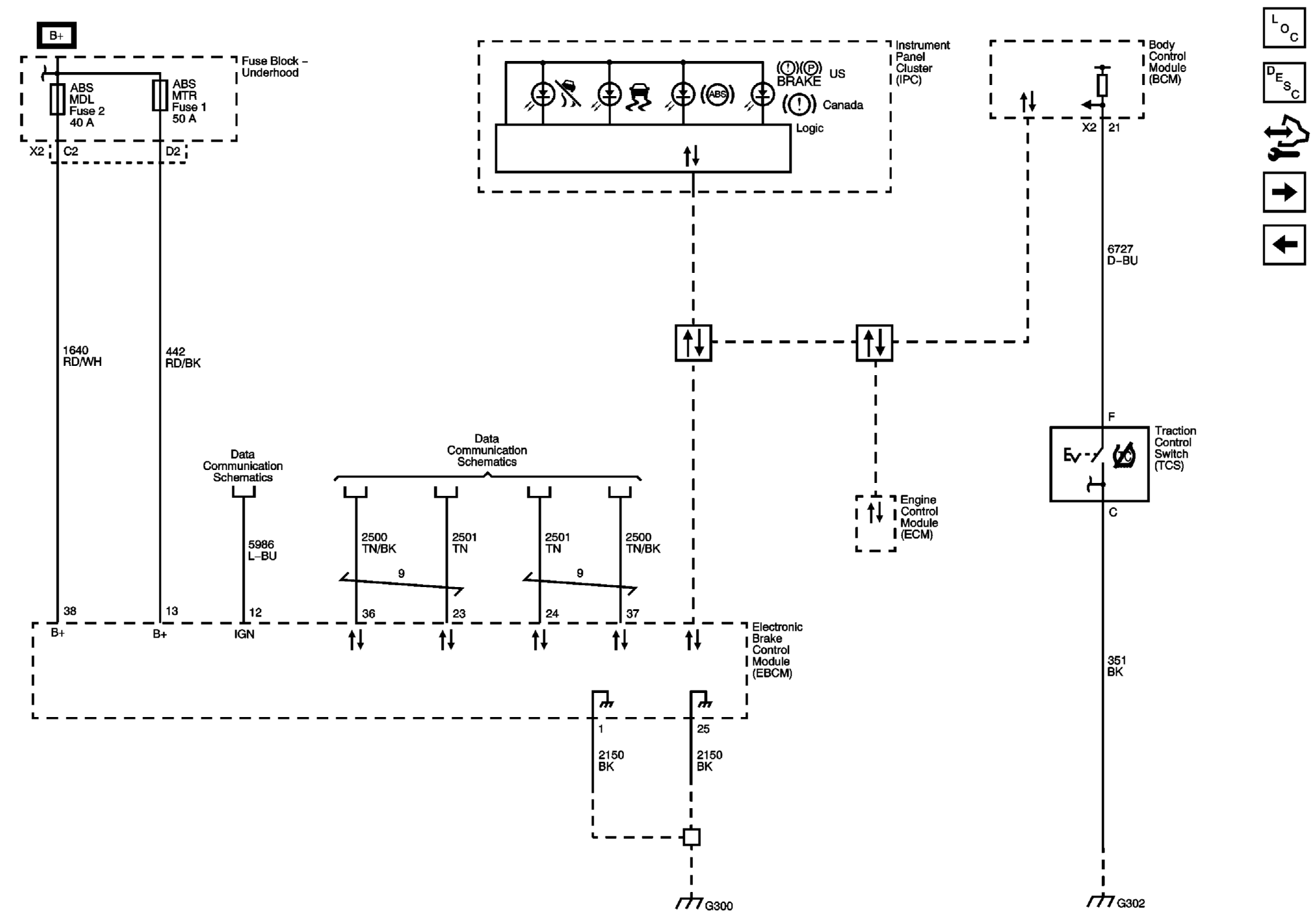

Fig 2: Power, Ground, Serial Data, Indicators & Traction Control Switch Circuit Schematic (JL4)
GM2247398Courtesy of GENERAL MOTORS CORP.

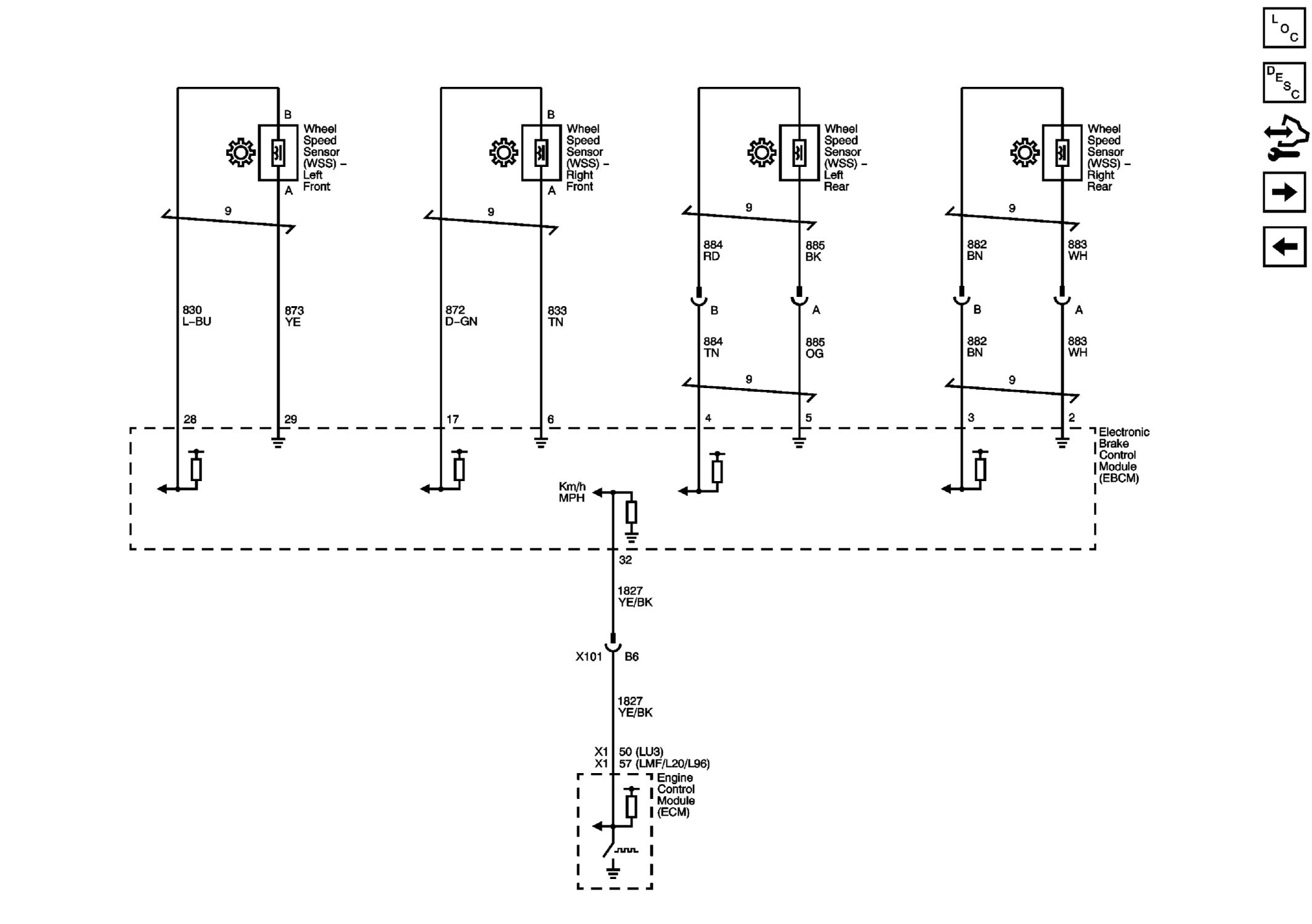

Fig 3: Speed Signals Circuit Schematic (JL4)
GM2247408Courtesy of GENERAL MOTORS CORP.

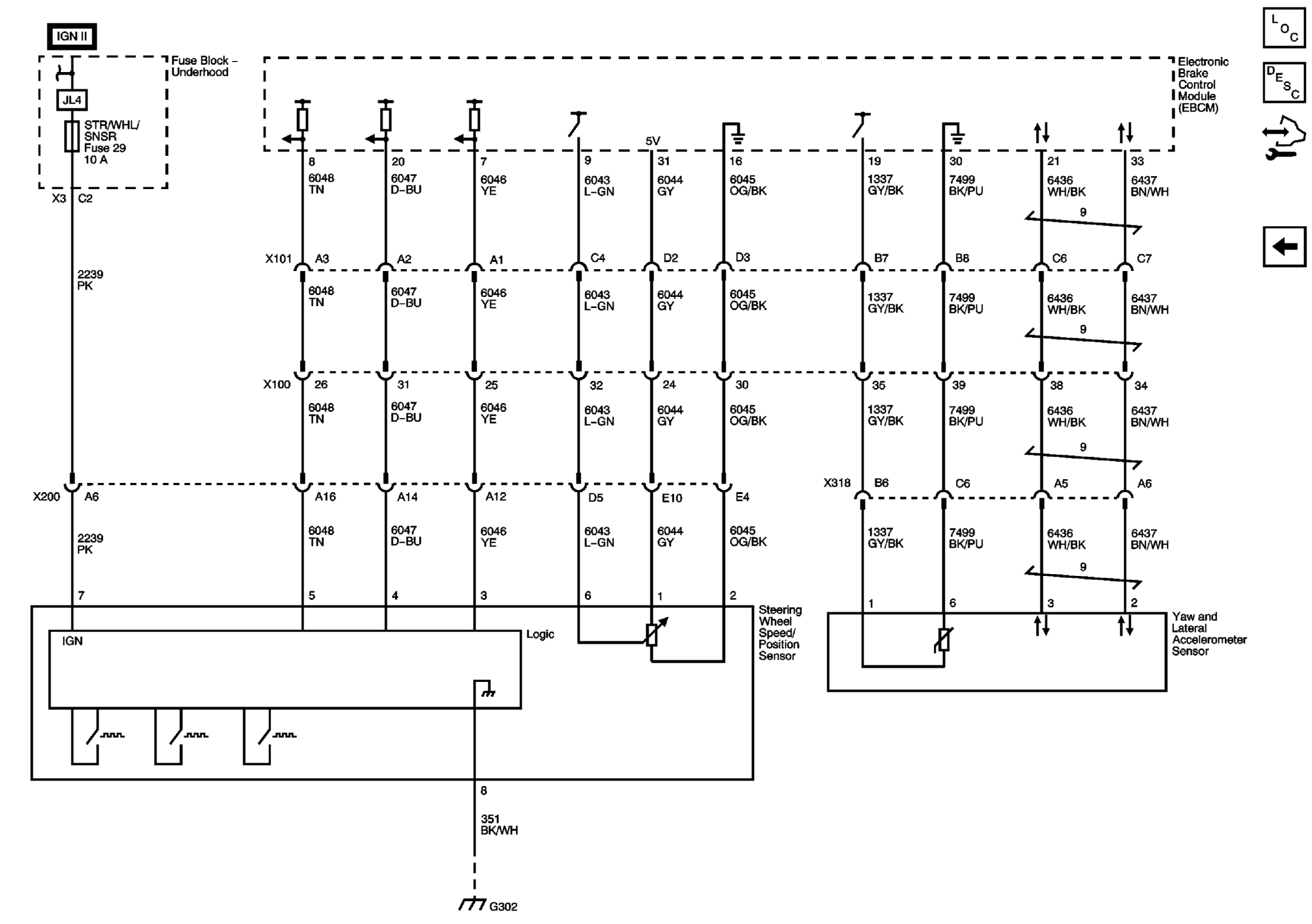

Fig 4: StabiliTrak Steering Wheel Position Inputs & Yaw & Lateral Accelerometer Sensor Circuit Schematic (JL4)
GM2247409Courtesy of GENERAL MOTORS CORP.
