Entertainment System Control Module




Component Connector End Views

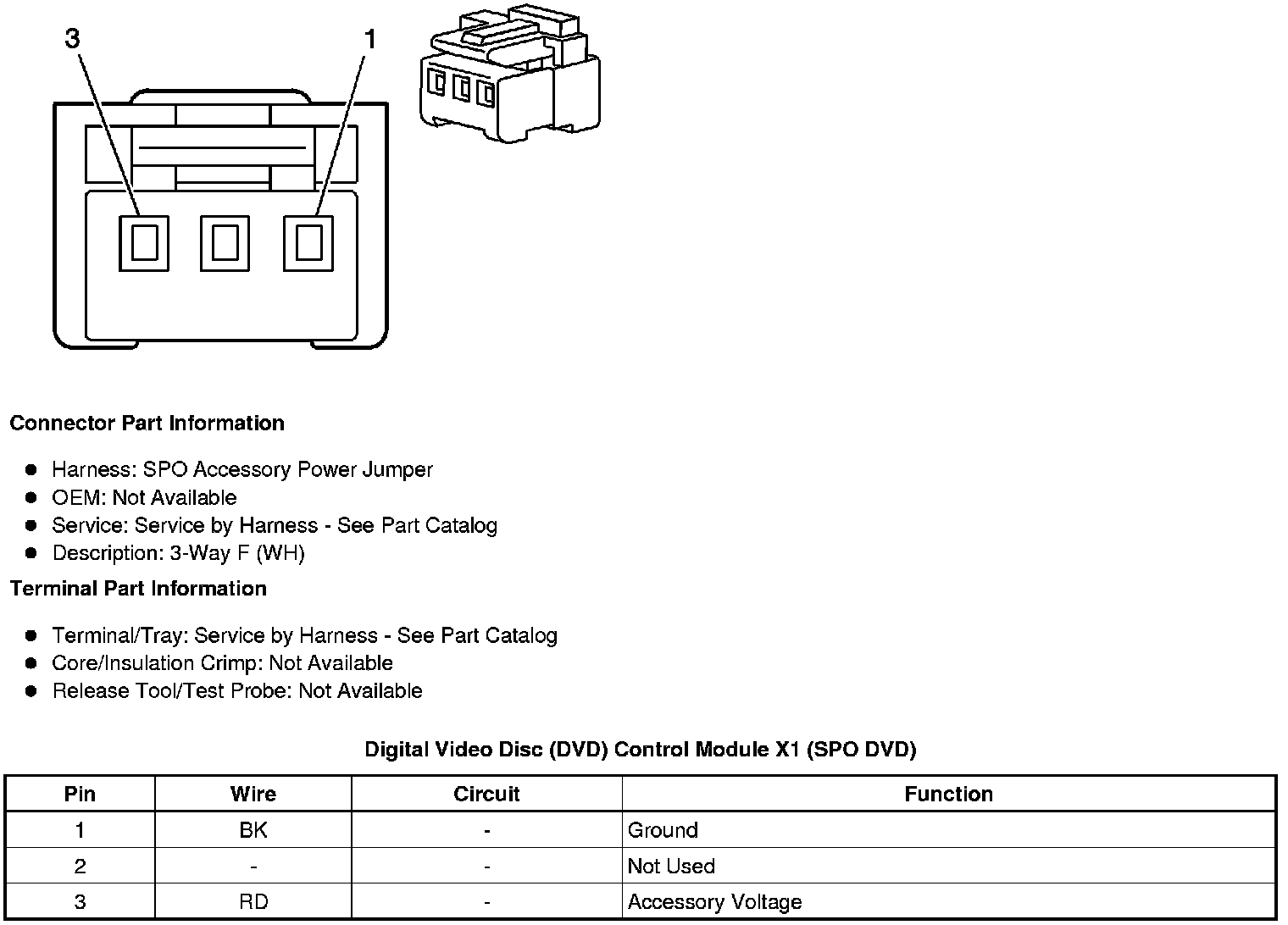

Digital Video Disc (DVD) Control Module X1 (SPO DVD)

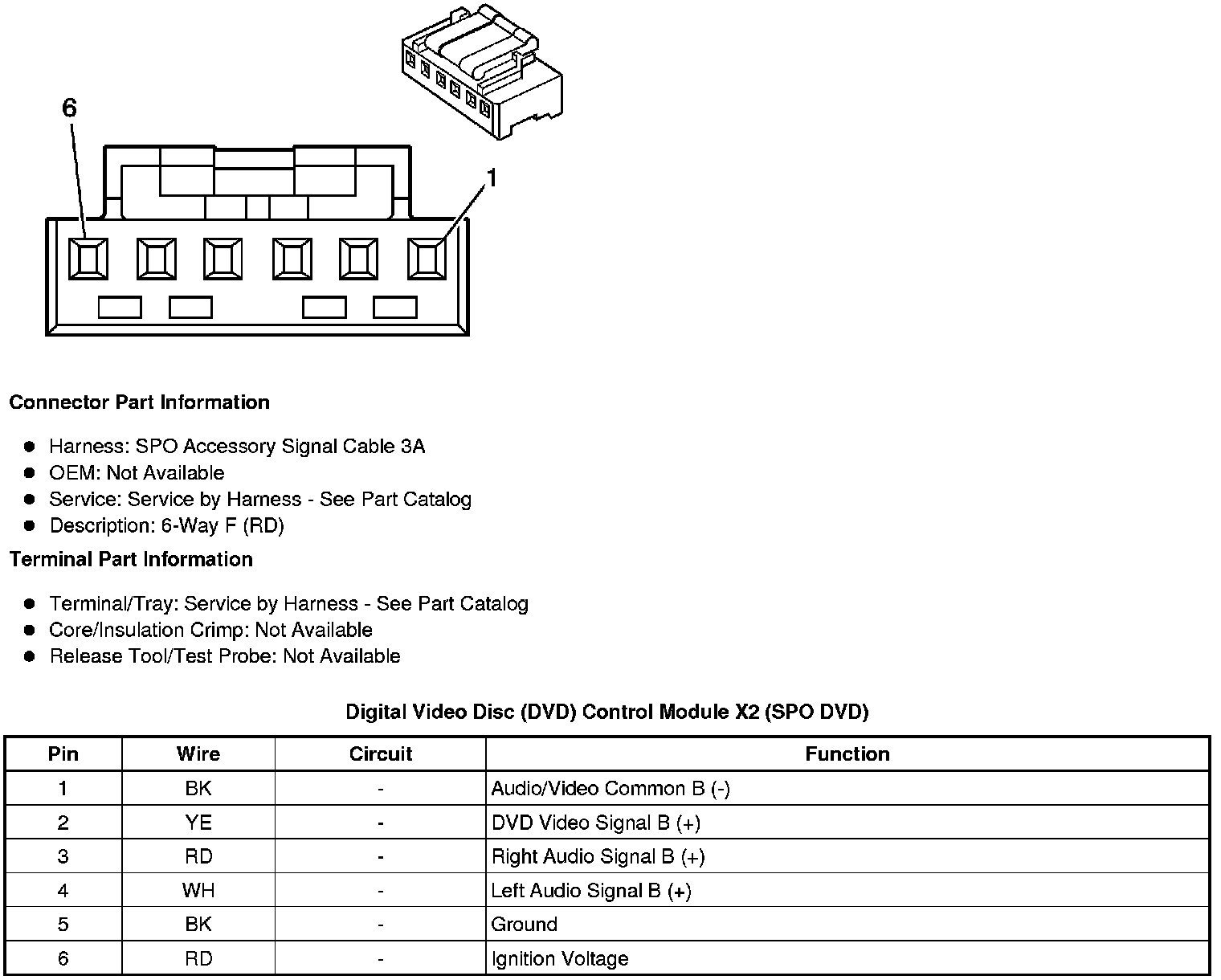

Digital Video Disc (DVD) Control Module X2 (SPO DVD)






Digital Video Disc (DVD) Control Module X3 (SPO DVD)






Digital Video Disc (DVD) Control Module X4 (SPO DVD)






Digital Video Disc (DVD) Control Module X5 (SPO DVD)

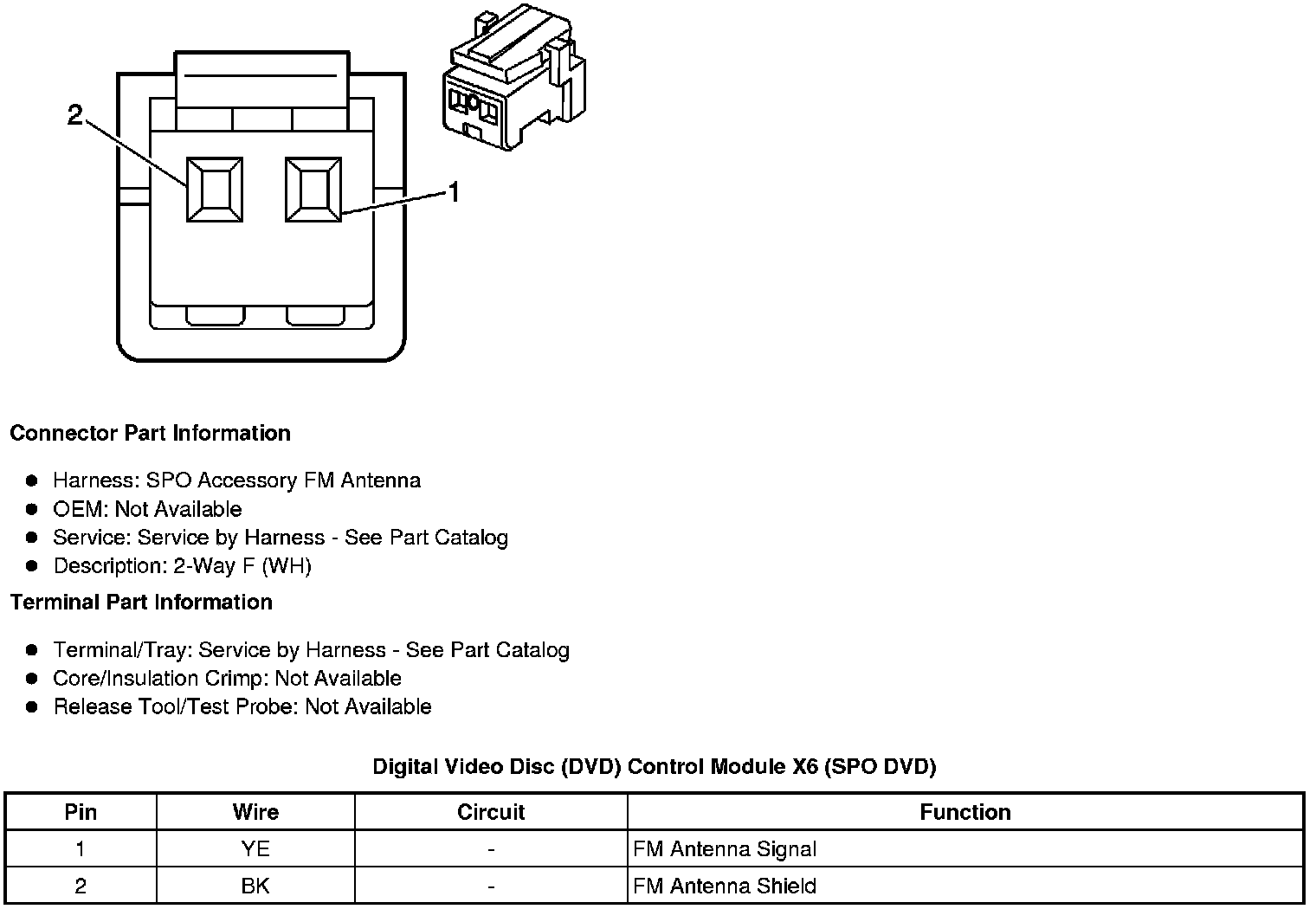

Digital Video Disc (DVD) Control Module X6 (SPO DVD)
