Radio/Navigation System Schematics

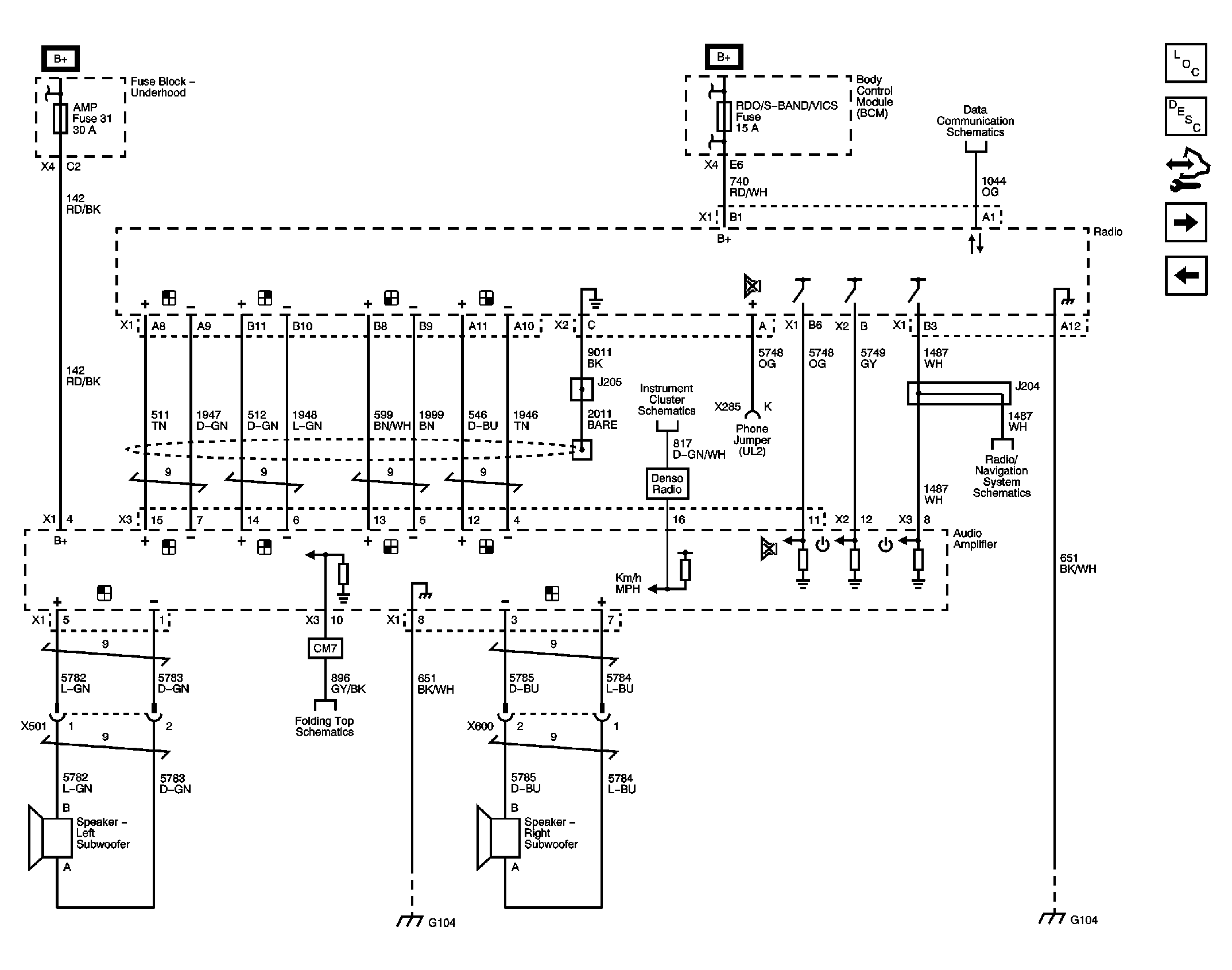

Fig 1: Power, Ground, Serial Data, Amplifier, Audio Signals and Radio (U66)

Courtesy of GENERAL MOTORS CORP.

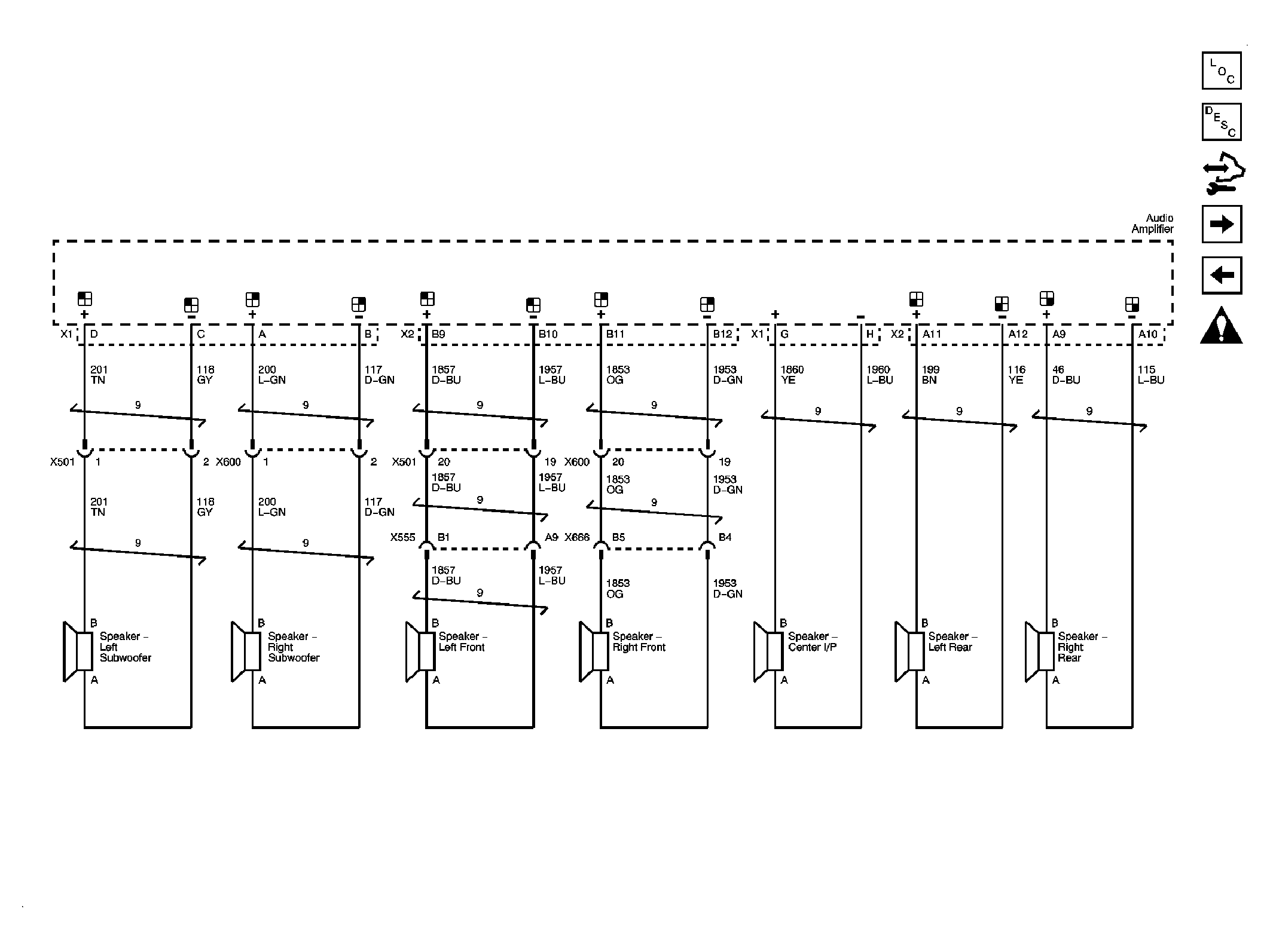

Fig 2: Speakers (U66)

Courtesy of GENERAL MOTORS CORP.

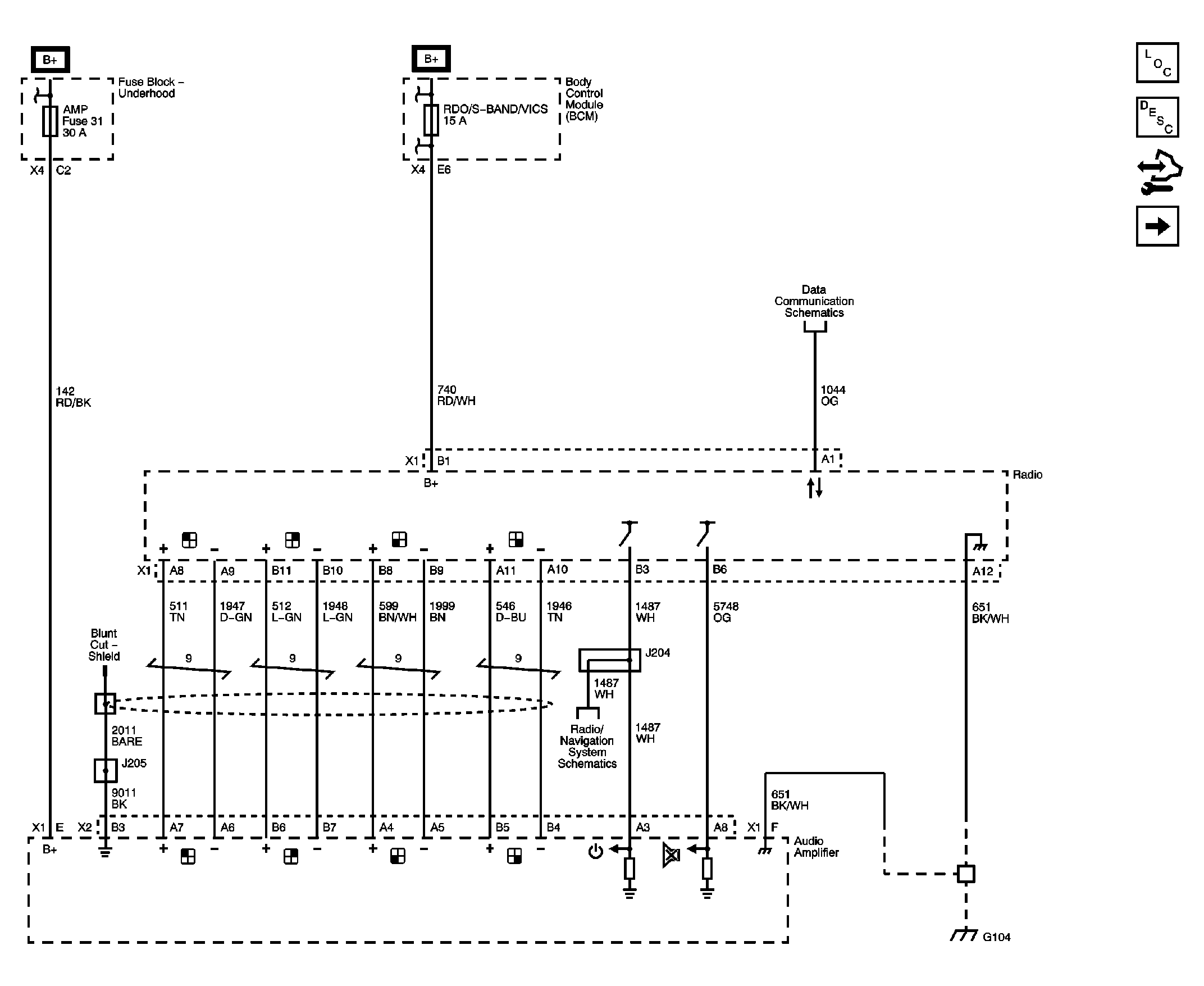

Fig 3: Power, Ground, Serial Data, Amplifier, Audio Signals, Front Speakers, and Radio (U65)

Courtesy of GENERAL MOTORS CORP.

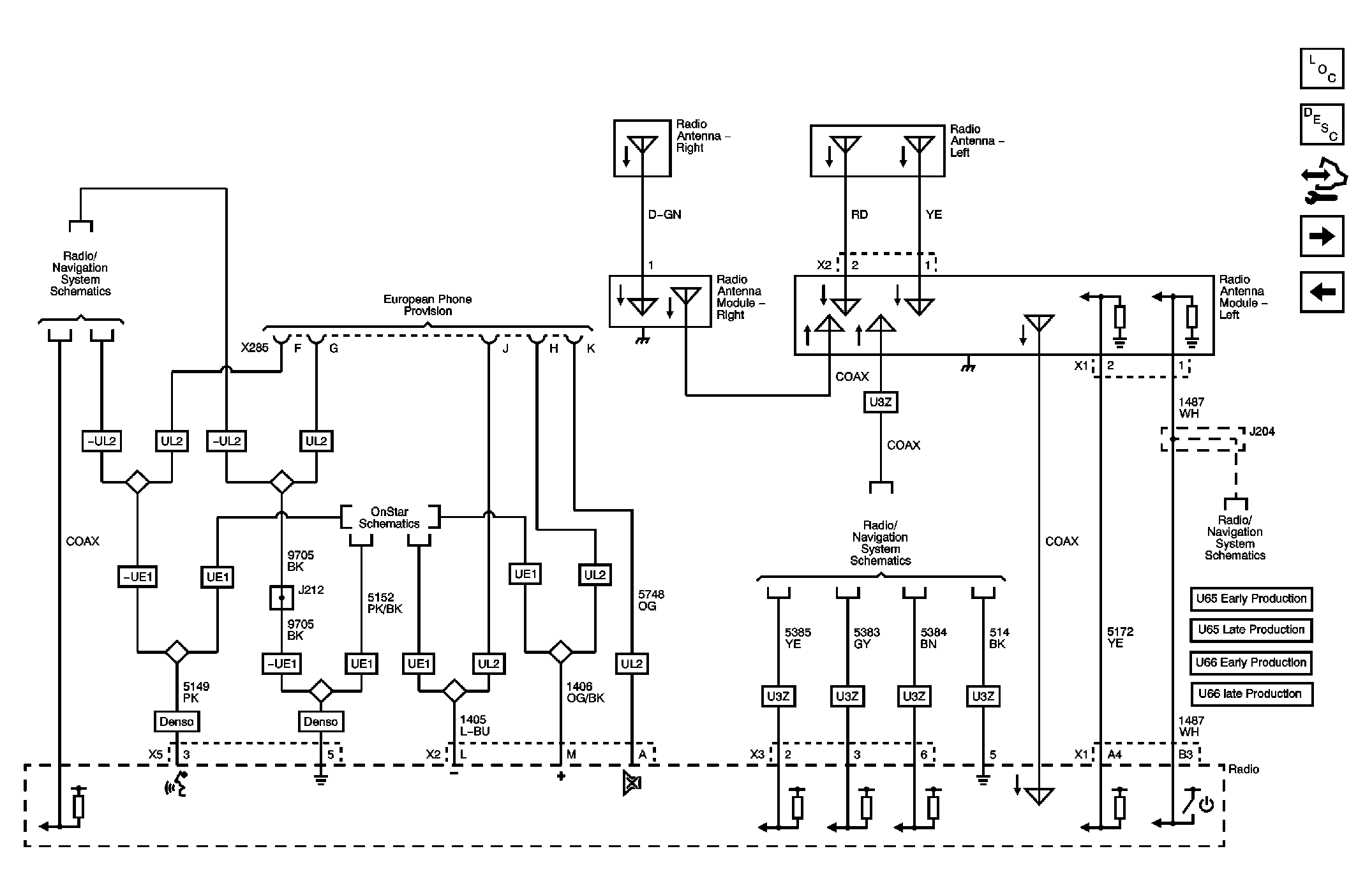

Fig 4: Antennas (except U2K), Navigation, and OnStar References

Courtesy of GENERAL MOTORS CORP.

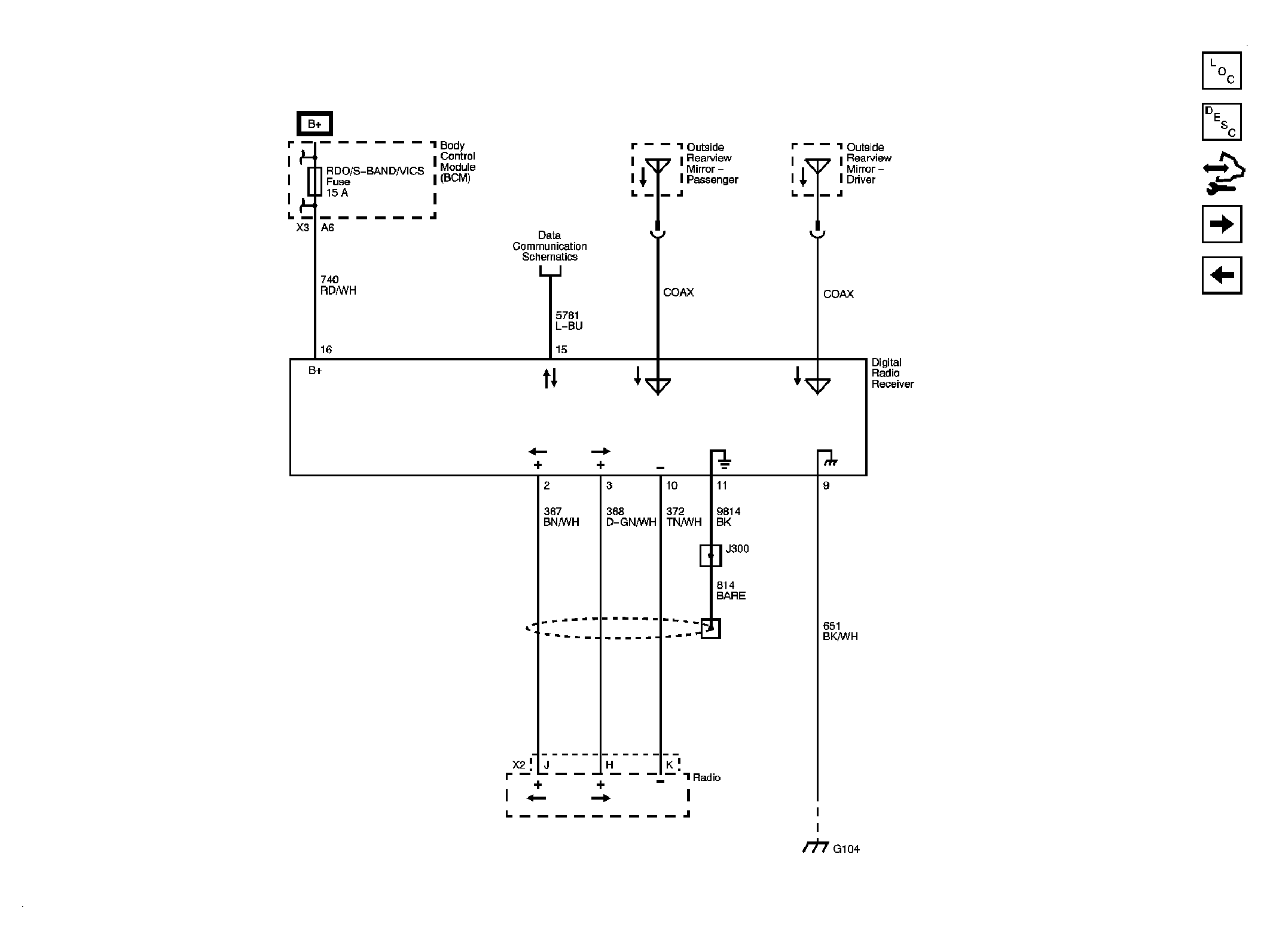

Fig 5: Satellite Radio (U2K)

Courtesy of GENERAL MOTORS CORP.

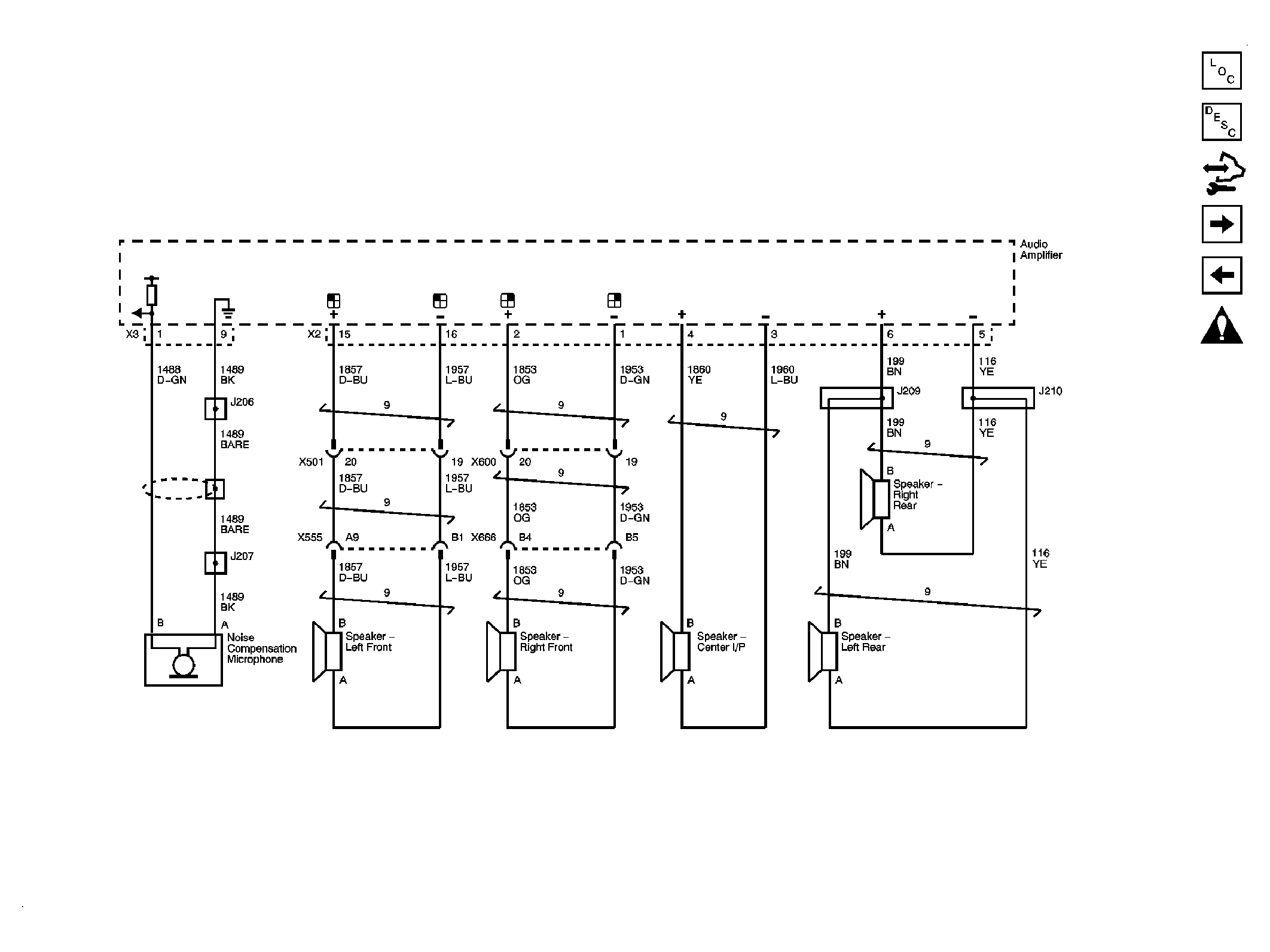

Fig 6: Speakers and Noise Compensation Microphone (U65)

Courtesy of GENERAL MOTORS CORP.

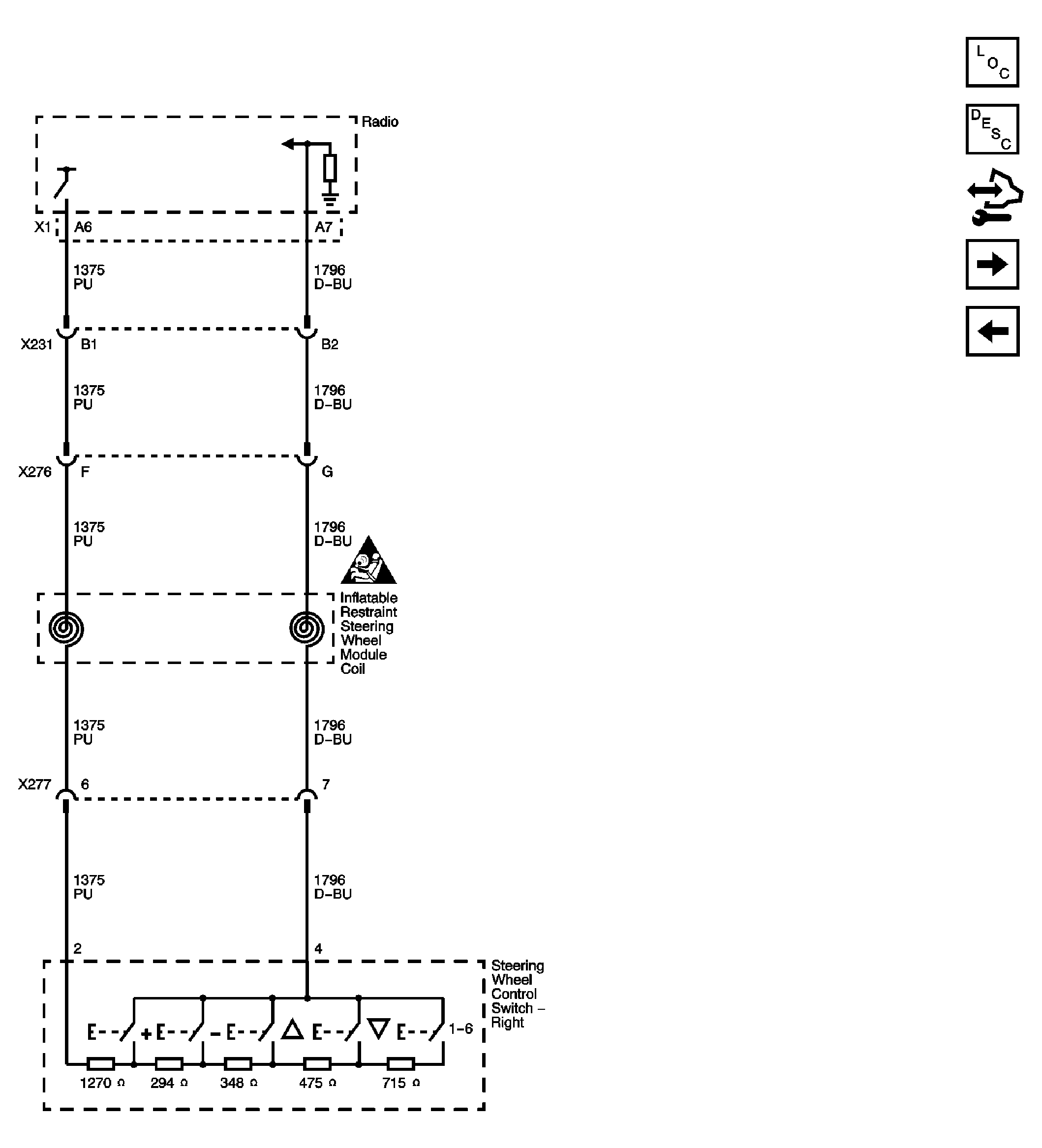

Fig 7: Steering Wheel Controls (UK3)

Courtesy of GENERAL MOTORS CORP.

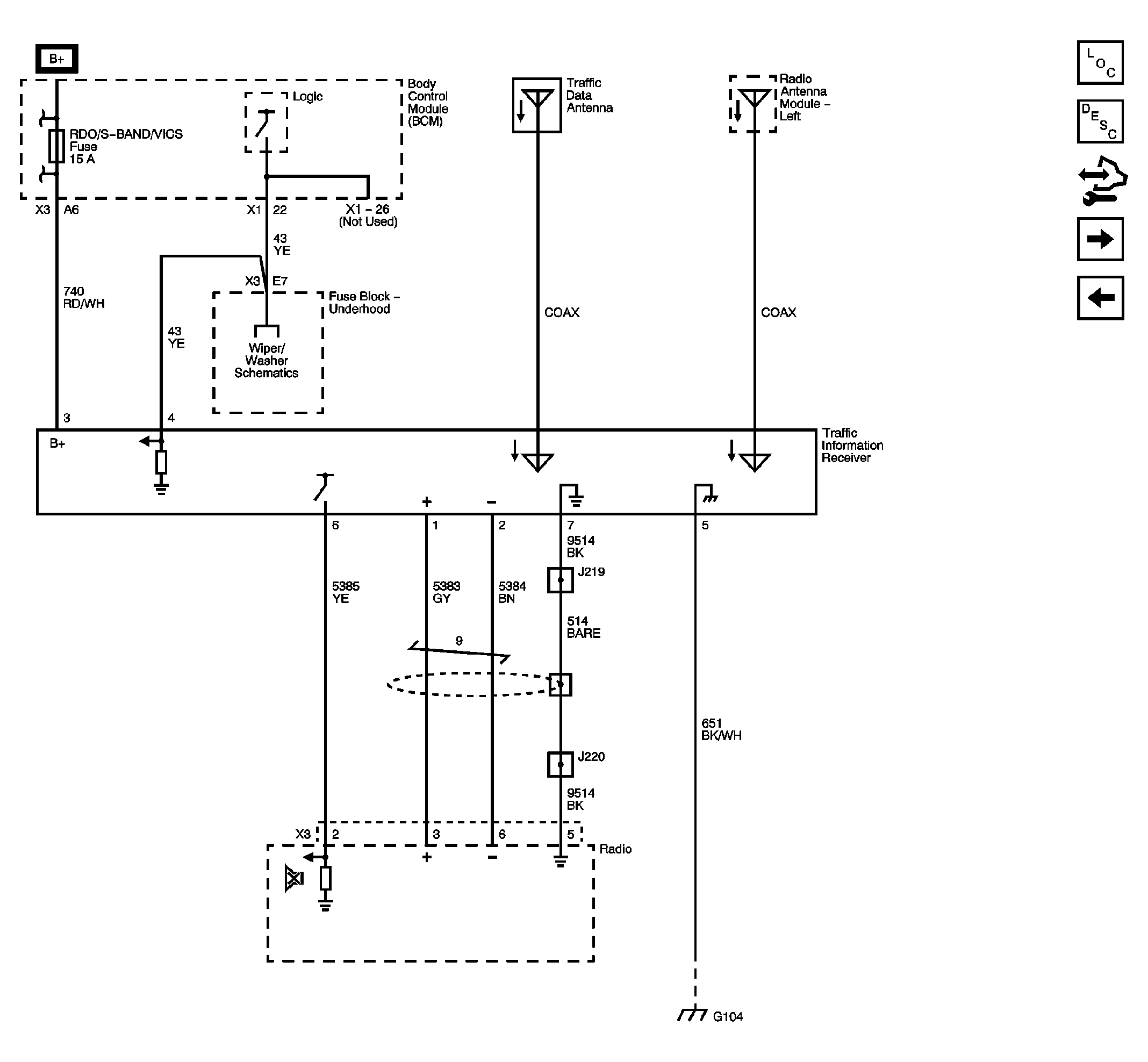

Fig 8: Traffic Information - Japan (U3Z)

Courtesy of GENERAL MOTORS CORP.

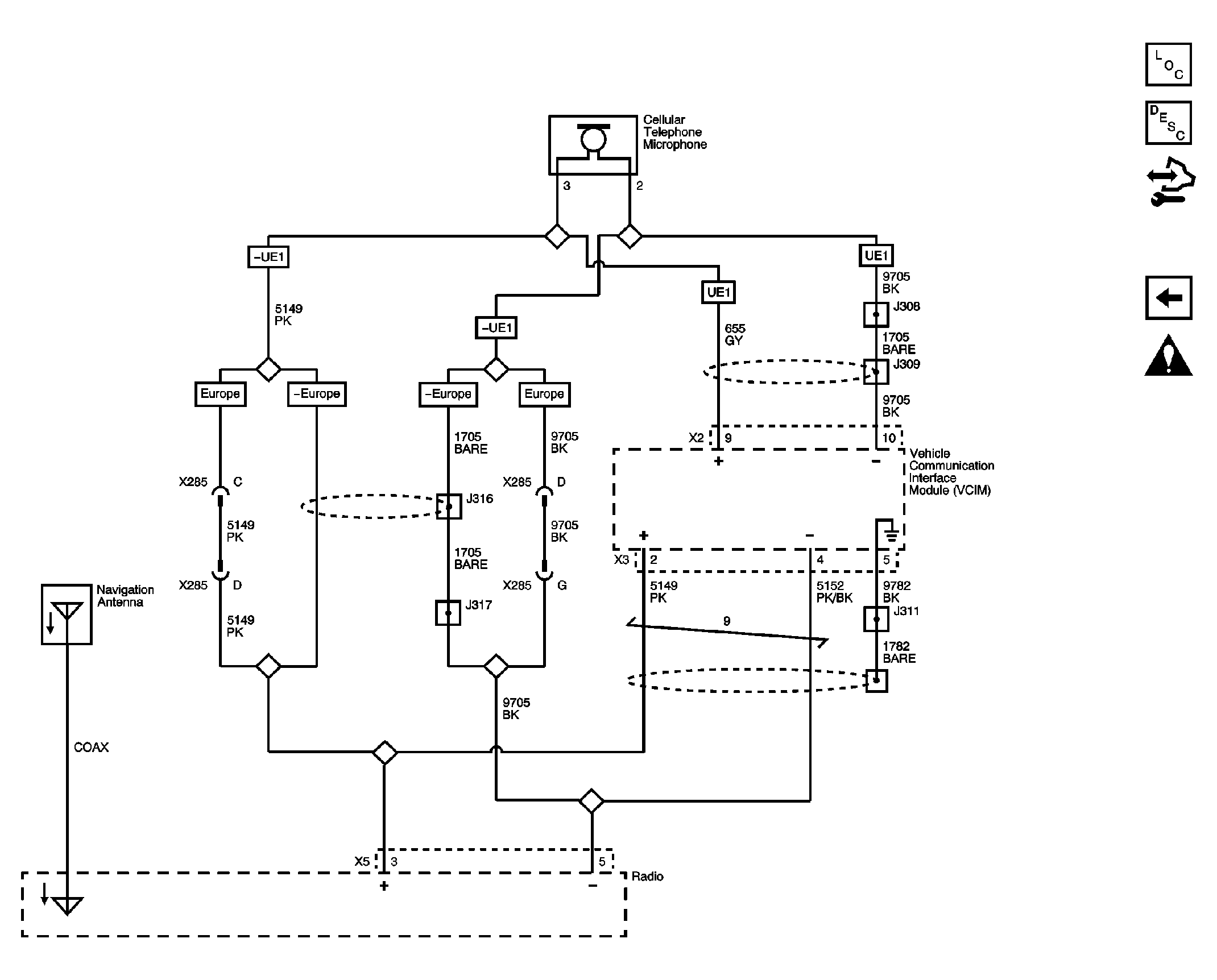

Fig 9: Navigation (except Japan)

Courtesy of GENERAL MOTORS CORP.
