Antilock Brake System Schematics

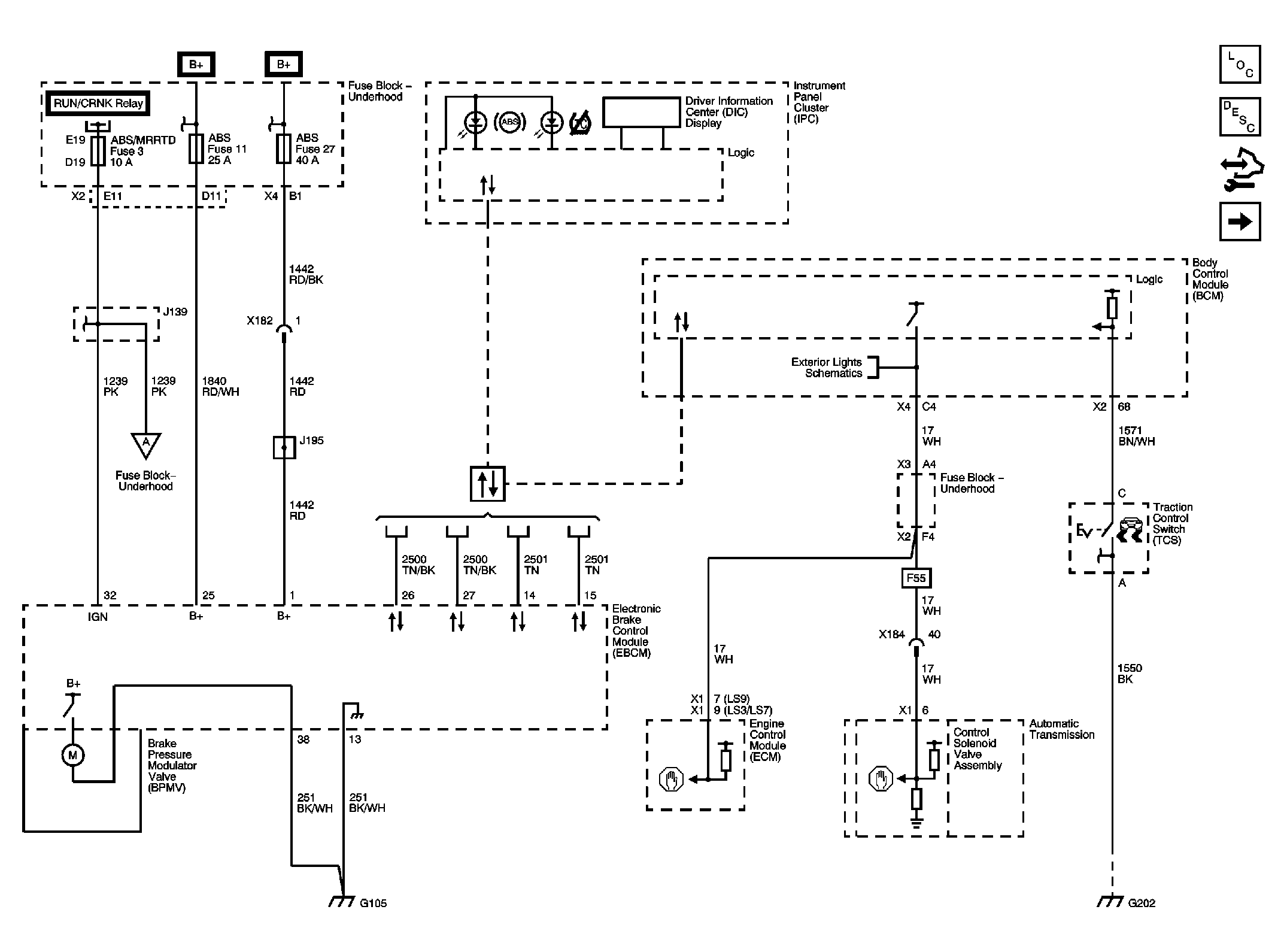

Fig 1: Power, Ground, Brake Pressure and Traction Controls
GM2225388Courtesy of GENERAL MOTORS CORP.

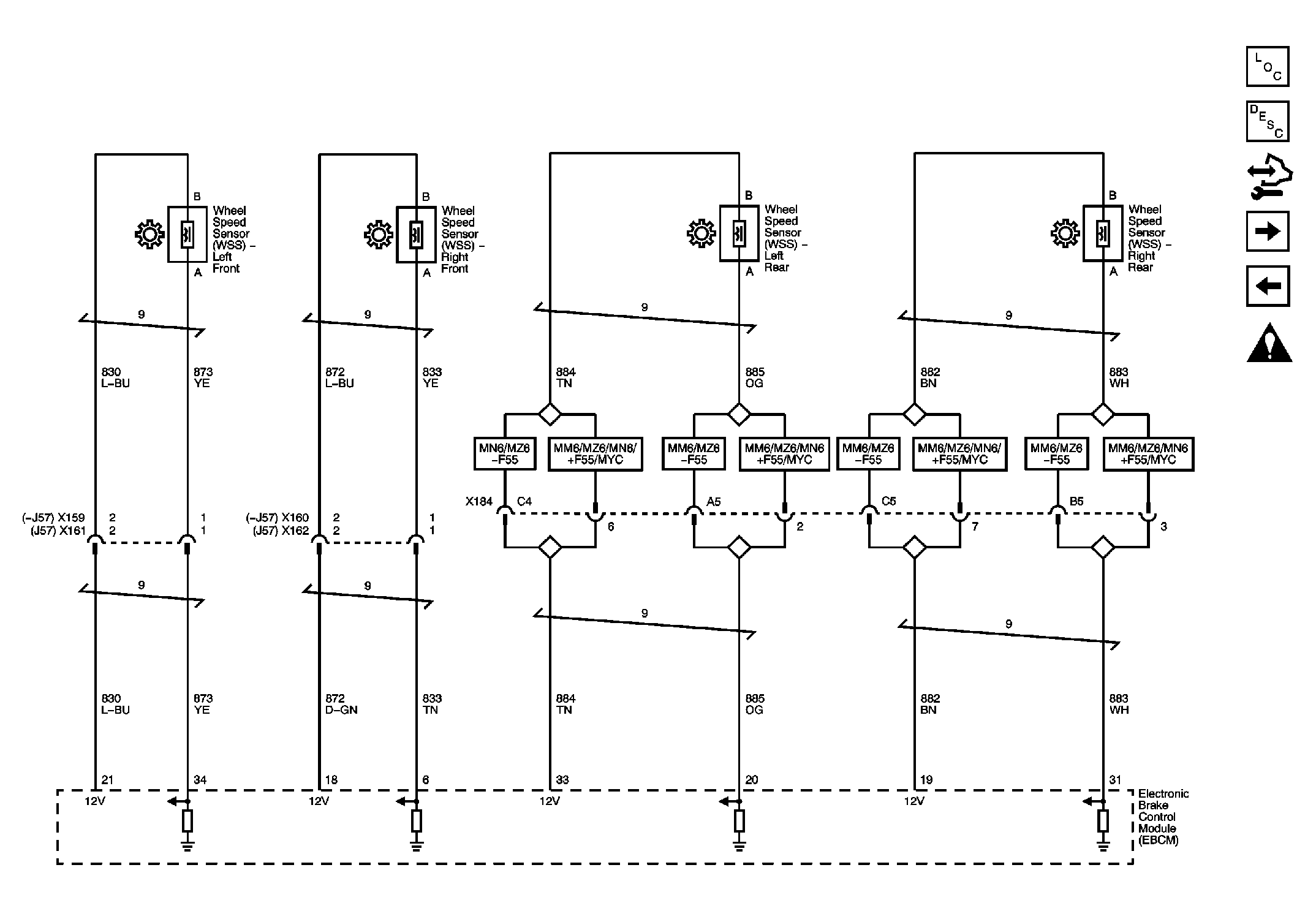

Fig 2: Wheel Speed Sensors
GM2225393Courtesy of GENERAL MOTORS CORP.

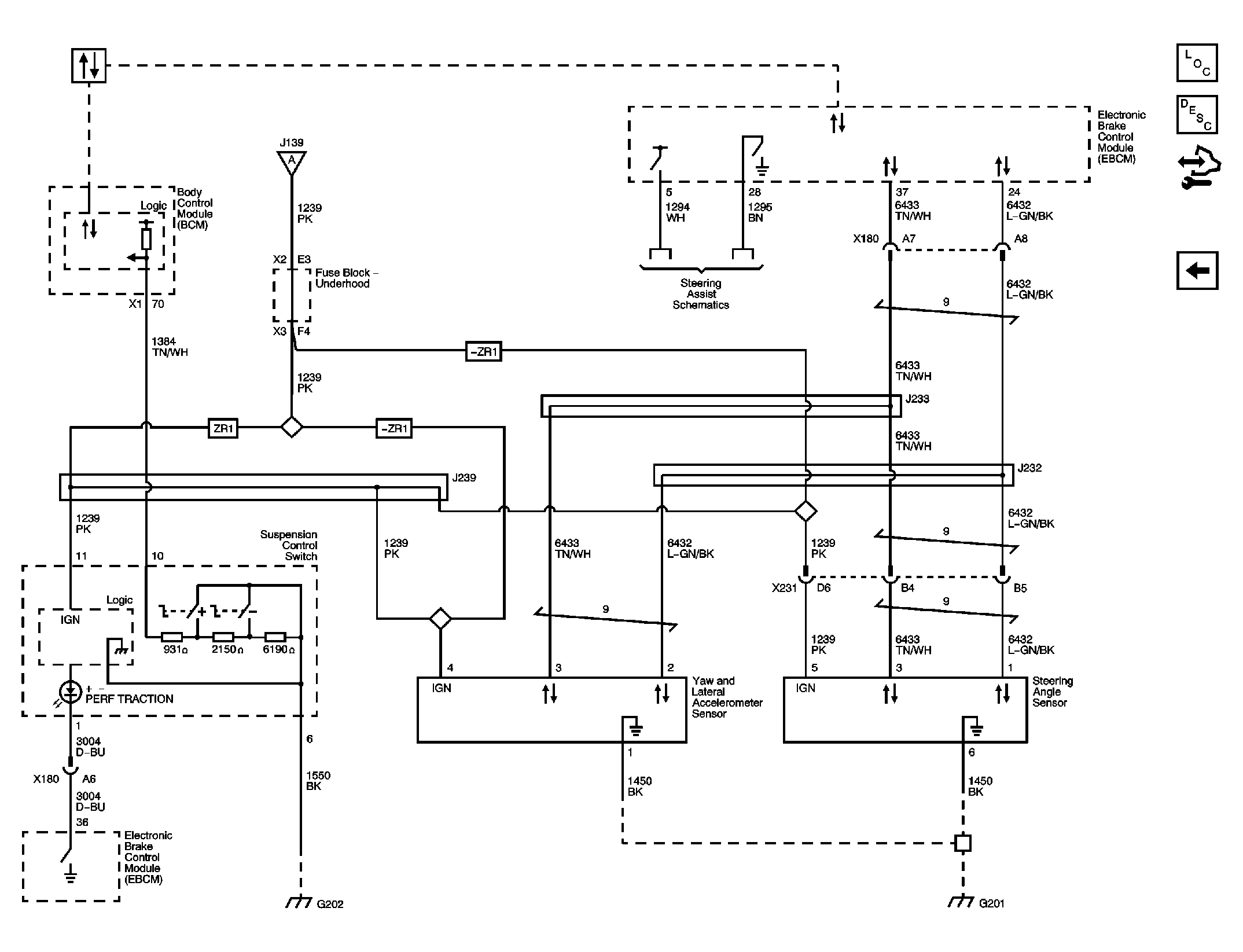

Fig 3: Stability Control Inputs
GM2225390Courtesy of GENERAL MOTORS CORP.
