Harness Locations

Harness Routing Views

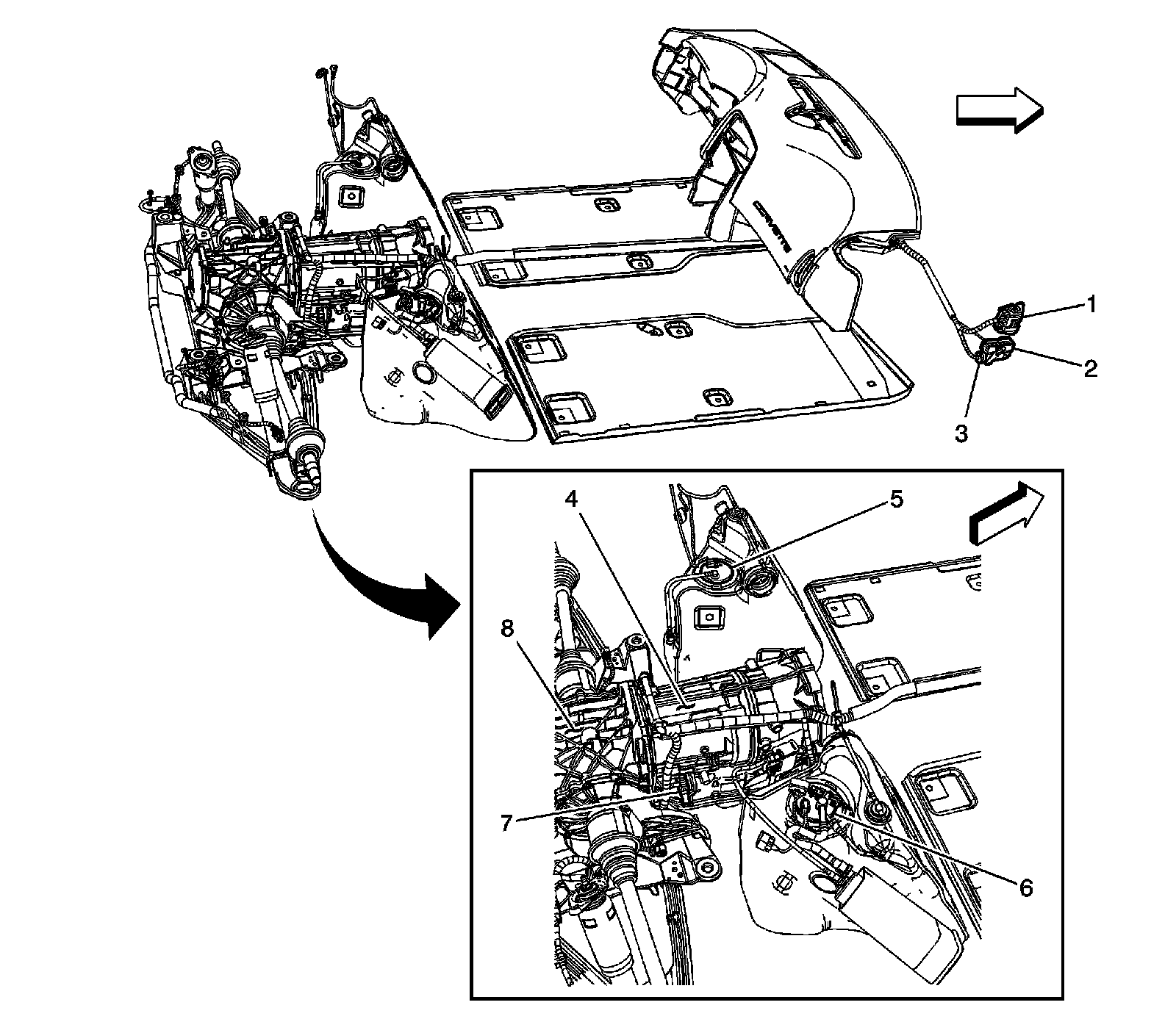

Automatic Transmission Harness Routing




1 - X184
2 - Suspension Control Module (F55)
3 - X168 (LS3/LS7 with F55)
4 - Automatic Transmission (MYC)
5 - Fuel Pump and Sender Assembly - Primary
6 - Fuel Level Sensor - Secondary
7 - Control Solenoid Valve Assembly (MYC)
8 - Differential Carrier
