Connector Views

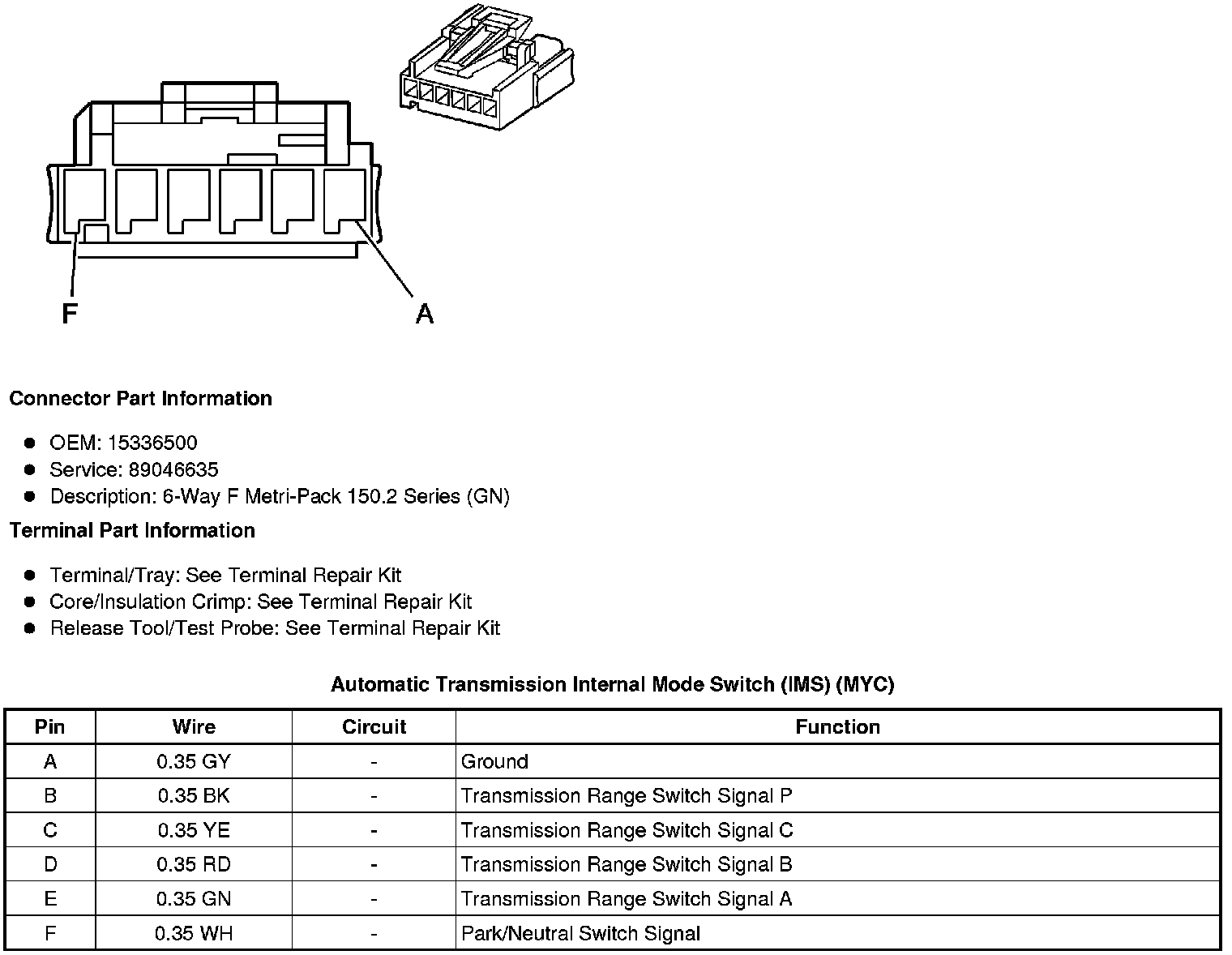

Component Connector End Views
Automatic Transmission Internal Mode Switch (IMS) (MYC)
