Fuel System Control Module Relay

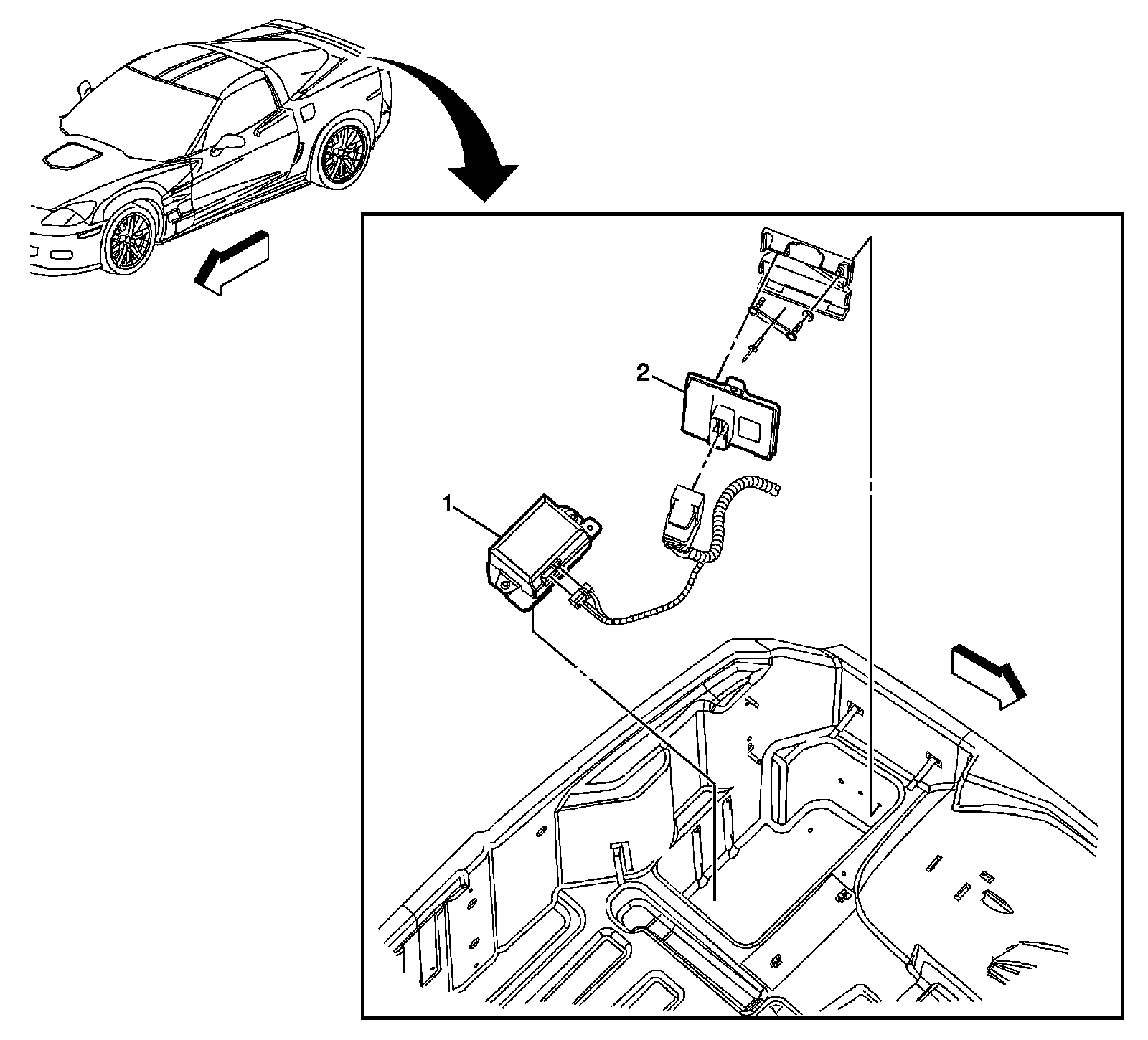

Wheels/Vehicle Underbody Component Views

Fuel System Module (LS9)




1 - Fuel System Control Module Relay
2 - Fuel System Control Module
