With RPO Z52

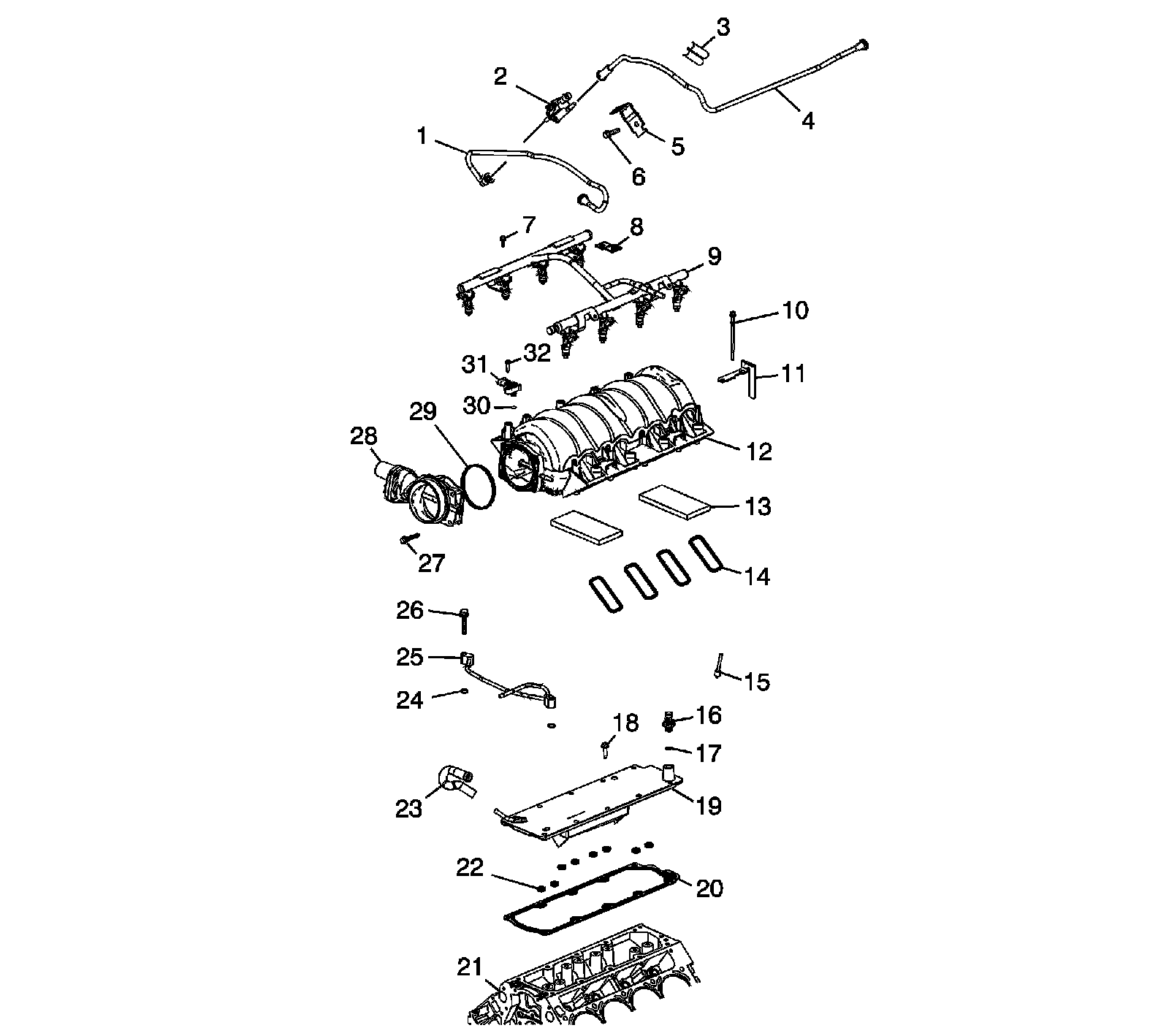

Disassembled Views (6.2L LS3 with Z52 Option)

Intake Manifold/Upper Engine




1 - Evaporative Emission (EVAP) Canister Purge Tube
2 - EVAP Canister Purge Solenoid Valve
3 - EVAP Tube Clip
4 - EVAP Canister Purge Tube
5 - EVAP Purge Valve Bracket
6 - Bolt
7 - Bolt
8 - Fuel Rail Ground Strap
9 - Fuel Rail with Injectors
10 - Bolt
11 - Fuel Injection Fuel Rail Stop Bracket
12 - Intake Manifold
13 - Seal
14 - Intake Manifold Gasket
15 - Engine Coolant Air Bleed Plug
16 - Oil Pressure Sensor
17 - Washer
18 - Bolt
19 - Valley Cover
20 - Valley Cover Gasket
21 - Engine Block
22 - Seal
23 - Positive Crankcase Ventilation (PCV) Hose - Dirty Air
24 - Seal
25 - Engine Coolant Air Bleed Pipe
26 - Bolt
27 - Bolt
28 - Throttle Body
29 - Throttle Body Gasket
30 - Seal
31 - Manifold Absolute Pressure (MAP) Sensor
32 - MAP Sensor Bolt
