Component Locations

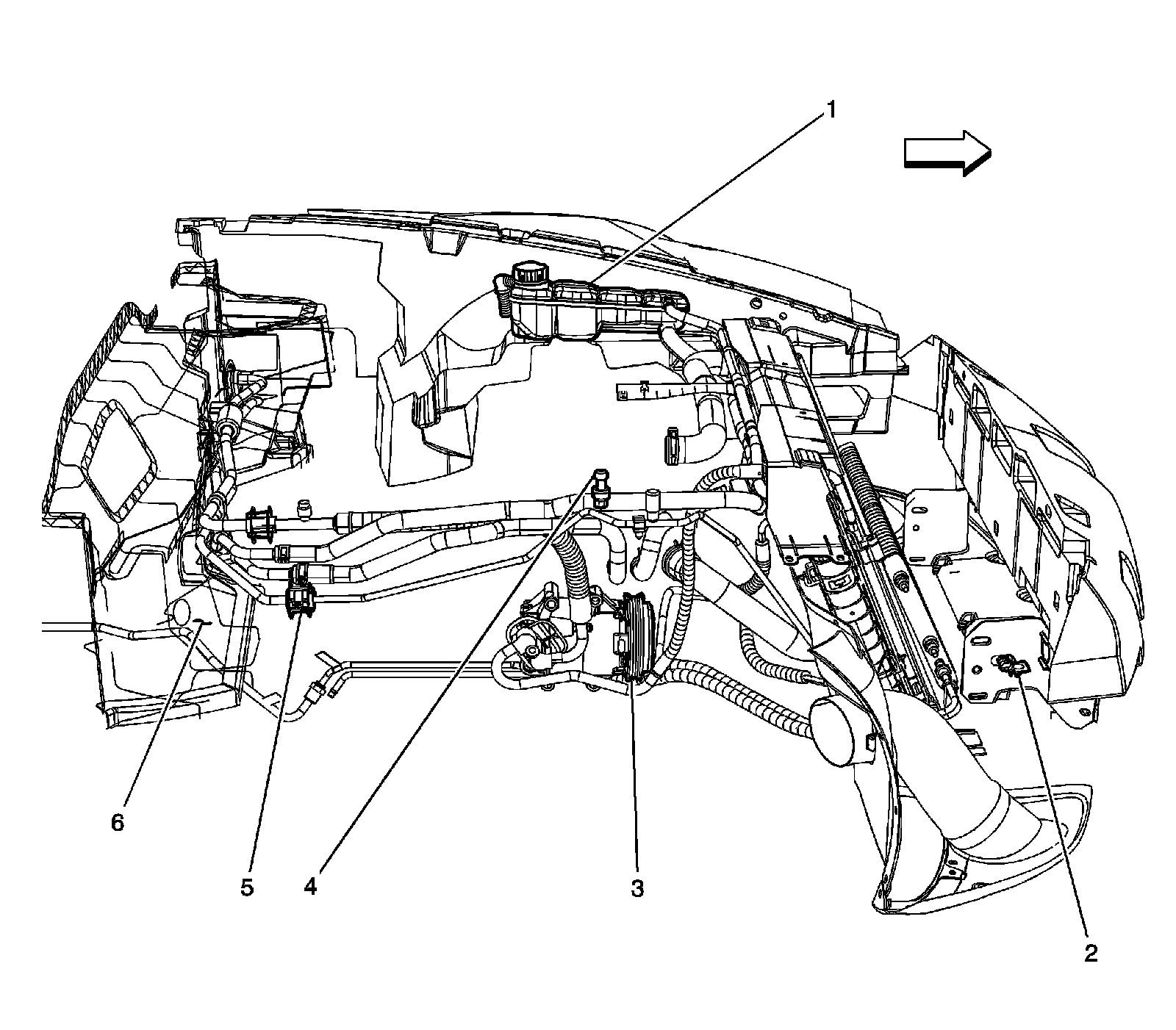

Front of Vehicle/Engine Compartment Component Views

Engine Compartment HVAC Components




1 - Surge Tank
2 - Ambient Air Temperature Sensor
3 - A/C Compressor Clutch
4 - A/C Refrigerant Pressure Sensor
5 - Suspension Control Module (F55)
6 - Engine Control Module (ECM)
