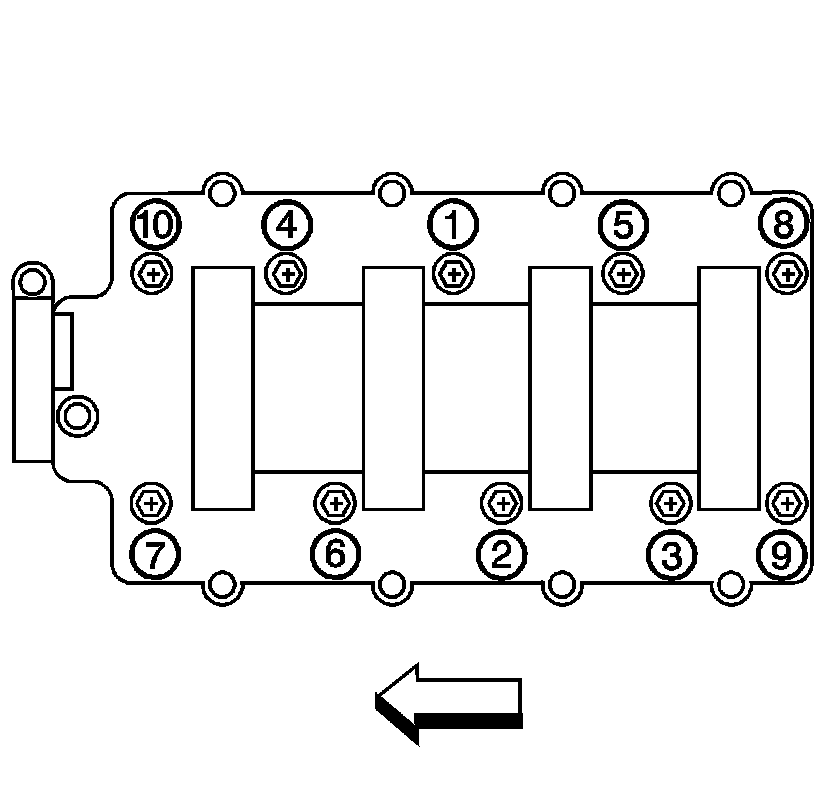

Intake Manifold
Intake Manifold
First Pass
5 Nm (44 lb in)
Final Pass
10 Nm (89 lb in)
Throttle Body
Bolts
10 Nm (89 lb in)
