Alternator

Component Connector End Views

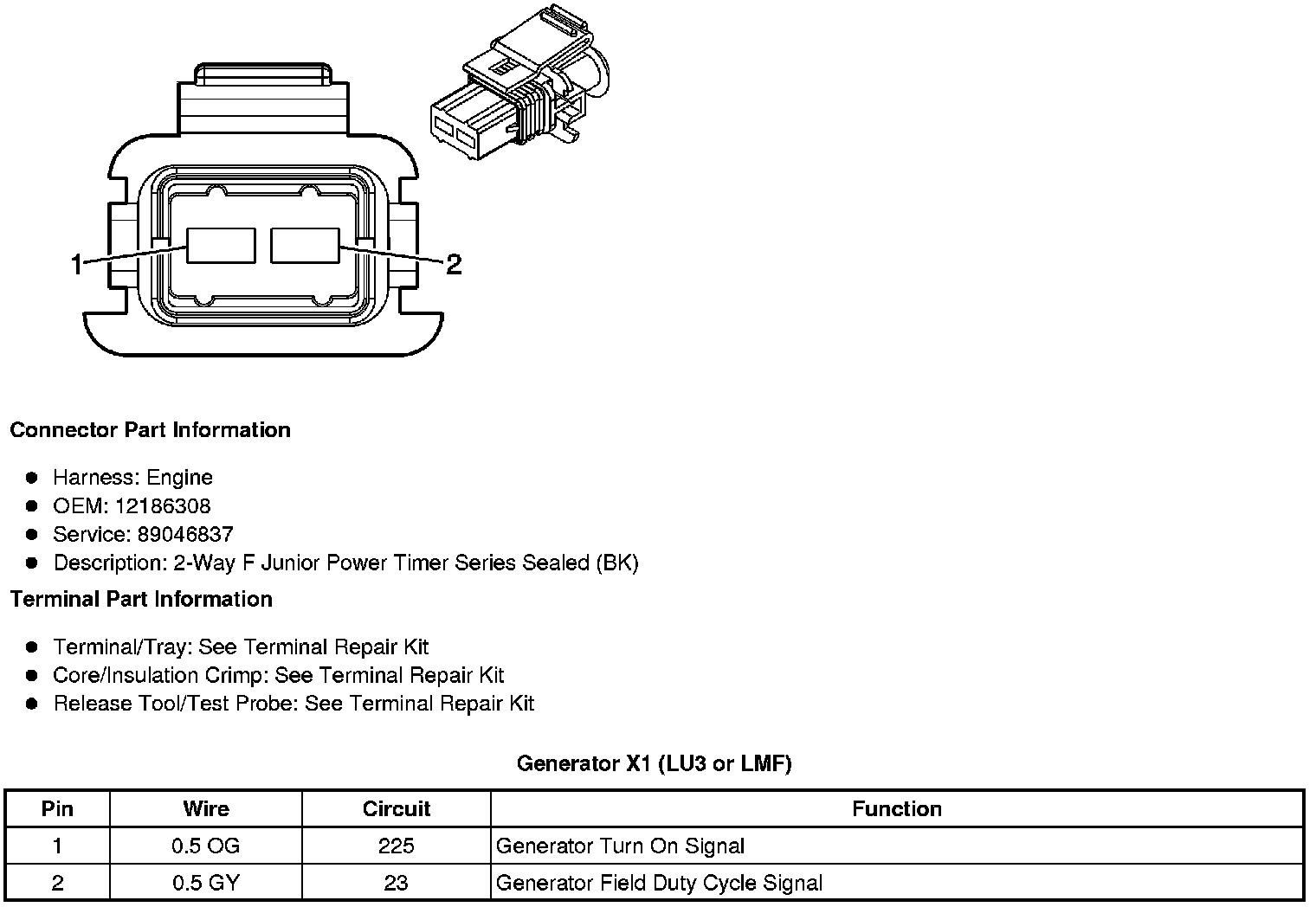

Generator X1 (LU3 or LMF)

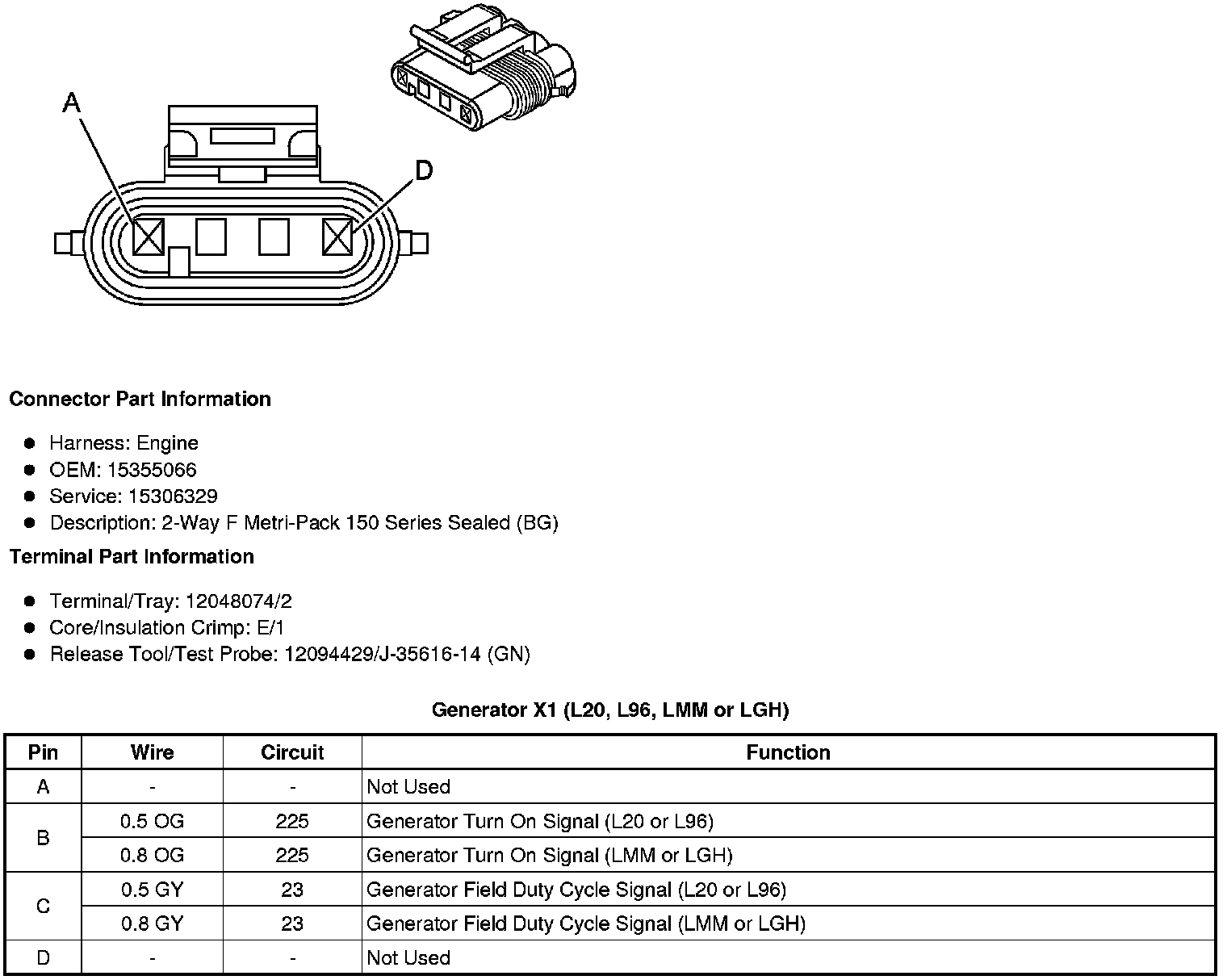

Generator X1 (L20, L96, LMM or LGH)

Generator X2

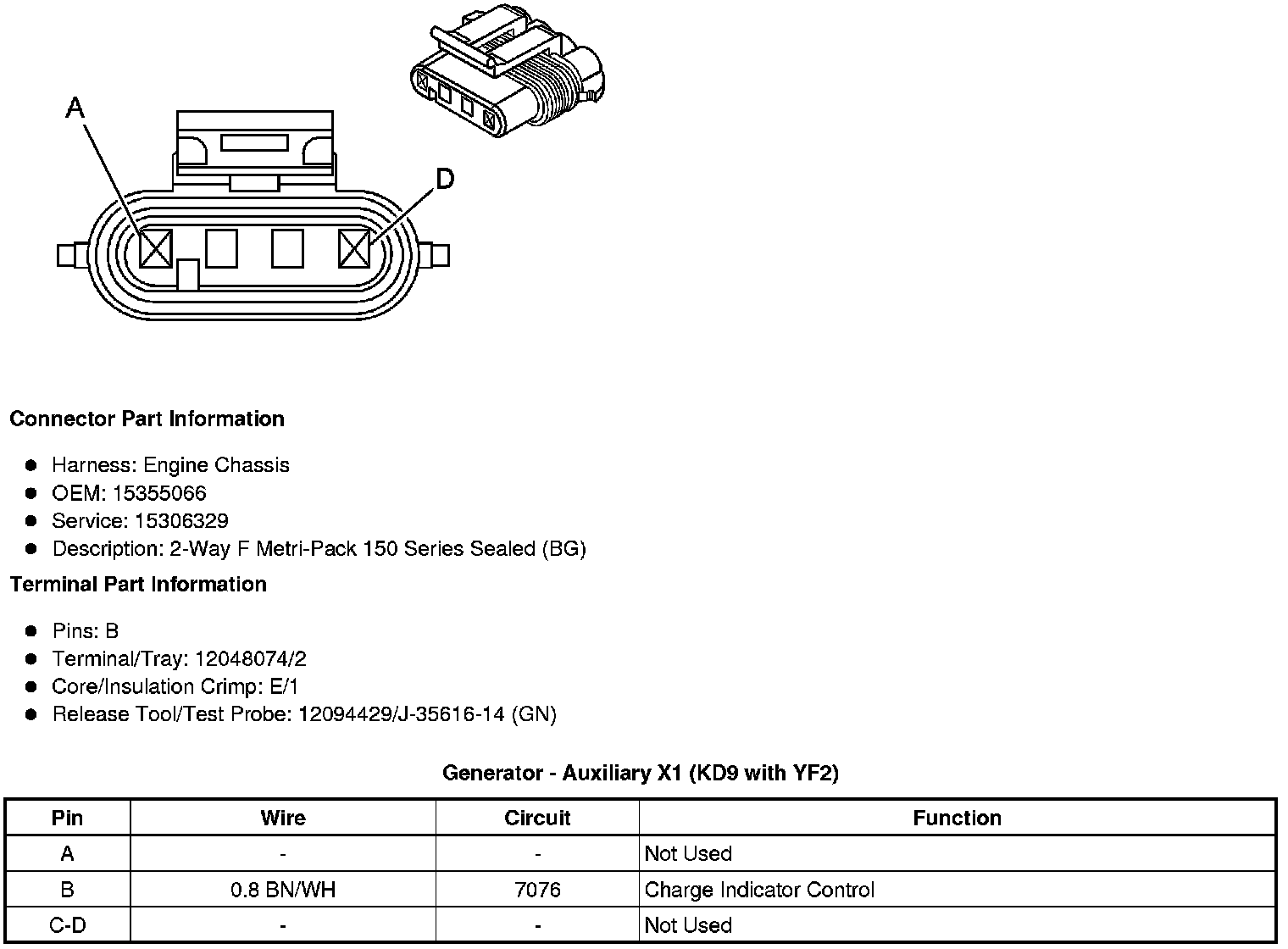

Generator - Auxiliary X1 (KD9 with YF2)

Generator - Auxiliary X2 (KD9 with YF2)
