Passenger Compartment/Roof Component Views

Passenger Compartment/Roof Component Views

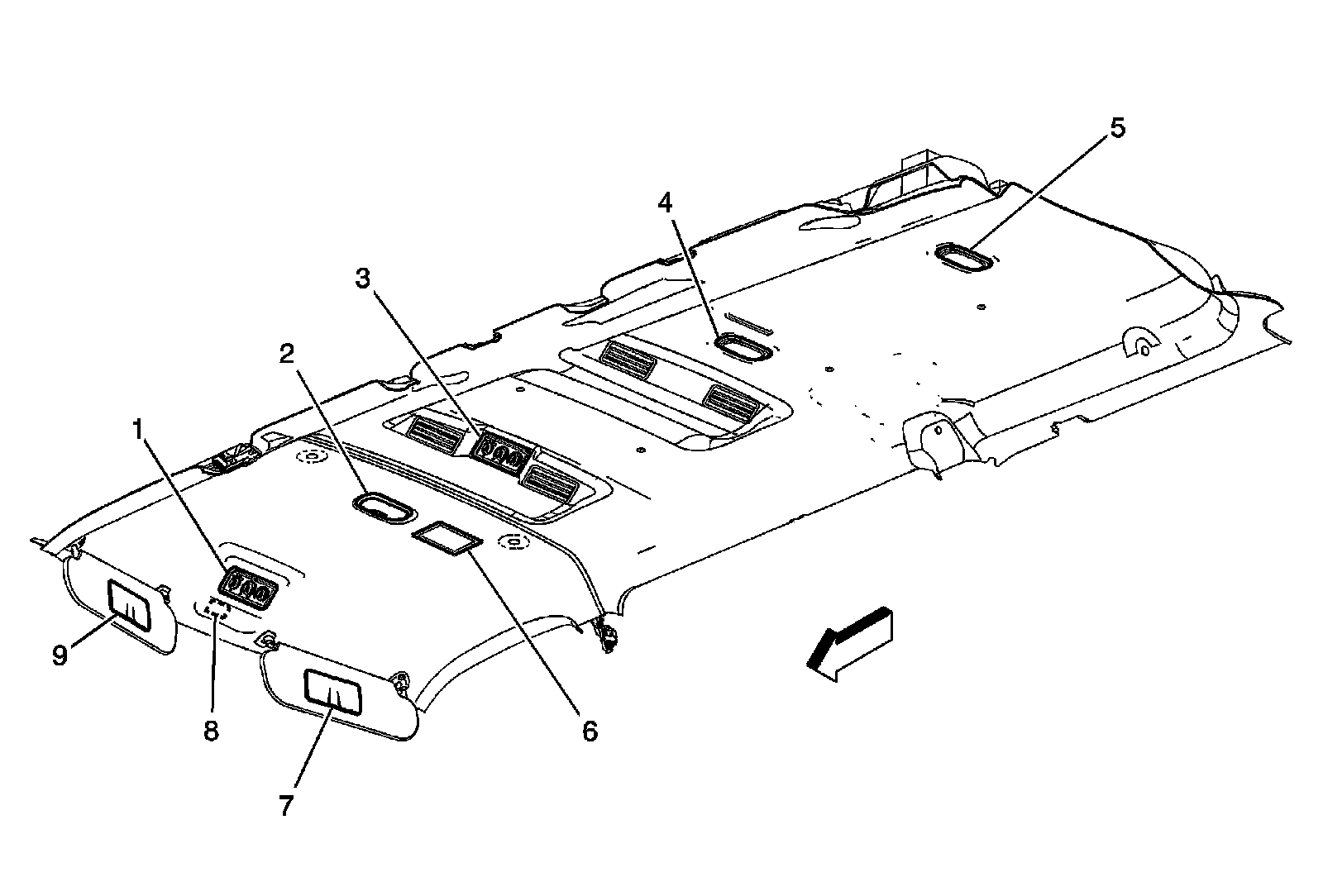

Headliner




1 - HVAC Control Assembly - Front Auxiliary (C69)
2 - Dome/Reading Lamp - Front
3 - HVAC Control Assembly - Rear Auxiliary (C69 with Rear Auxiliary Controls)
4 - Dome/Reading Lamp - Middle (Passenger)
5 - Dome/Reading Lamp - Rear (Passenger)/Dome Lamp (Cargo)
6 - Electronic Compass Module (U80)
7 - Sunshade - Right (DH6)
8 - HVAC Control Module - Auxiliary (C69 with Rear Auxiliary Controls)
9 - Sunshade - Left (DH6 with YF7)
