Oil Pressure Sensor: Diagrams




Component Connector End Views

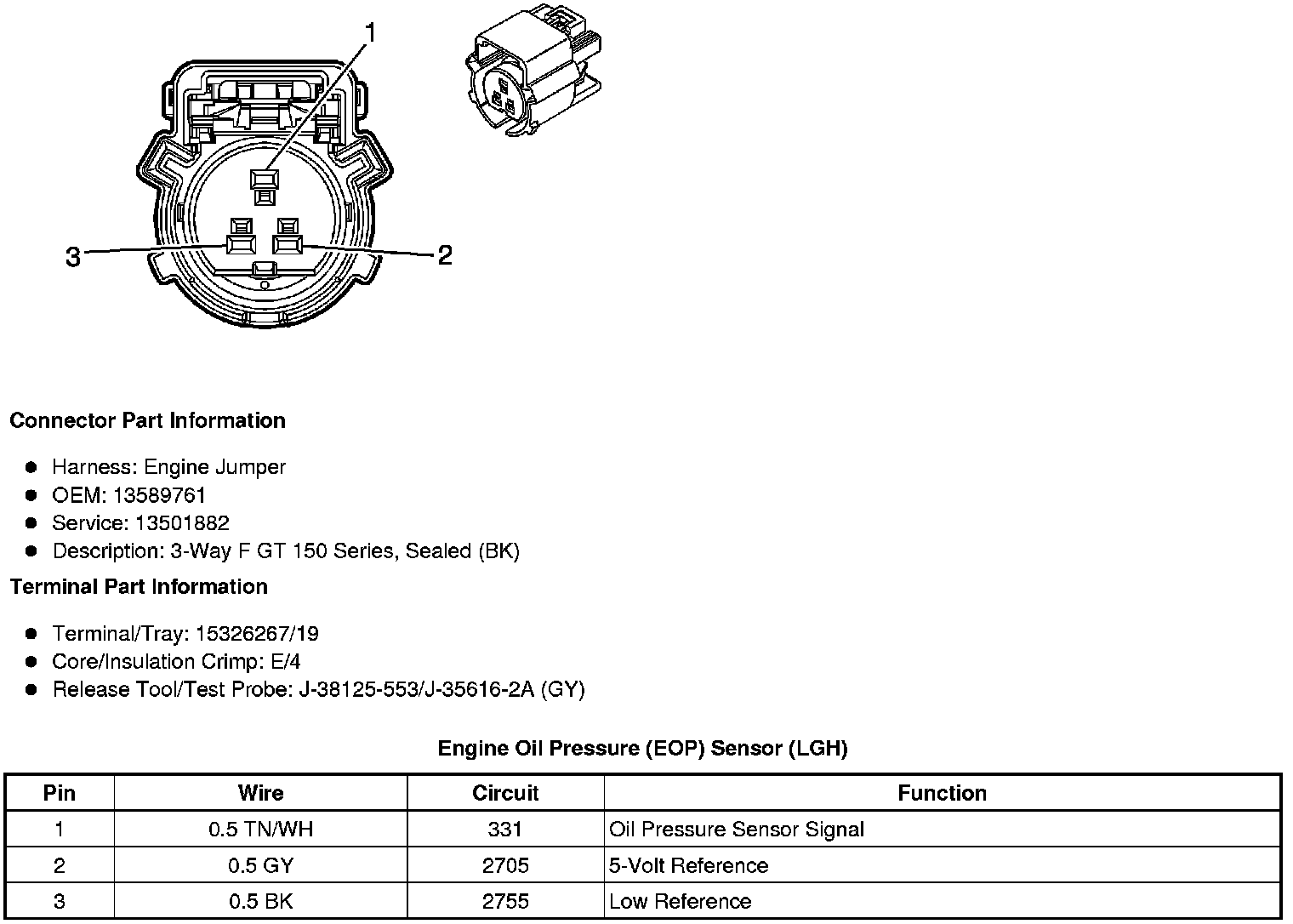

Engine Oil Pressure (EOP) Sensor (LGH)

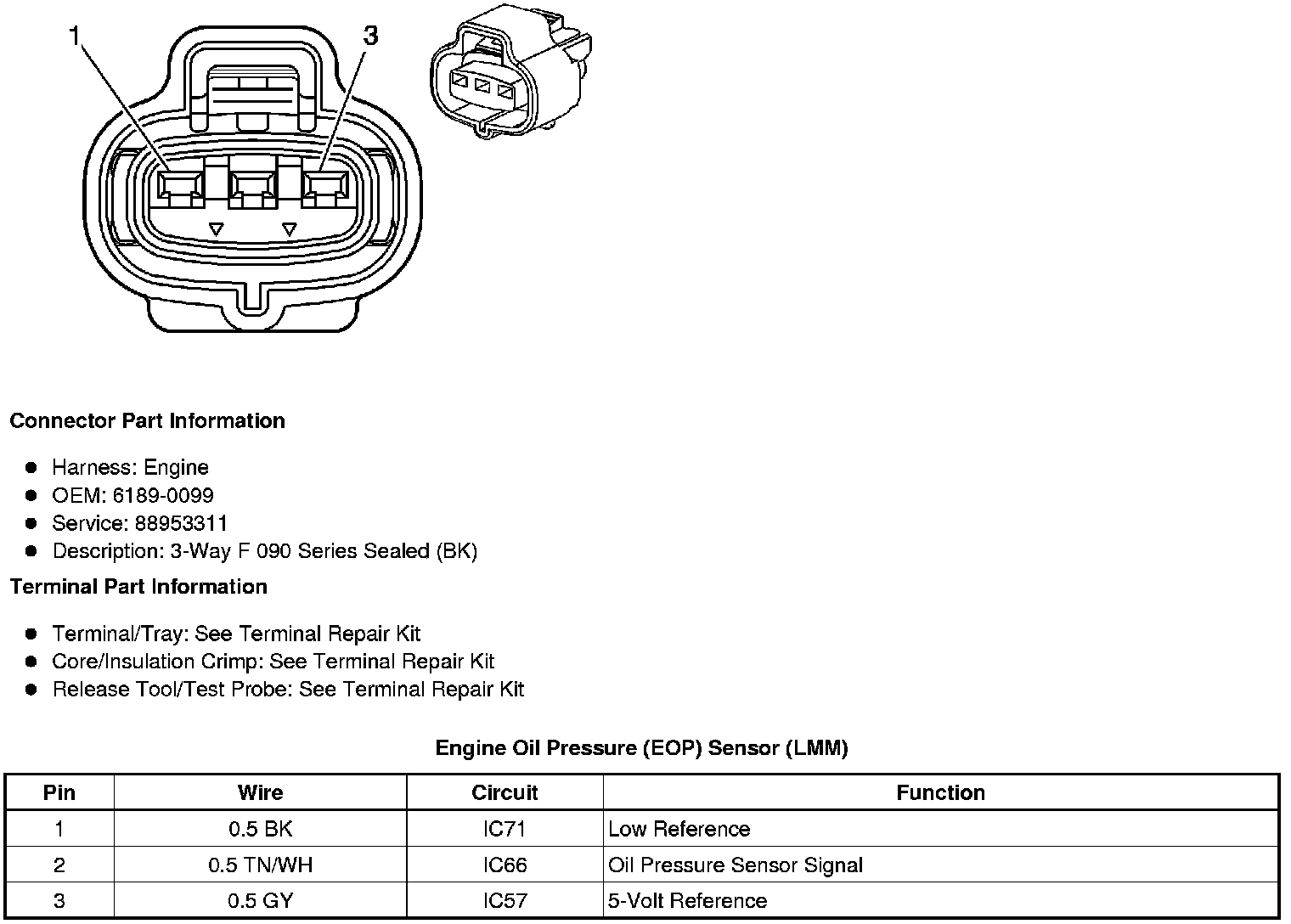

Engine Oil Pressure (EOP) Sensor (LMM)





Engine Oil Pressure (EOP) Sensor (LU3)





Engine Oil Pressure (EOP) Sensor (L20, LMF or L96)
