Air Flow Meter/Sensor: Locations

Powertrain Component Views

Engine Components (LGH)




1 - Mass Air Flow (MAF) Sensor/Intake Air Temperature (IAT) Sensor
2 - Engine Control Module (ECM)
3 - A/C Refrigerant Pressure Sensor
4 - Horn Assembly
5 - Fuse Block - Underhood

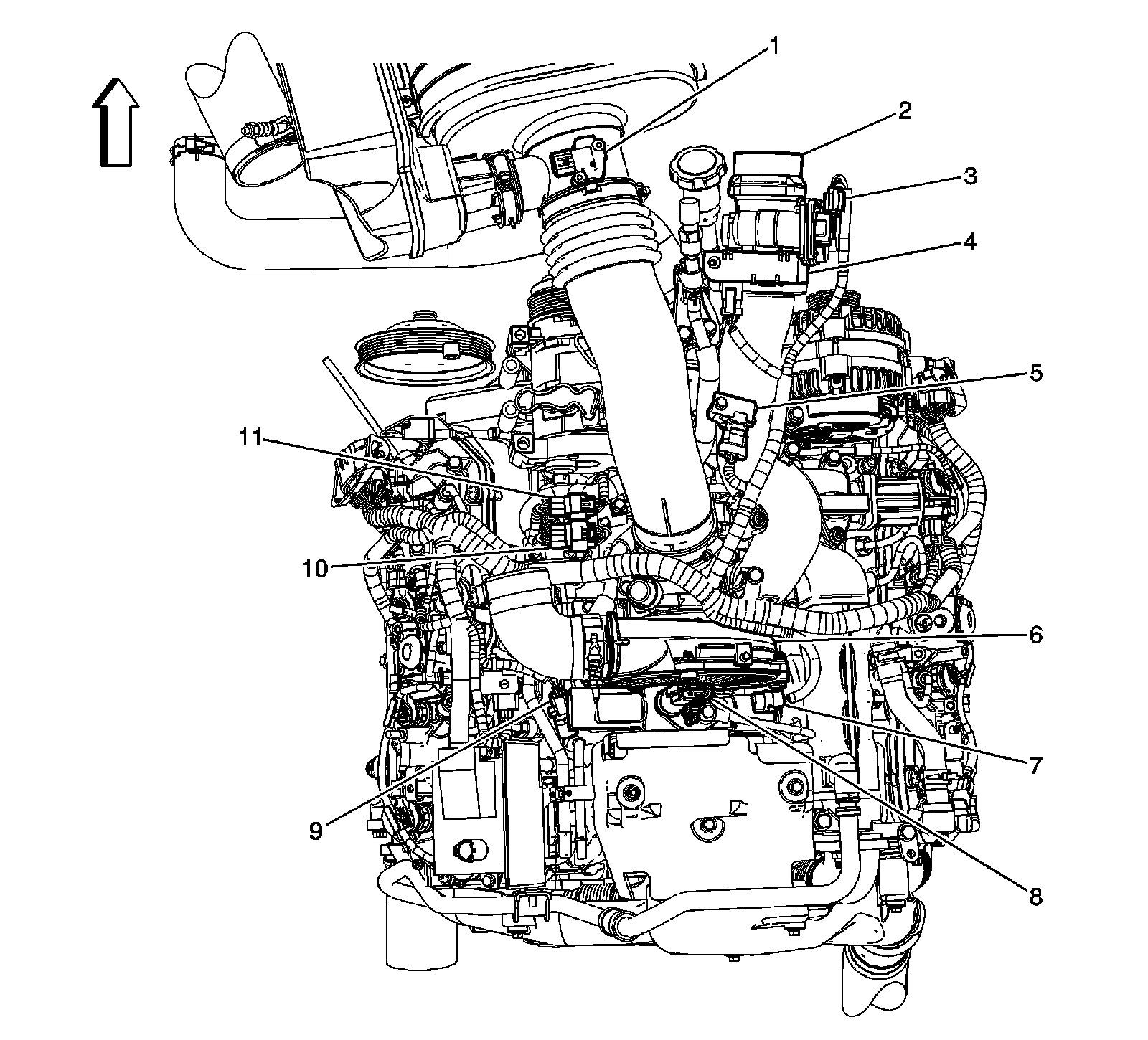

Upper Engine (LMM or LGH)




1 - Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
2 - Throttle Body
3 - Intake Air Valve
4 - Intake Air Heater (IAH)
5 - Manifold Absolute Pressure (MAP) Sensor
6 - Turbocharger
7 - Turbocharger Vane Position Control Solenoid Valve
8 - Turbocharger Vane Position Sensor
9 - Fuel Rail Temperature (FRT) Sensor
10 - X111
11 - X110
