Powertrain Component Views

Powertrain Component Views

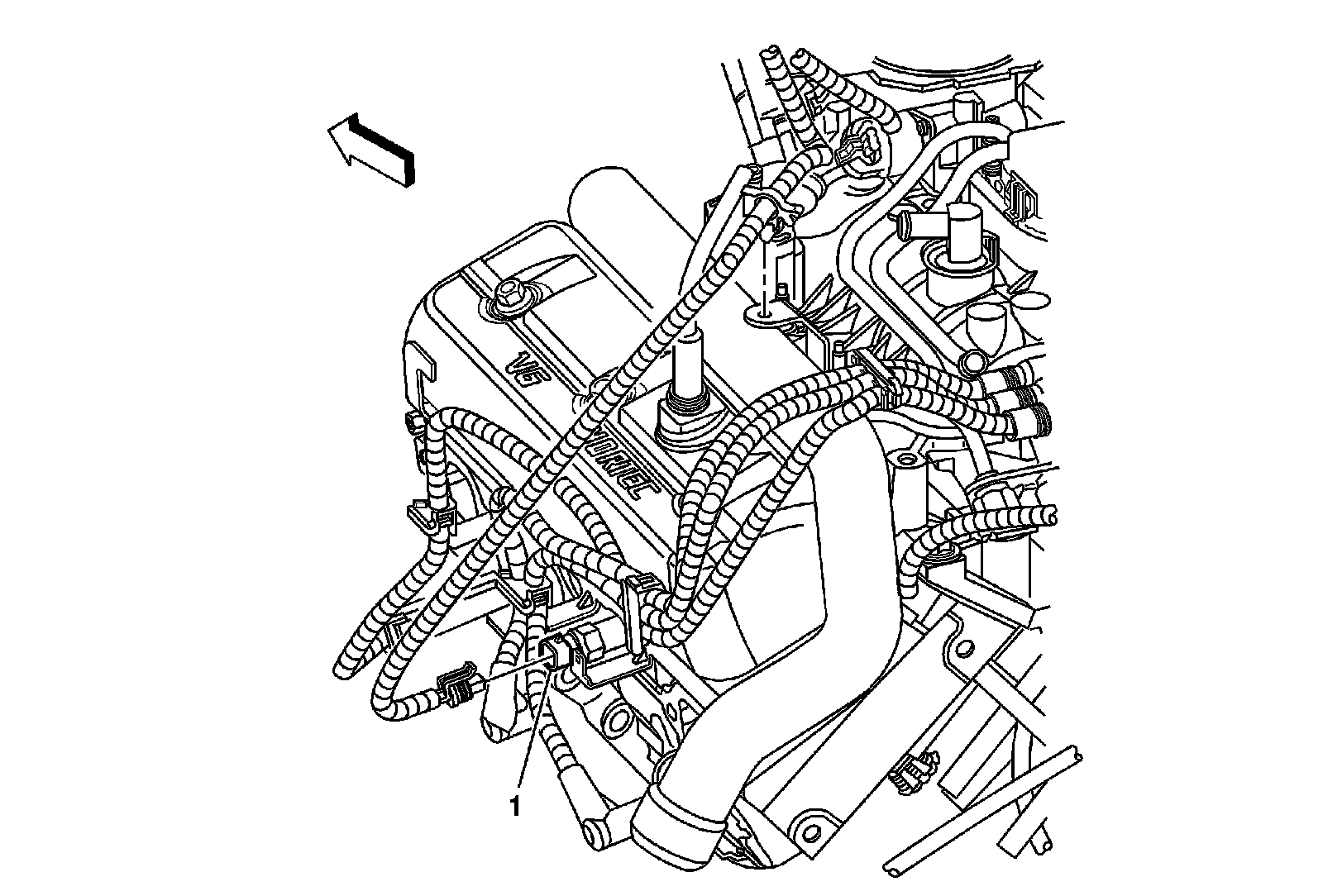

Left Rear of the Engine (LU3)




1 - Engine Coolant Temperature (ECT) Sensor

Front of the Engine Components (L20, LMF or L96)




1 - Throttle Body
2 - Manifold Absolute Pressure (MAP) Sensor
3 - Evaporative Emission (EVAP) Canister Purge Solenoid Valve
4 - Knock Sensor (KS) 1
5 - Engine Coolant Temperature (ECT) Sensor
6 - Camshaft Position (CMP) Sensor
7 - Generator

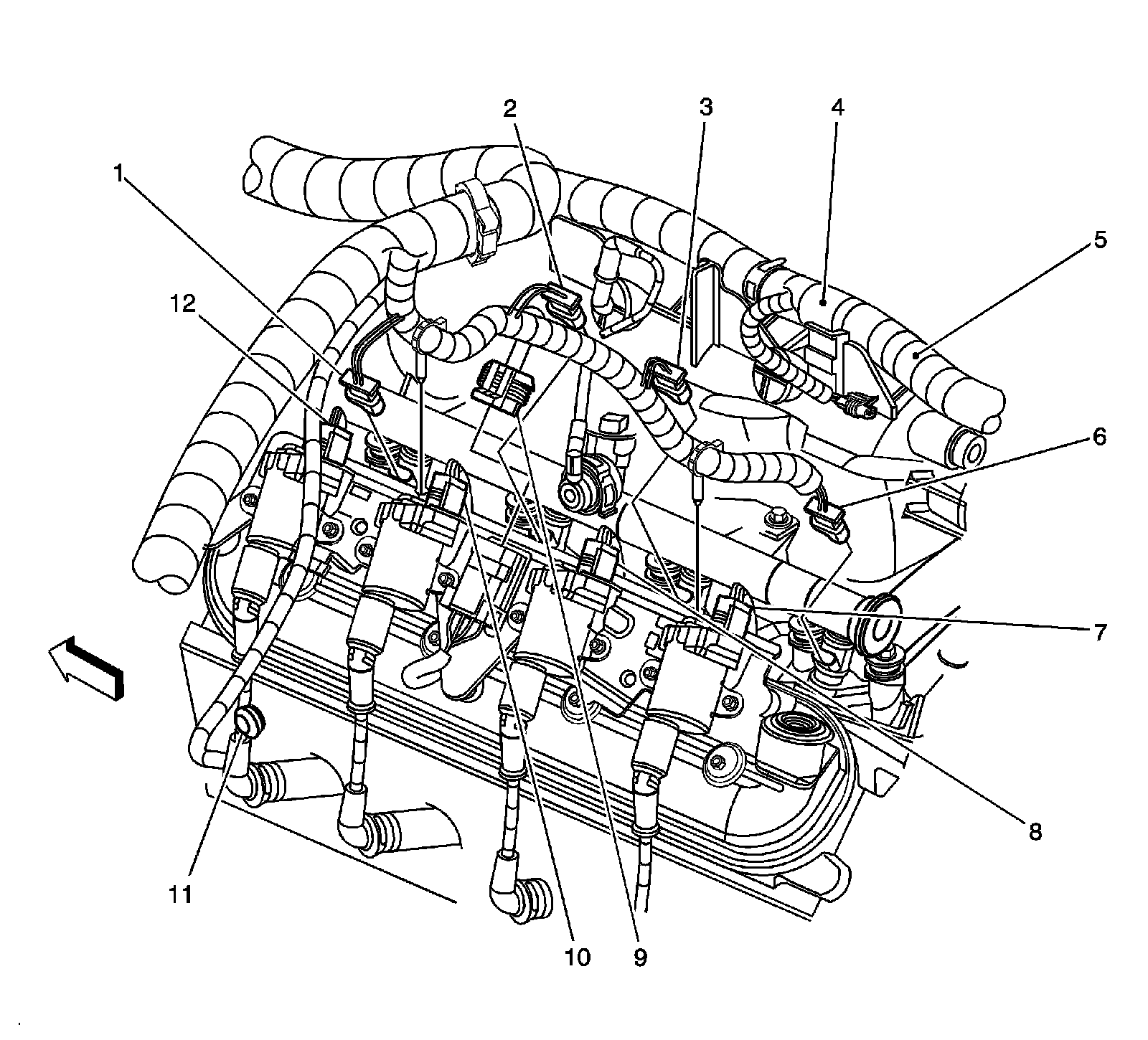

Upper Left Side of the Engine (L20, LMF or L96)




1 - Fuel Injector 1 Connector
2 - Fuel Injector 3 Connector
3 - Fuel Injector 5 Connector
4 - J101
5 - J102
6 - Fuel Injector 7 Connector
7 - Ignition Coil 7 Connector
8 - Ignition Coil 5 Connector
9 - X126
10 - Ignition Coil 3 Connector
11 - Engine Coolant Temperature (ECT) Sensor Connector
12 - Ignition Coil 1 Connector

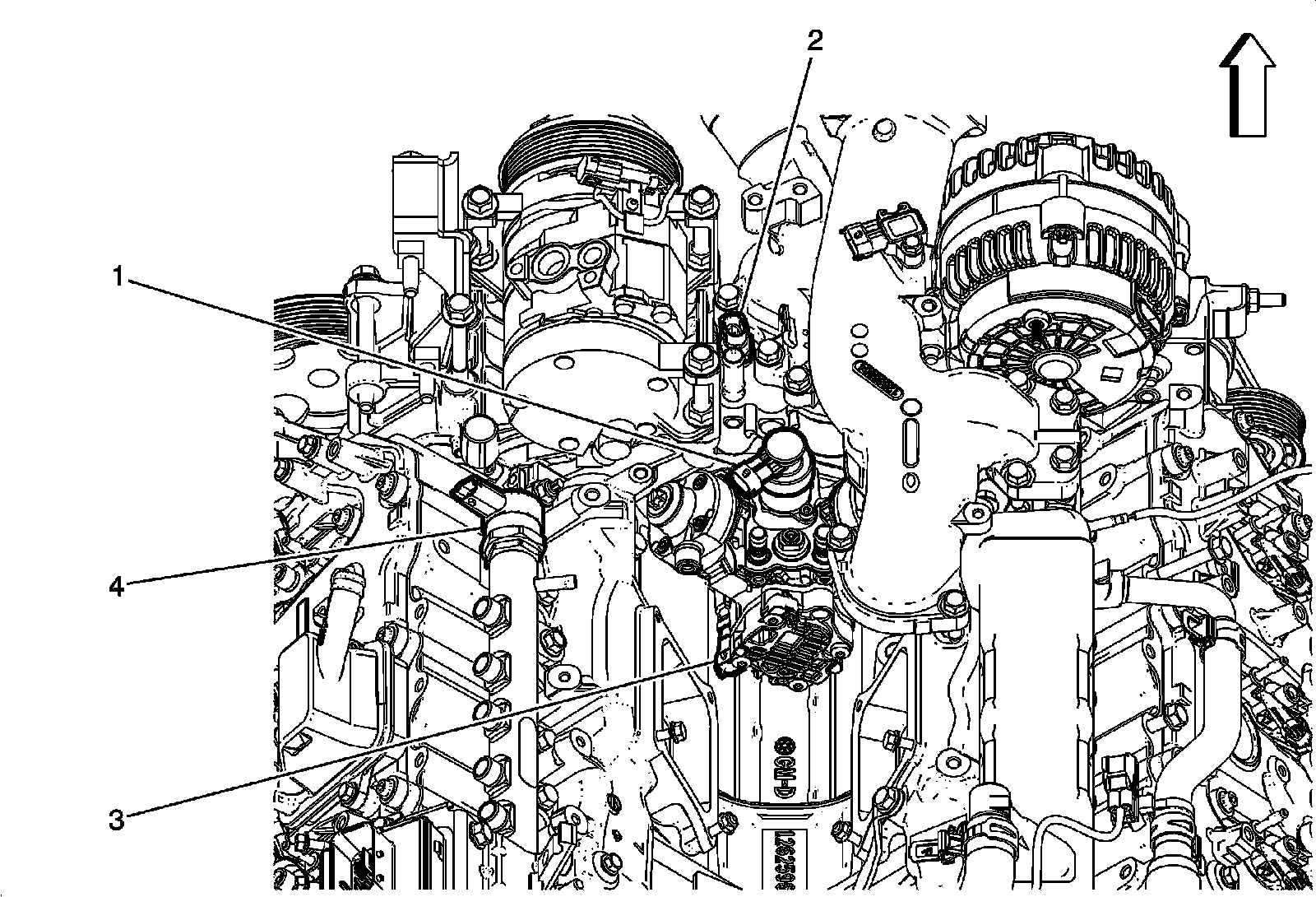

Top of the Engine Components (LGH)




1 - Fuel Pressure Regulator 1
2 - Engine Coolant Temperature (ECT) Sensor
3 - Fuel Temperature Sensor 1
4 - Fuel Pressure Regulator 2

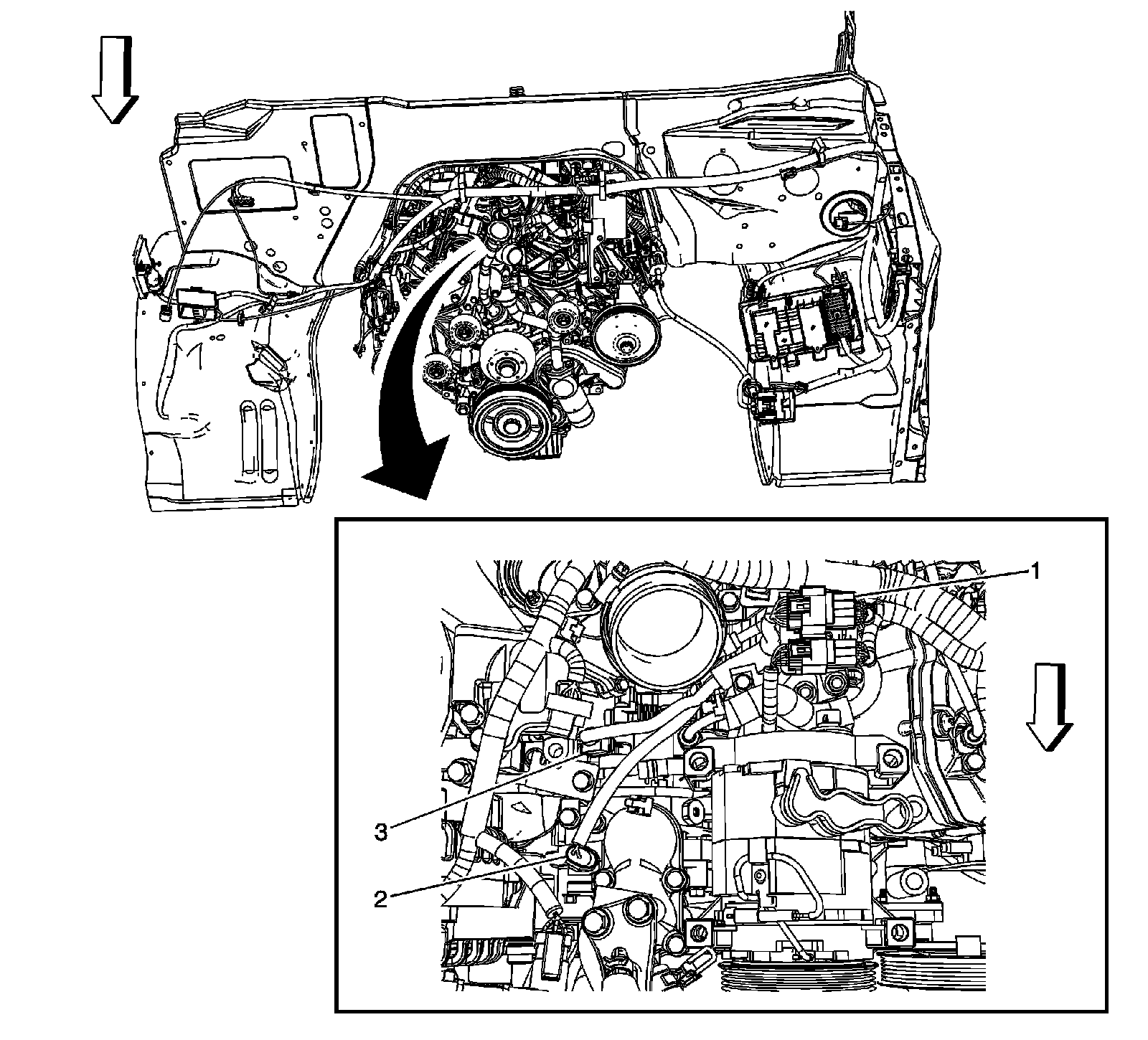

Top of Engine (LMM)




1 - X111
2 - Engine Coolant Temperature (ECT) Sensor
3 - Fuel Pressure Regulator
