Fuel Level Sensor: Locations

Wheels/Vehicle Underbody Component Views

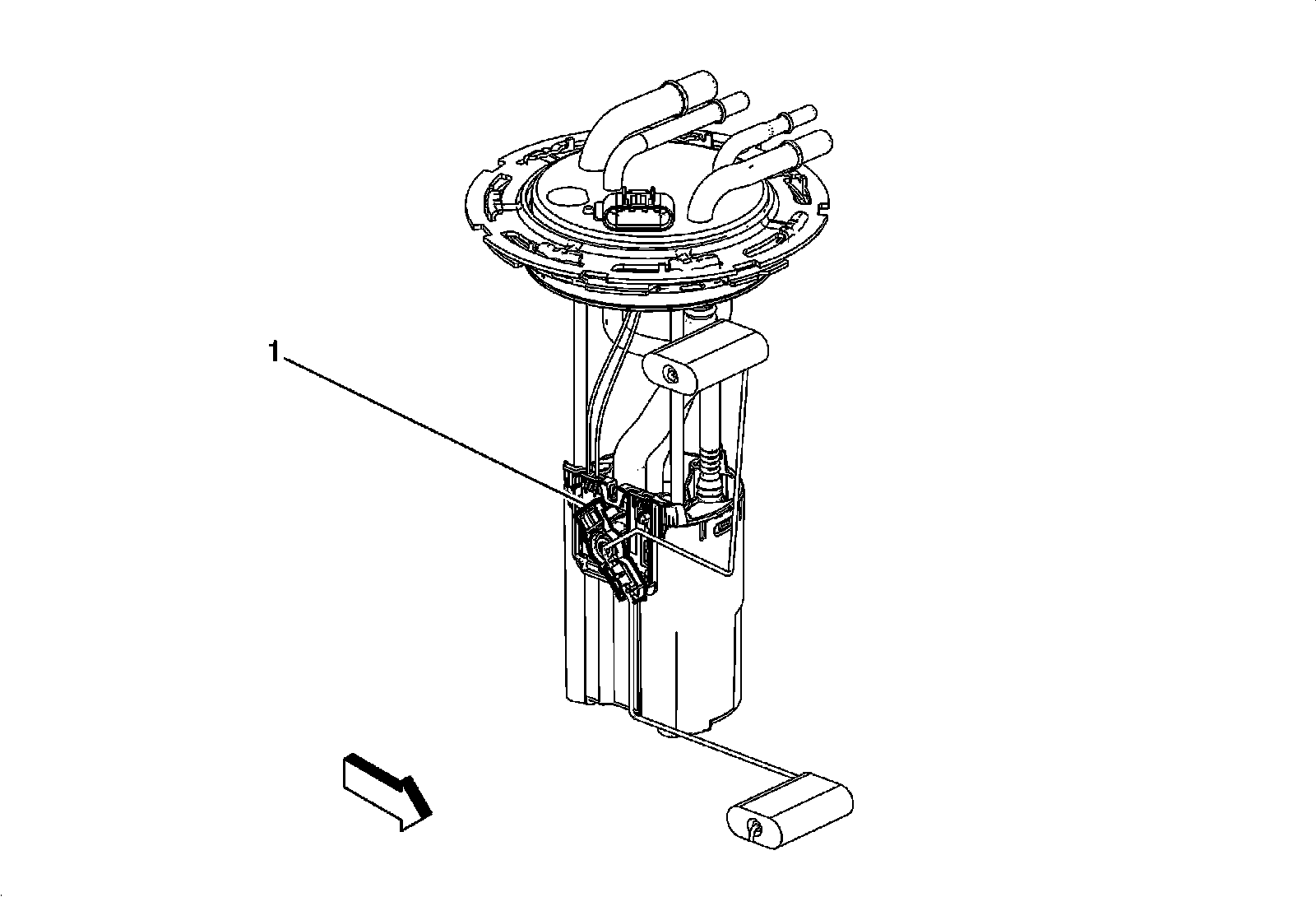

Inside of Fuel Tank Components (LGH)




1 - Fuel Level Sensor

Wheels/Vehicle Underbody Component Views

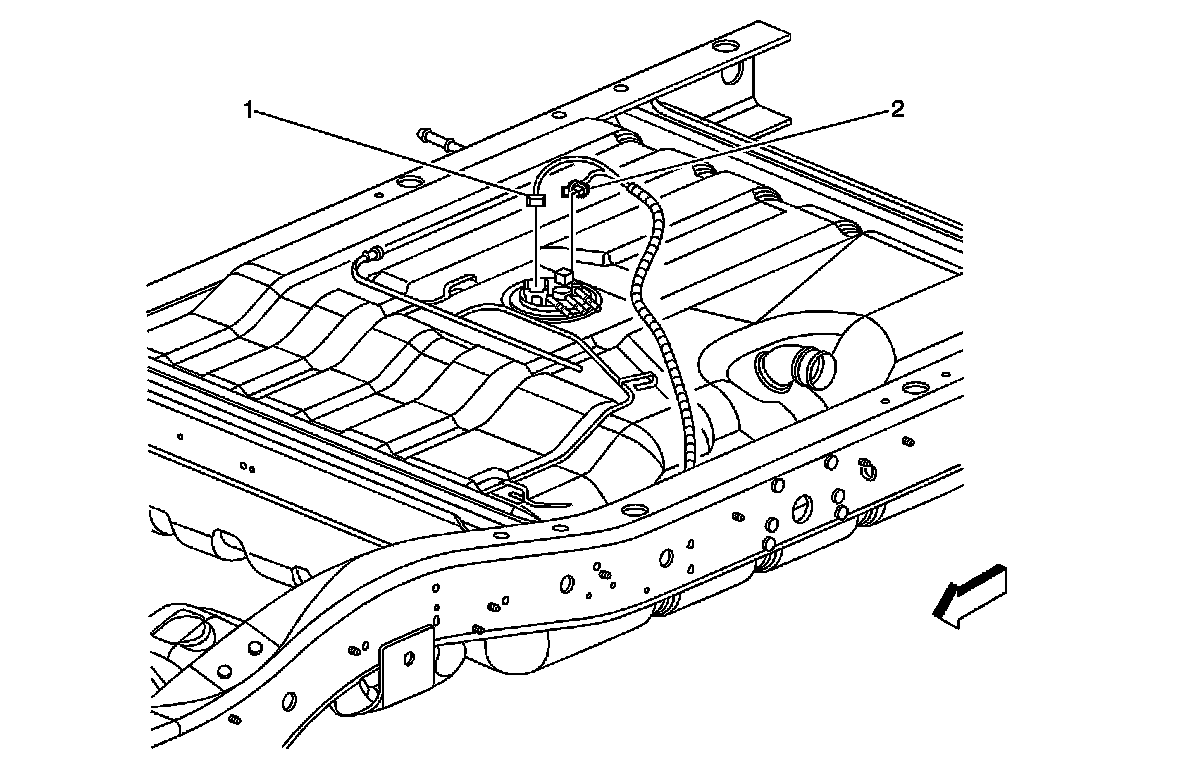

Fuel Tank (NE7)




1 - Fuel Tank Pressure (FTP) Sensor Connector (Gas)
2 - Fuel Pump and Sender Assembly Connector (Gas)/Fuel Level Sensor (Diesel)

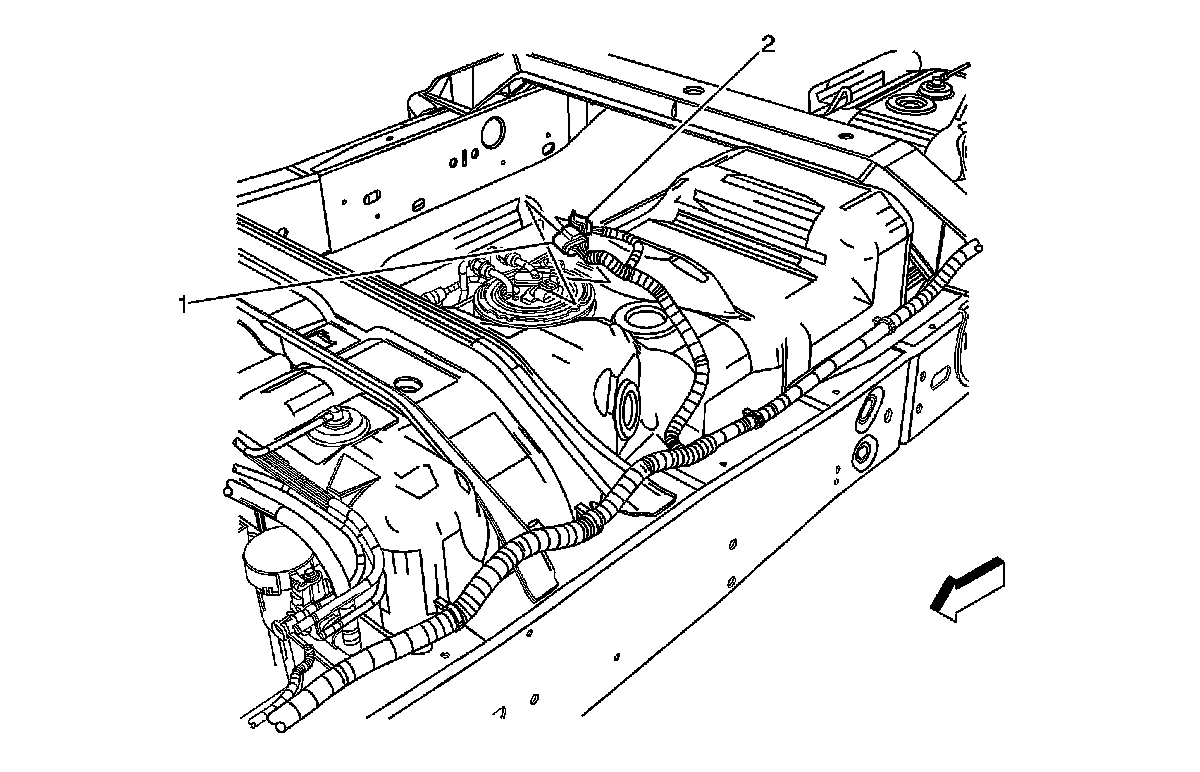

Fuel Tank (without NE7)




1 - Fuel Pump and Sender Assembly Connector (Gas)/Fuel Level Sensor (Diesel)
2 - Fuel Tank Pressure (FTP) Sensor Connector (Gas)

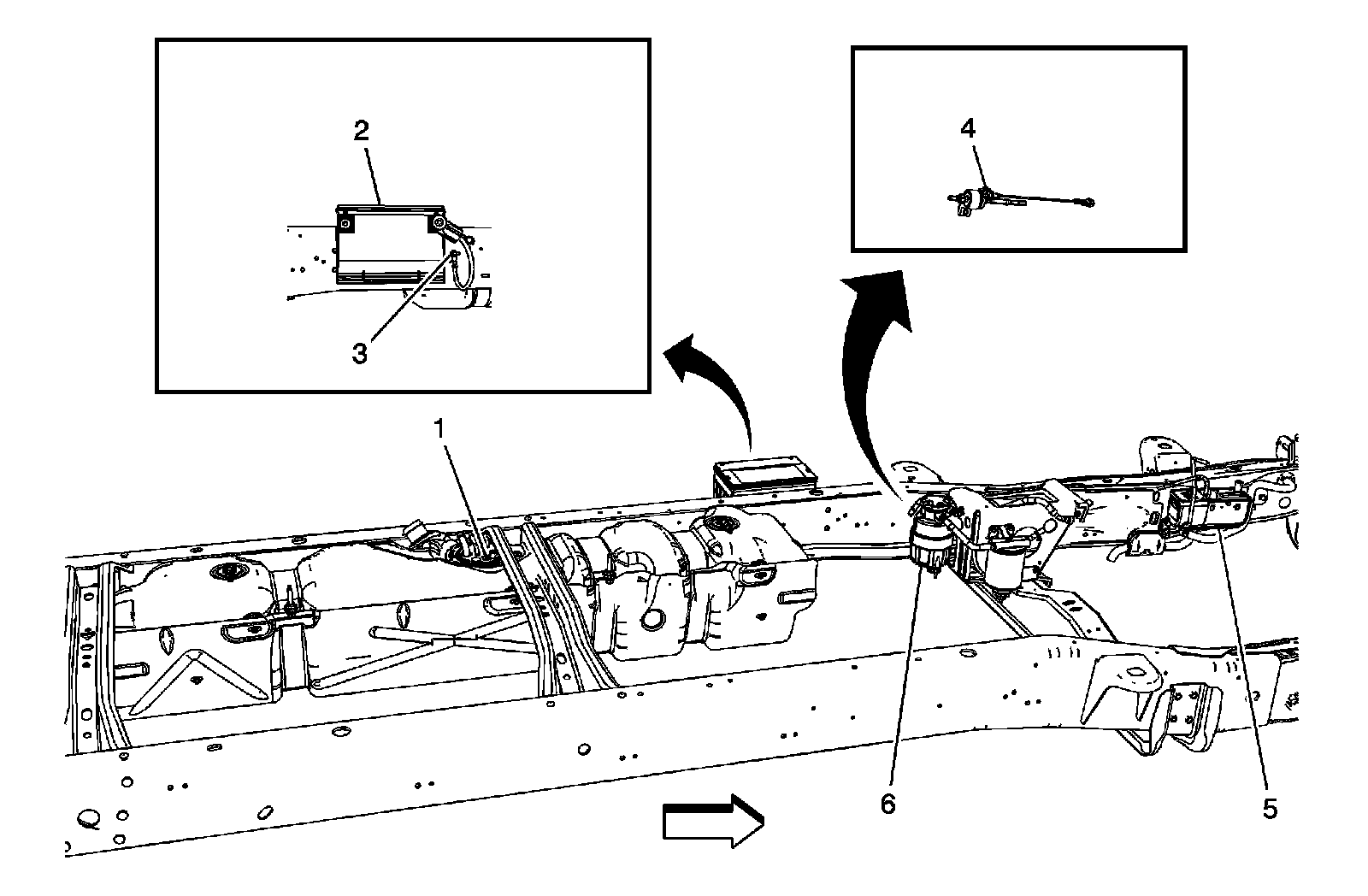

Left Side Frame (LMM or LGH)




1 - Fuel Level Sensor Connector
2 - Battery - Auxiliary
3 - G305
4 - Coolant Heater Fuel Pump (K08)
5 - Coolant Heater (K08)
6 - Fuel Pump
