Transmission Position Sensor/Switch: Locations

Powertrain Component Views

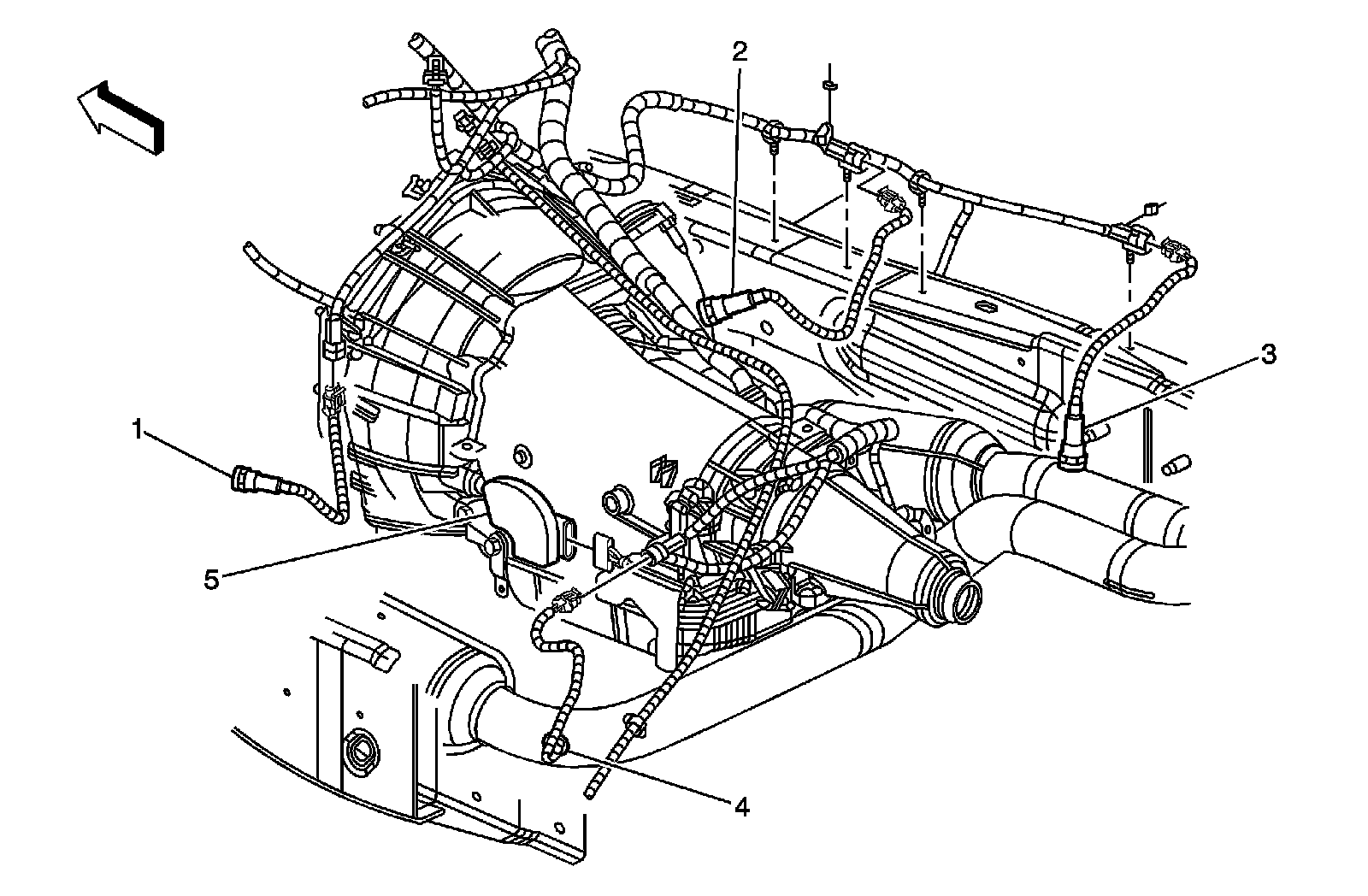

Rear of the Engine (LU3 or LMF)




1 - Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1
2 - Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1
3 - Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2
4 - Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2
5 - Park/Neutral Position (PNP) Switch
