System Diagram




Component Connector End Views

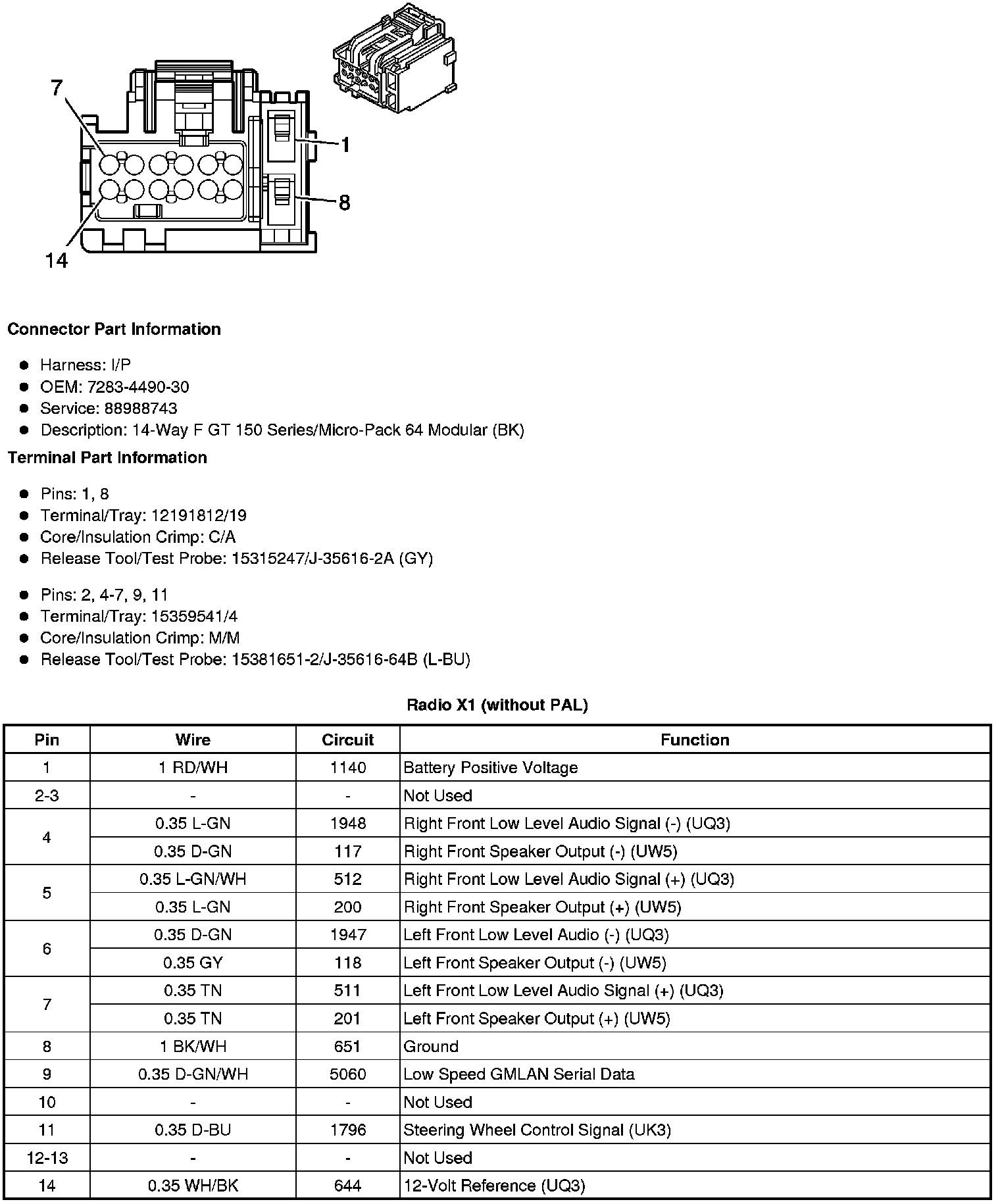

Radio X1 (without PAL)

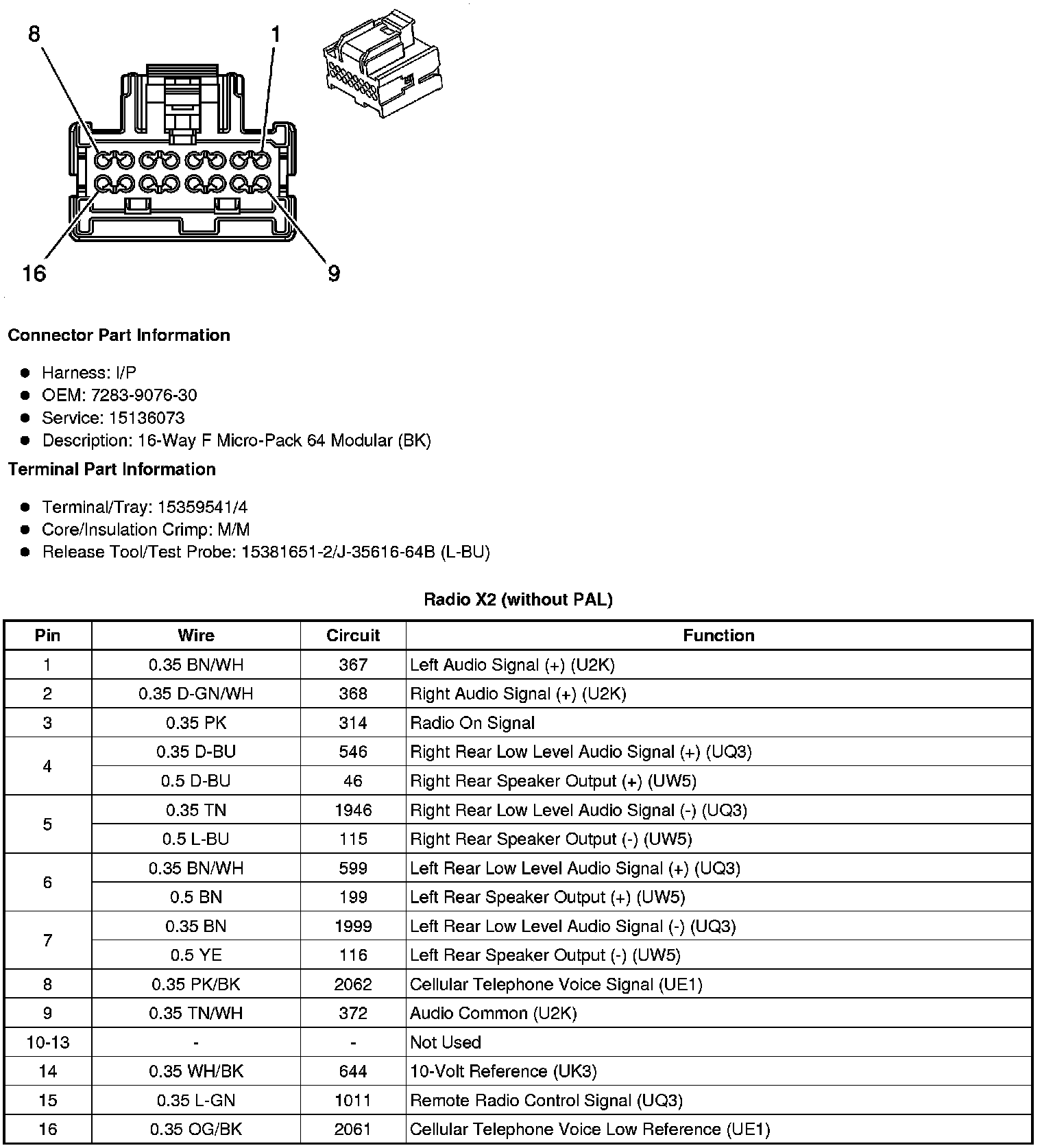

Radio X2 (without PAL)

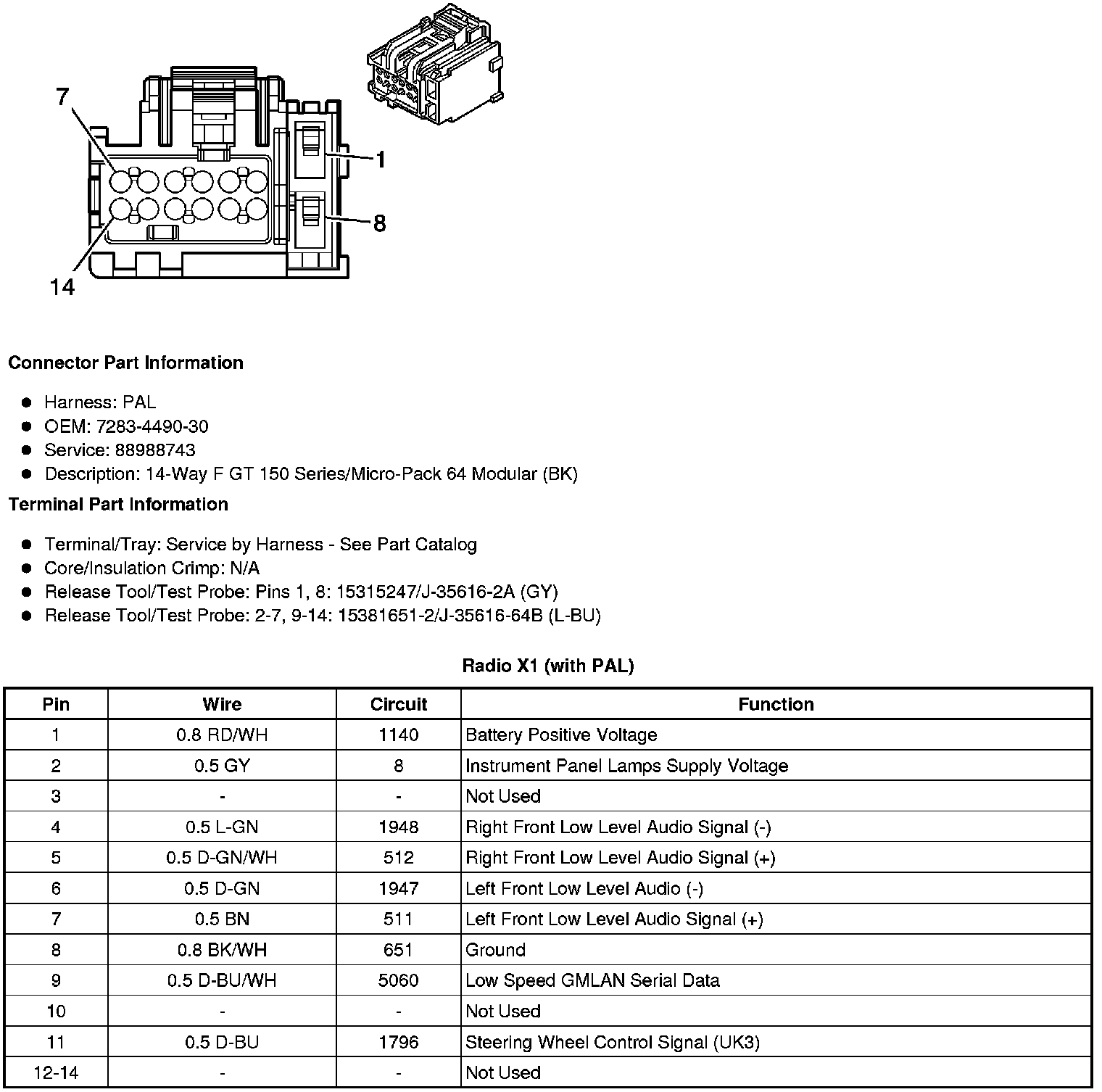

Radio X1 (with PAL)

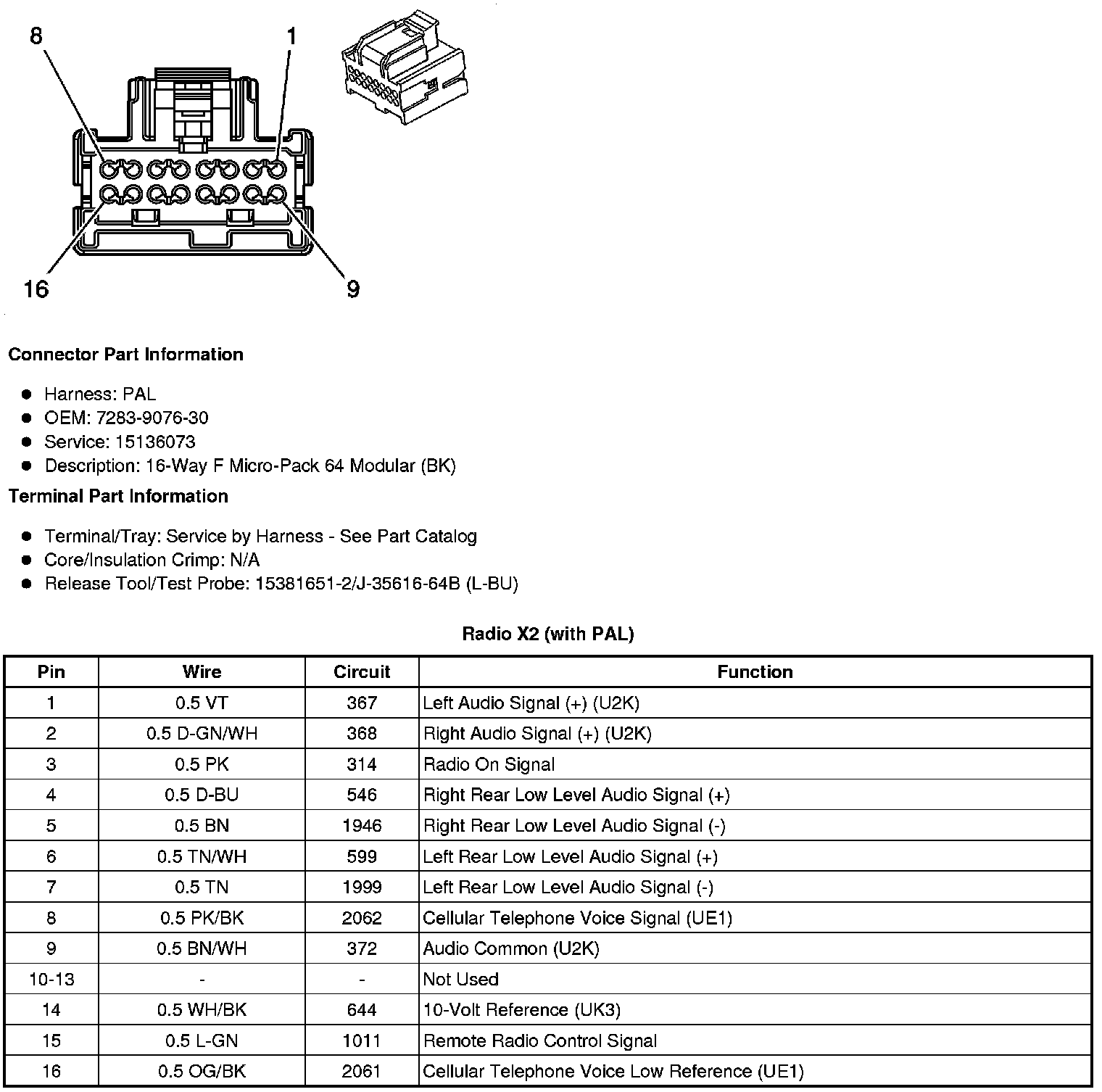

Radio X2 (with PAL)
