Front of Vehicle/Engine Compartment Component Views

Fig 1: Front Of Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Park / Turn Signal / DRL Lamp - Right Front
2	Headlamp - Right
3	Headlamp - Left
4	Park / Turn Signal / DRL Lamp - Left Front
5	Marker Lamp - Left Front
6	Fog Lamp - Left Front (T37)
7	Fog Lamp - Right Front (T37)
8	Marker Lamp - Right Front

Fig 2: Ambient Air Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Ambient Air Temperature Sensor

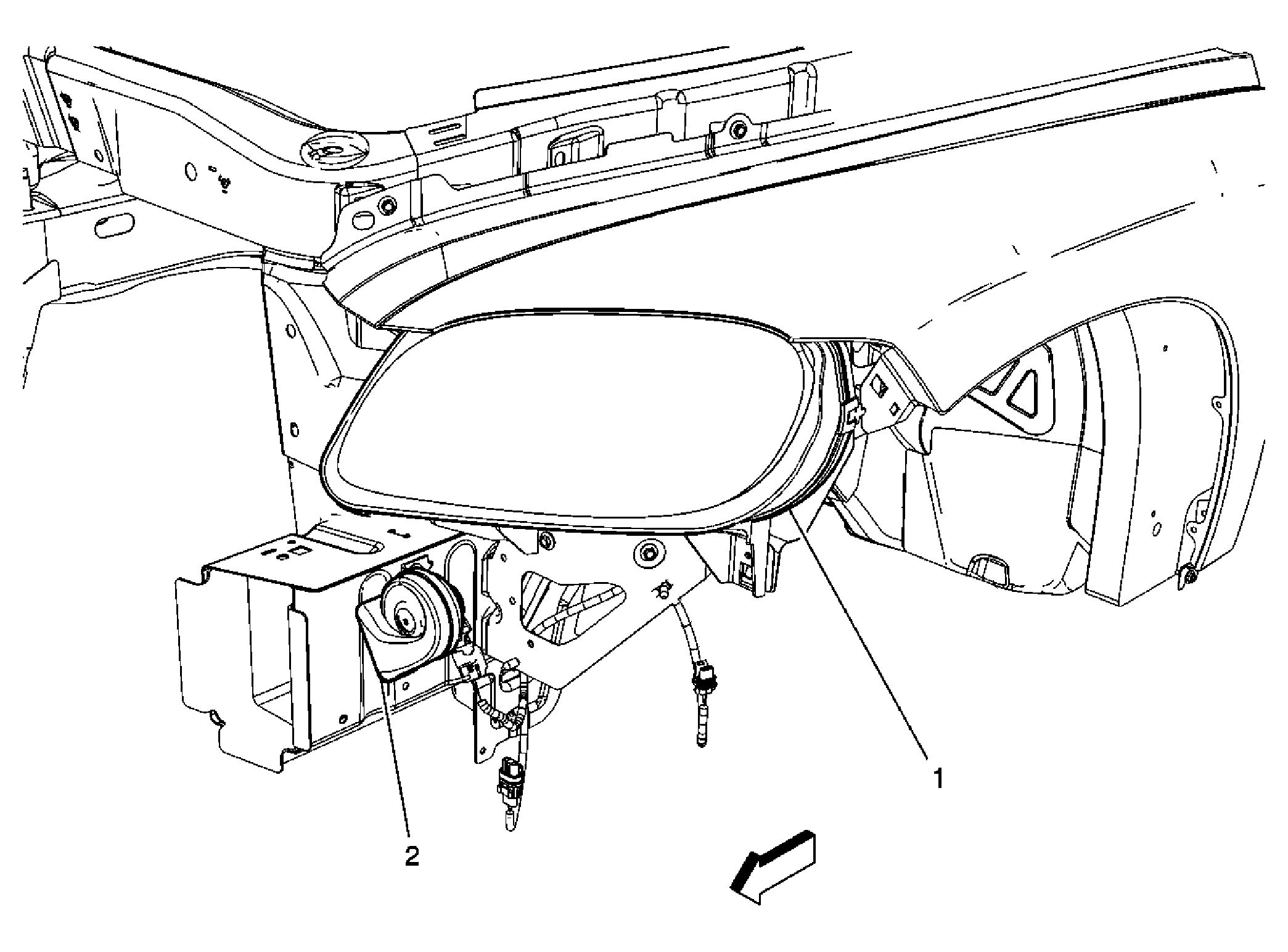

Fig 3: Left Front Of Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Upper Radio Support
2	Left Front Headlamp Assembly
3	Horn

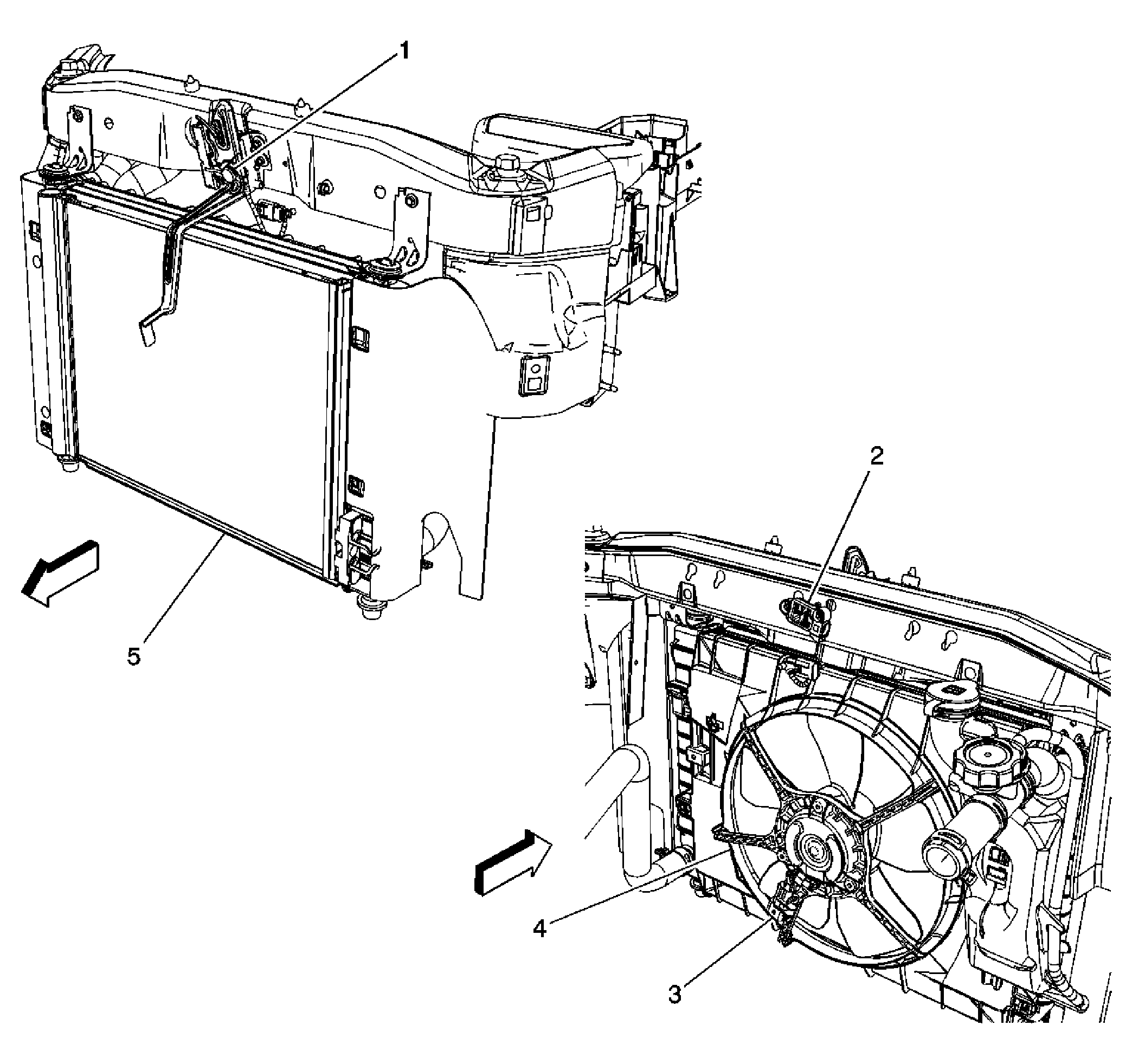

Fig 4: Engine Compartment - Front

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Hood Ajar Switch (AP3)
2	Inflatable Restraint Front End Sensor
3	Engine Cooling Fan Module (LNF)
4	Engine Cooling Fan
5	Radiator

Fig 5: Engine Compartment - Left Side

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G109
2	Liftgate Relay Block (Panel Van)
3	Transmission Control Module (TCM) (MN5)
4	Engine Control Module (ECM)

Fig 6: Left Side Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transmission Control Module (TCM) (MN5)
2	Left Front Strut Tower
3	Engine Control Module (ECM)
4	Electronic Brake Control Module (EBCM) (JM4/JL9)
5	Fuse Block - Underhood Bracket

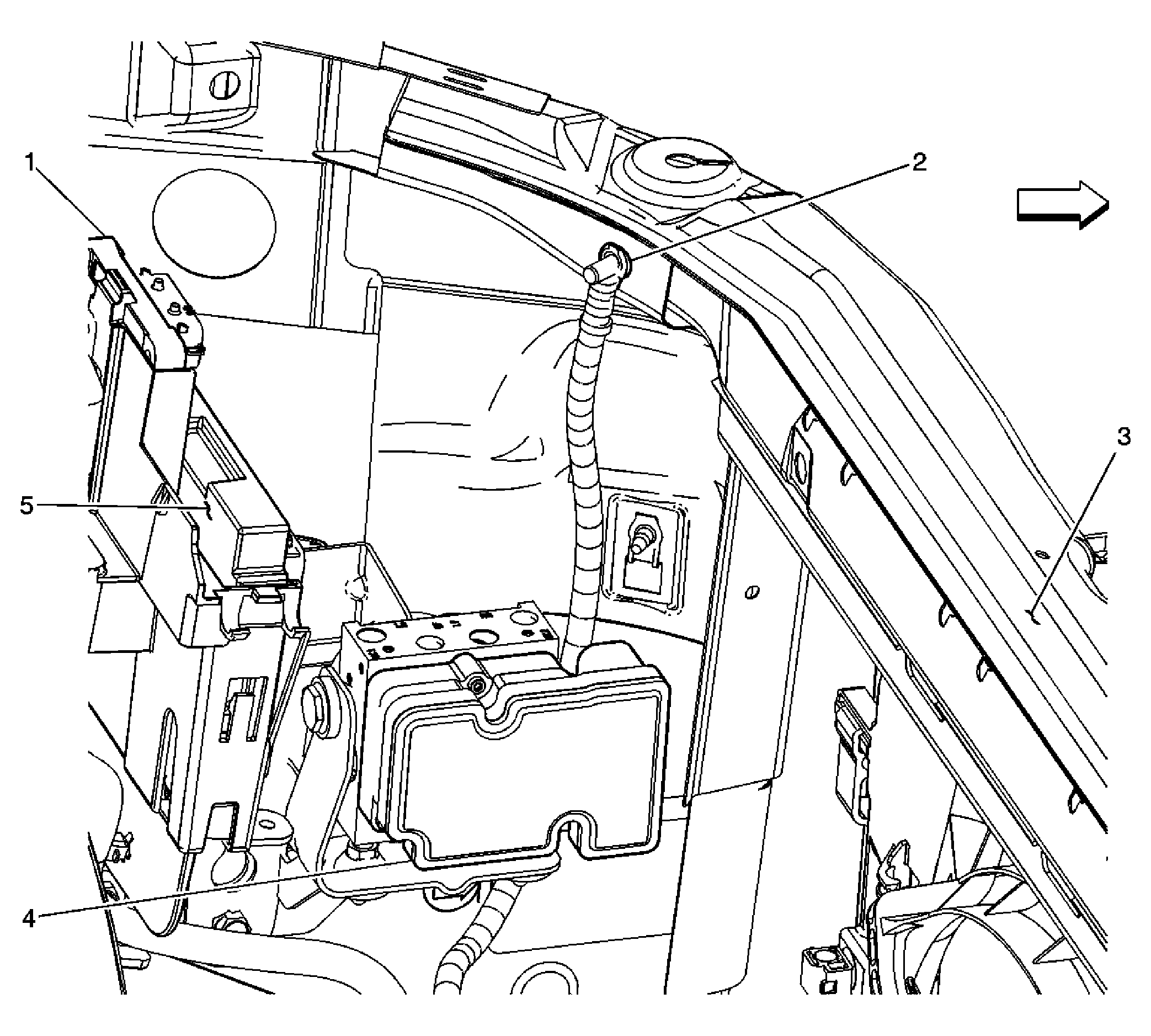

Fig 7: G103

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Transmission Control Module (TCM)
2	G103
3	Upper Radiator Support
4	Electronic Brake Control Module (EBCM)
5	Engine Control Module (ECM)

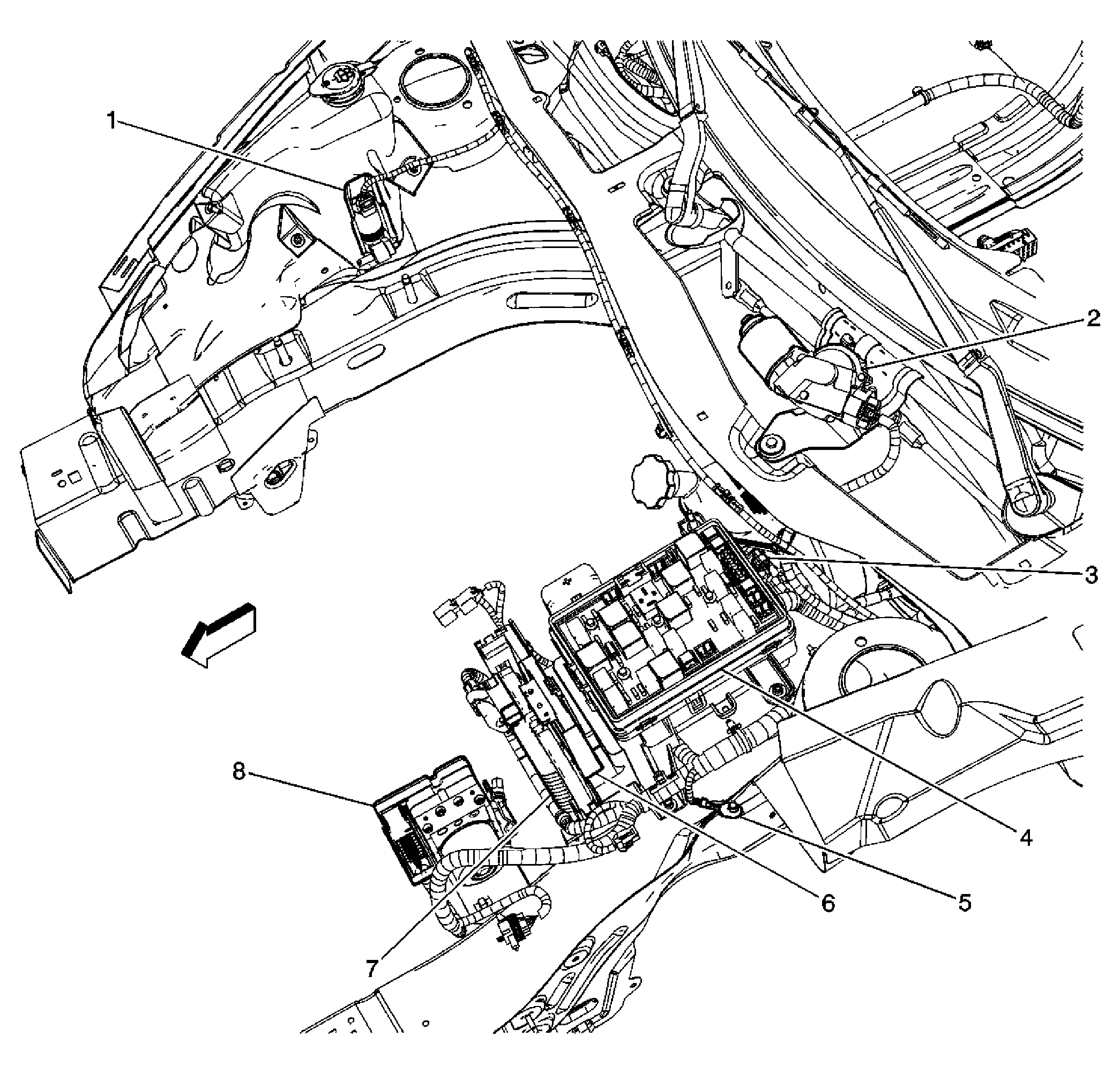

Fig 8: Left Front Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Washer Fluid Pump
2	Windshield Wiper Motor Assembly
3	Brake Fluid Level Switch
4	Fuse Block - Underhood
5	G111
6	Transmission Control Module (TCM) (MN5)
7	Engine Control Module (ECM)
8	Electronic Brake Control Module (EBCM)
