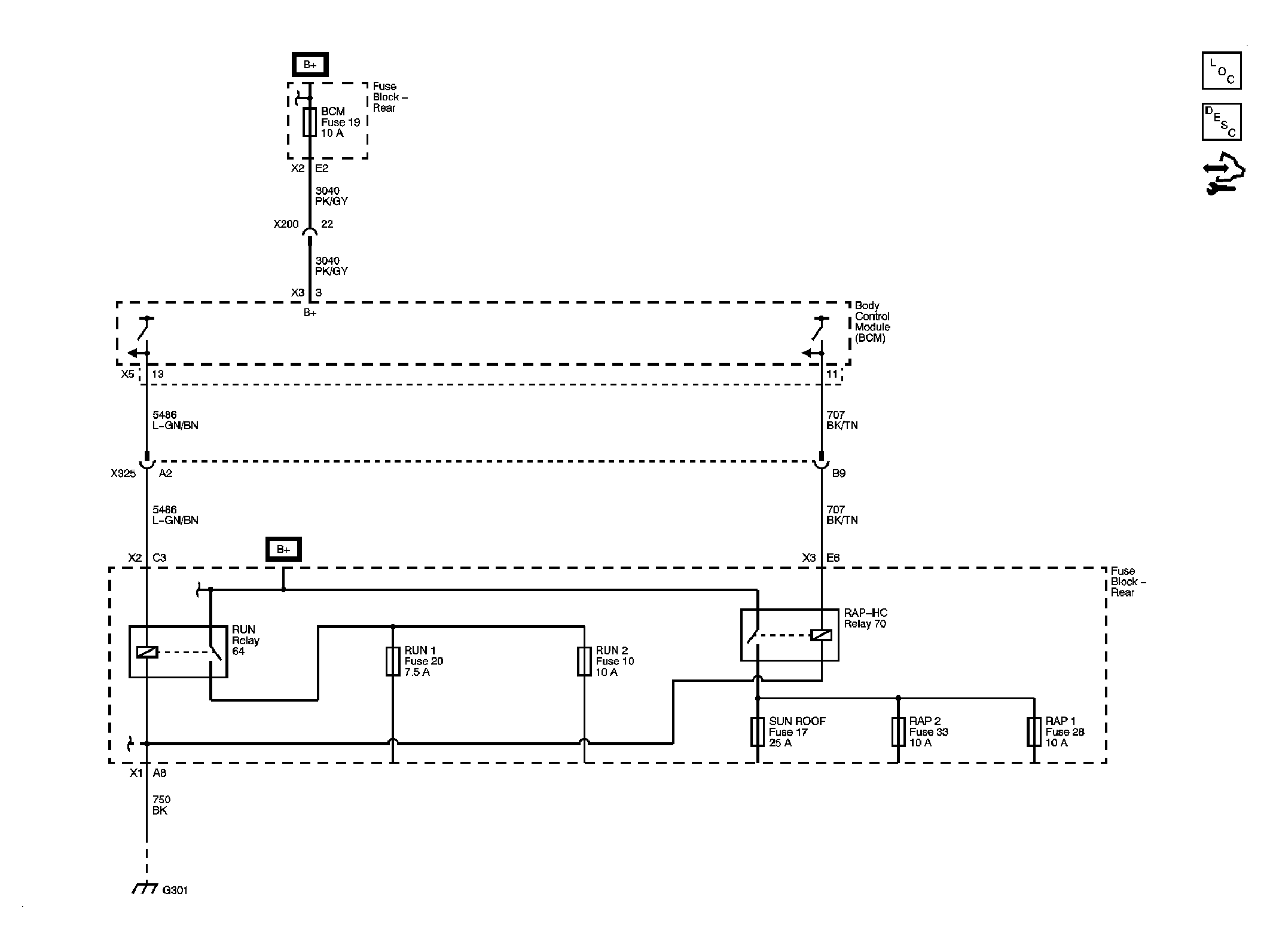

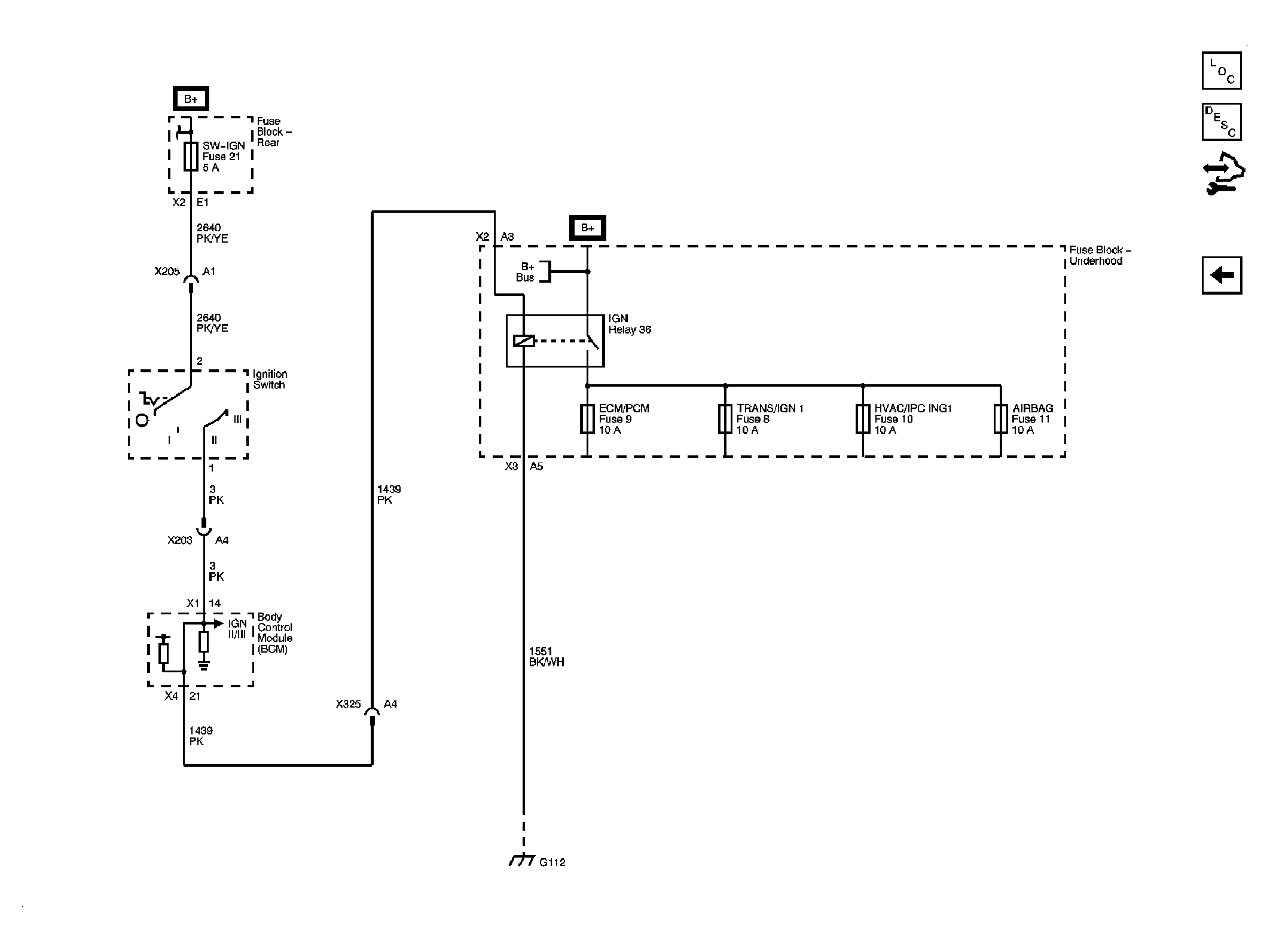

Power Moding Schematics
WARNING: This page is about a different car, the 2008 Buick Lucerne. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
