Accessory Wiring Junction Block Replacement

Accessory Wiring Junction Block Replacement

Removal Procedure

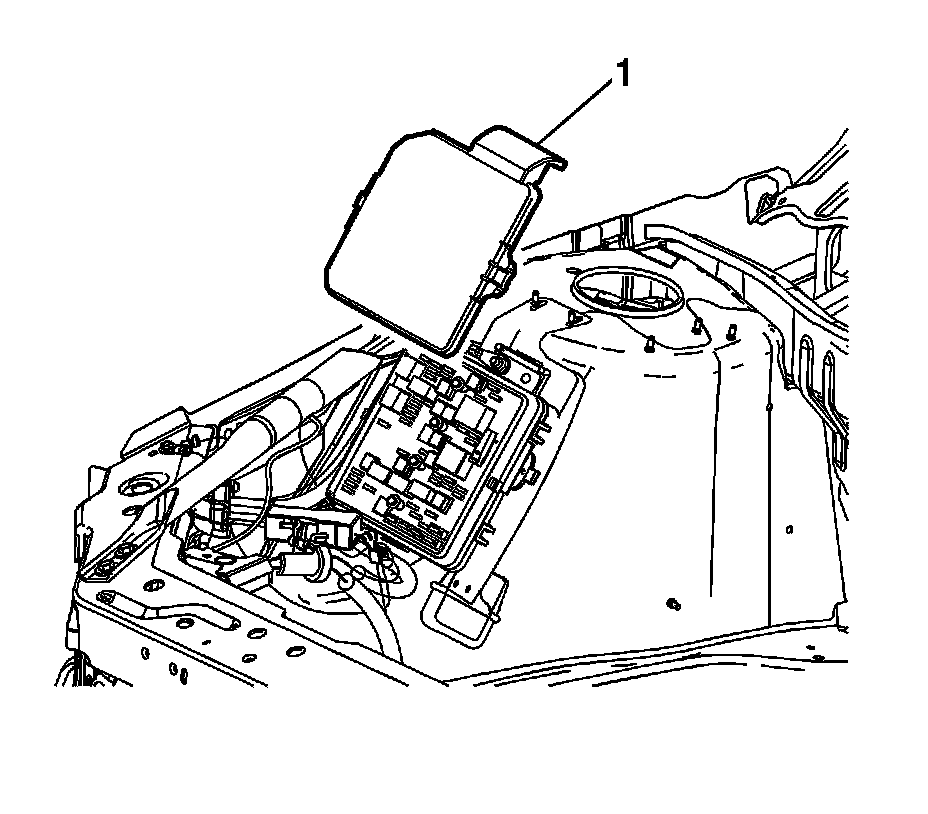

1. Remove the electrical center cover (1).
2. Disconnect the positive battery cable from junction box. Refer to Battery Positive and Negative Cable Replacement (RPOs LZE/LZ4/LGD) (Battery Positive and Negative Cable Replacement).

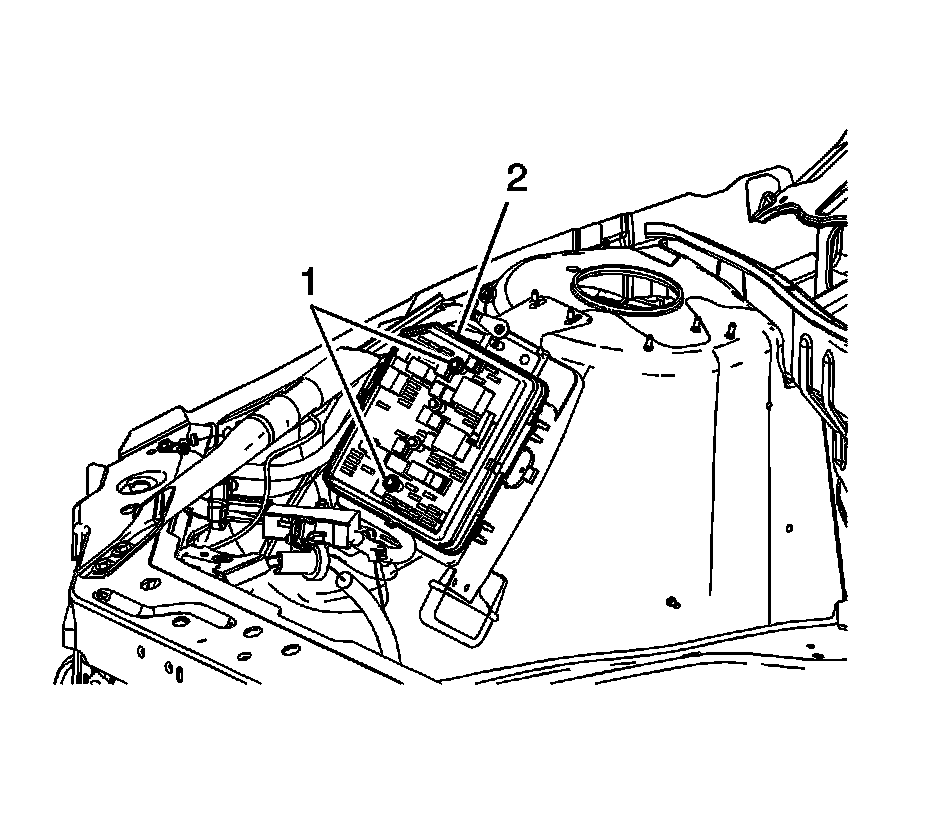

3. Remove the fasteners (1) securing the electrical center board (2).
4. Unlock the tabs on the electrical center board.
5. Lift up on the electrical center board.

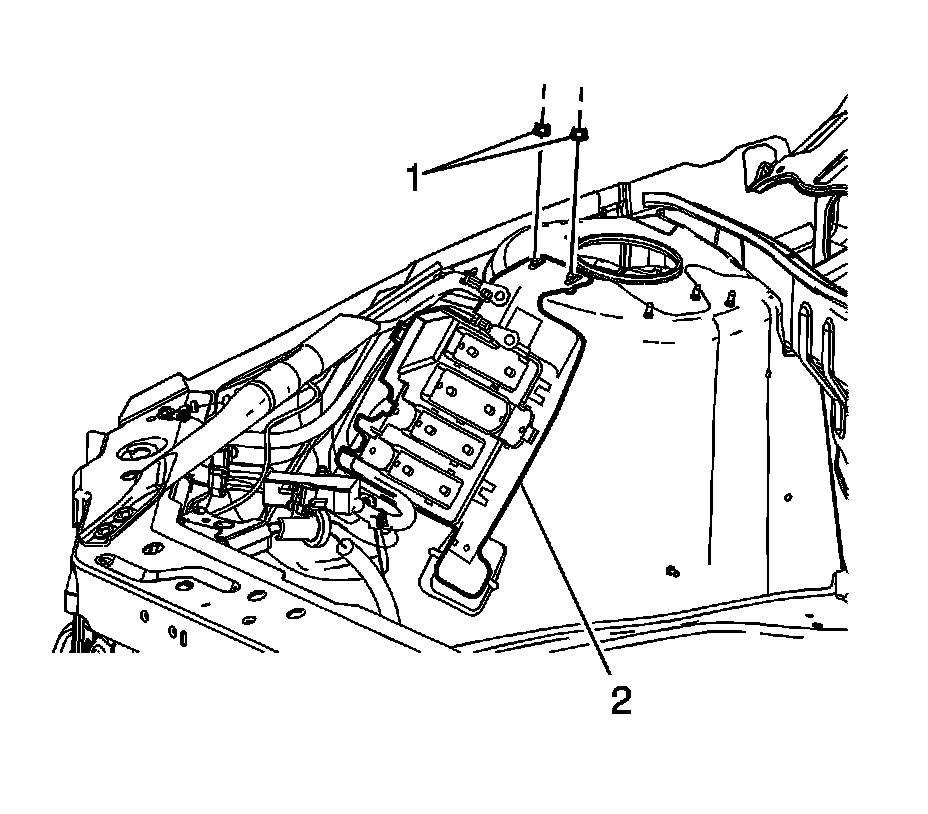

6. Remove the fasteners (1) securing the electrical center bracket (2) to vehicle.

Installation Procedure

Notice: Refer to Fastener Notice.




1. Install fasteners (1) securing the electrical center (2) to vehicle.

Tighten the fasteners to 10 Nm (86 lb in).




2. Install the fasteners (1) securing the electrical center board (2).

Tighten the fasteners to 7 Nm (62 lb in).

3. Connect the positive battery cable. Refer to Battery Positive and Negative Cable Replacement (RPOs LZE/LZ4/LGD) (Battery Positive and Negative Cable Replacement).




4. Install the electrical center cover (1).
