Installation Procedure

    Fig 1: View Of Upper Intake Manifold
    GM1775003Courtesy of GENERAL MOTORS CORP.
  1. Install a NEW throttle body gasket (7).
  2. Install the throttle body (8).
    3. CAUTION: Refer to Fastener Caution .
  3. Install the throttle body bolts (9) and nuts (10).

    Tighten:  Tighten the bolts/nuts to 10 N.m (89 lb in).

    4. Fig 2: Identifying Heater Inlet And Outlet Pipe Nuts
    GM1774995Courtesy of GENERAL MOTORS CORP.
  4. Reposition the heater inlet and outlet pipes and install the pipe bracket to the throttle body studs.
  5. Install the heater inlet and outlet pipe nuts (1).

    Tighten:  Tighten the nuts to 10 N.m (89 lb in).

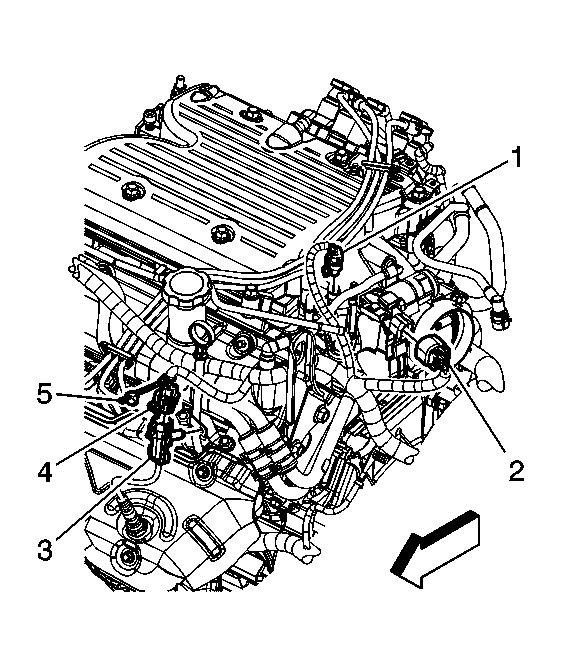

    6. Fig 3: Identifying Engine Wiring Harness Electrical Connector
    GM1774876Courtesy of GENERAL MOTORS CORP.
  6. Connect the engine wiring harness electrical connector (2) to the ETC.
  7. Install the air cleaner outlet duct. Refer to Air Cleaner Outlet Duct Replacement .
  8. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement .
  9. Perform the Throttle Learn Procedure. Refer to Throttle/Idle Learn .
