Engine Controls Circuit Schematics

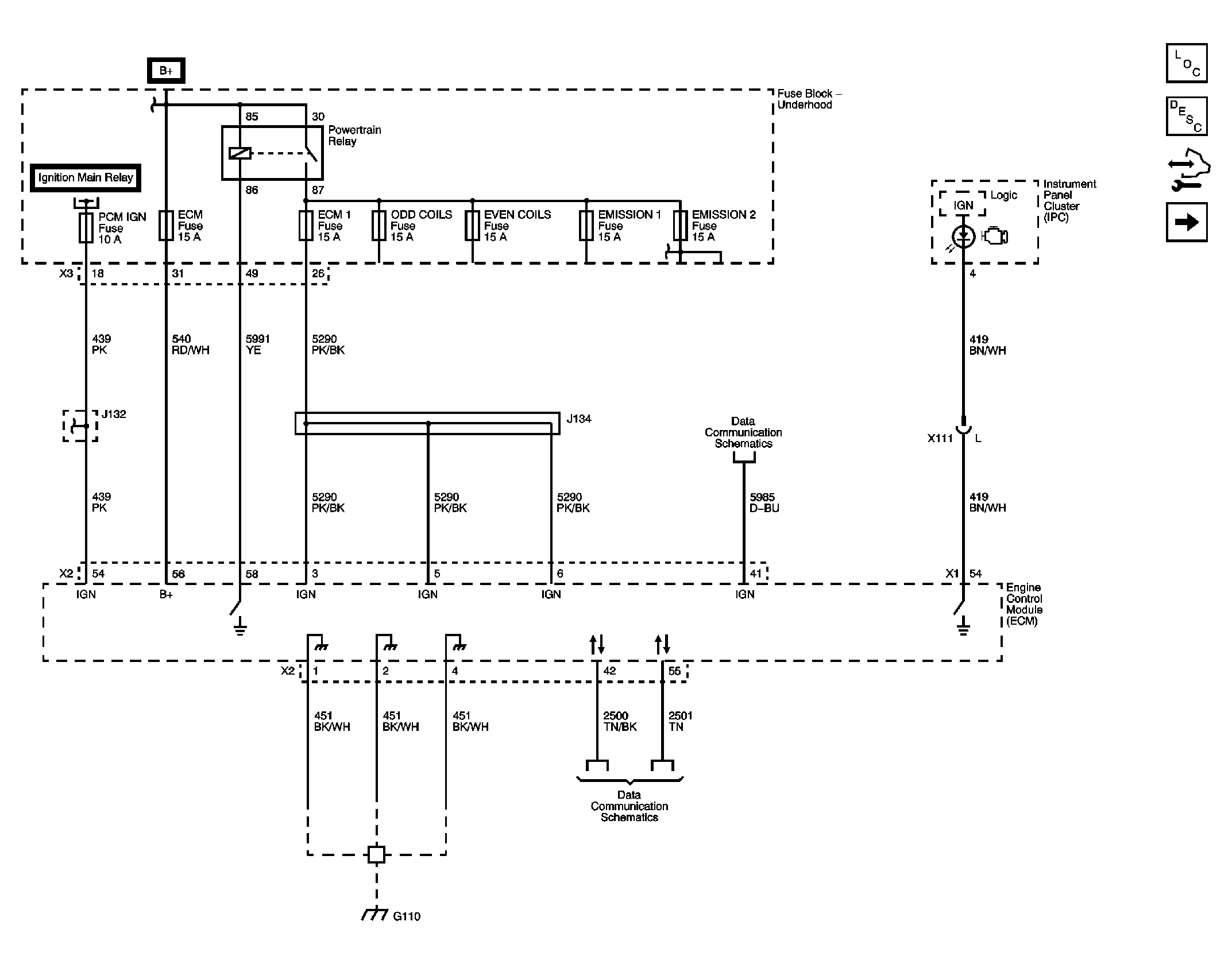

Fig 1: Module Power, Ground, Serial Data & MIL Circuit Schematic
GM2248121Courtesy of GENERAL MOTORS CORP.
Fig 2: 5V1 & Low Reference Bus Circuit Schematic
GM2248125Courtesy of GENERAL MOTORS CORP.

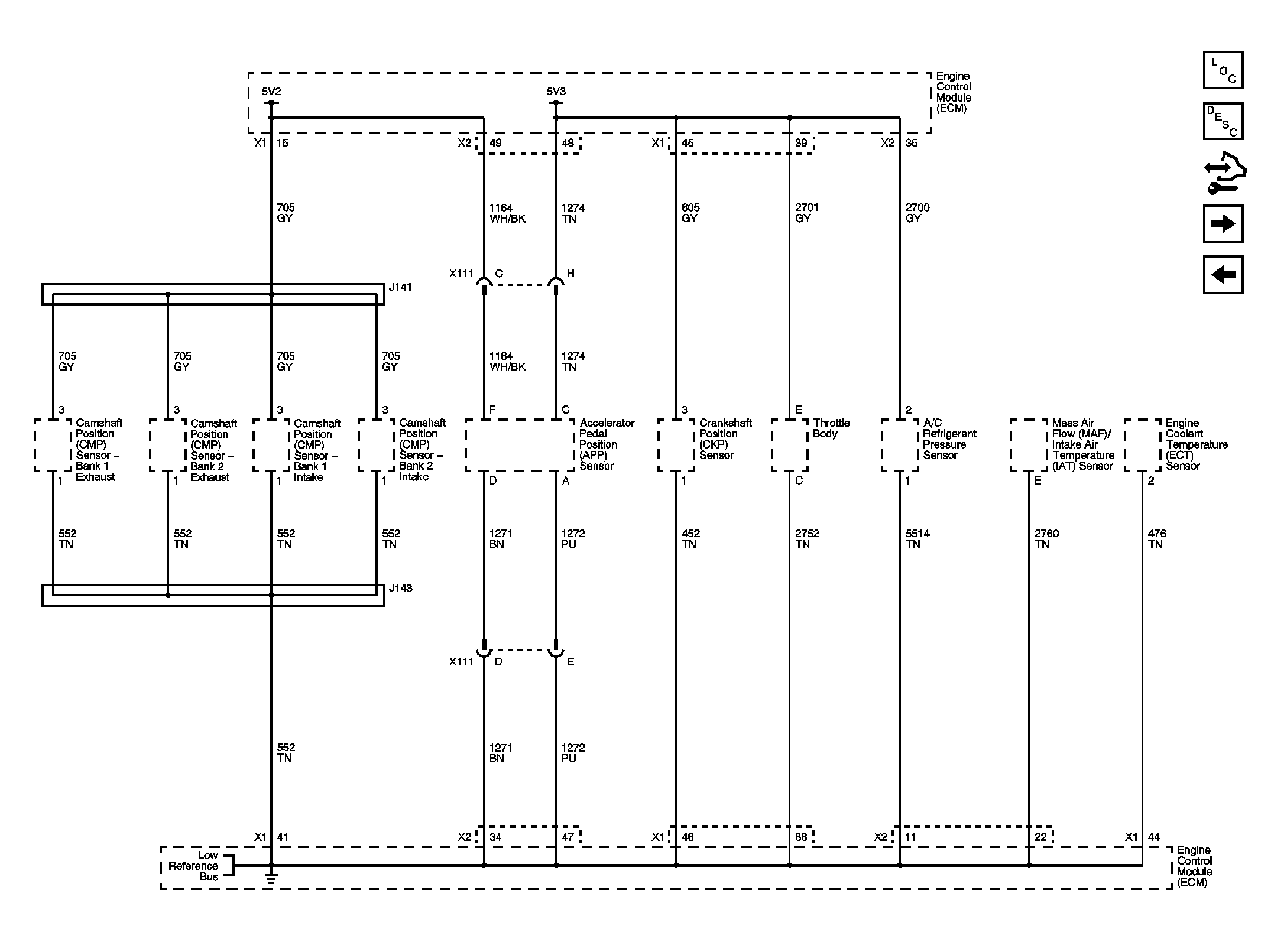

Fig 3: 5V2, 5V3 & Low Reference Busses Circuit Schematic
GM2248127Courtesy of GENERAL MOTORS CORP.

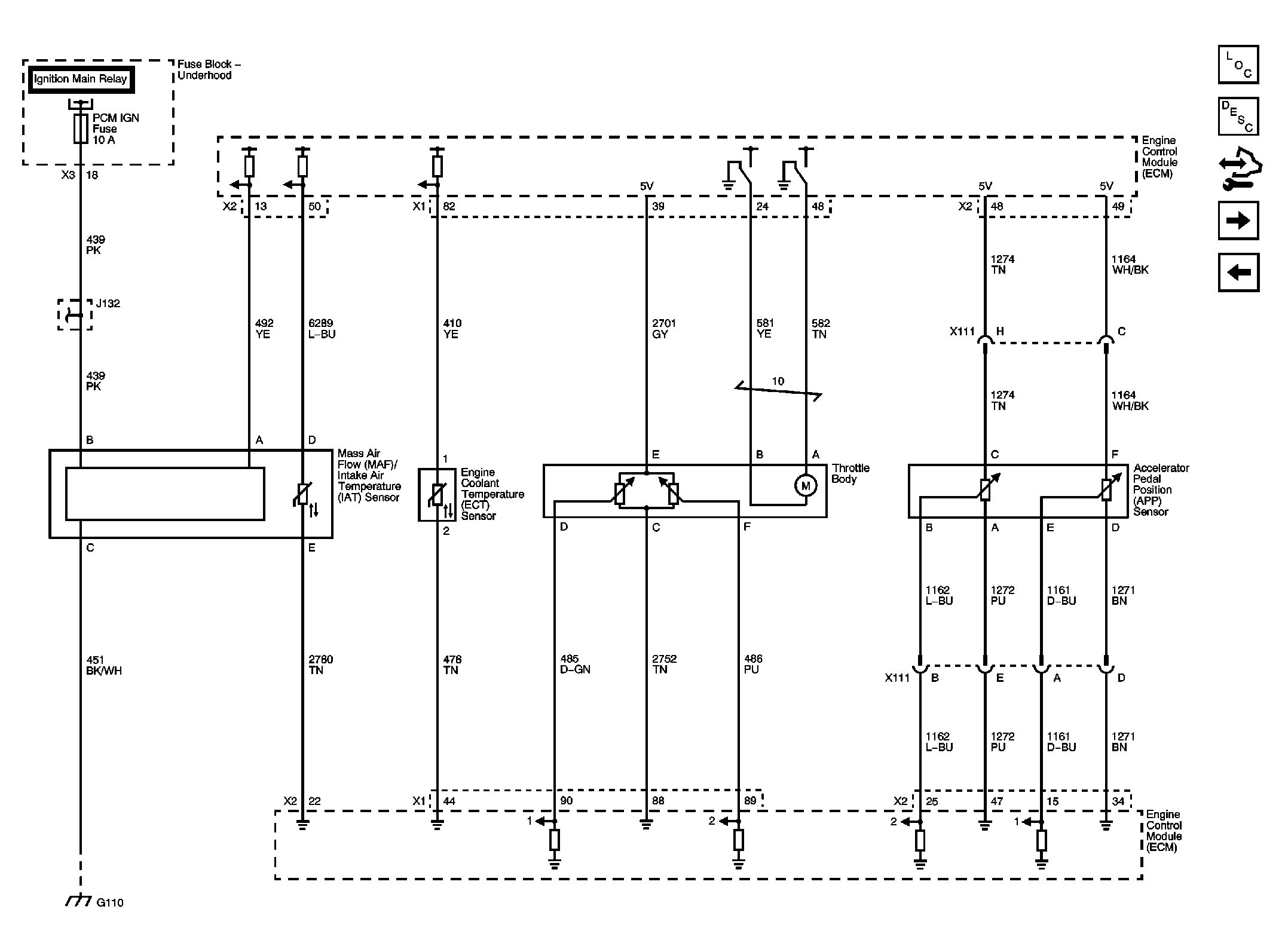

Fig 4: Engine Data Sensors Circuit Schematic - Pressure, Temperature, and Throttle Controls
GM2248130Courtesy of GENERAL MOTORS CORP.
Fig 5: Engine Data Sensors Circuit Schematic - Oxygen Sensors
GM2248134Courtesy of GENERAL MOTORS CORP.
Fig 6: Ignition Controls Circuit Schematic - Bank 1 Ignition System
GM2248136Courtesy of GENERAL MOTORS CORP.

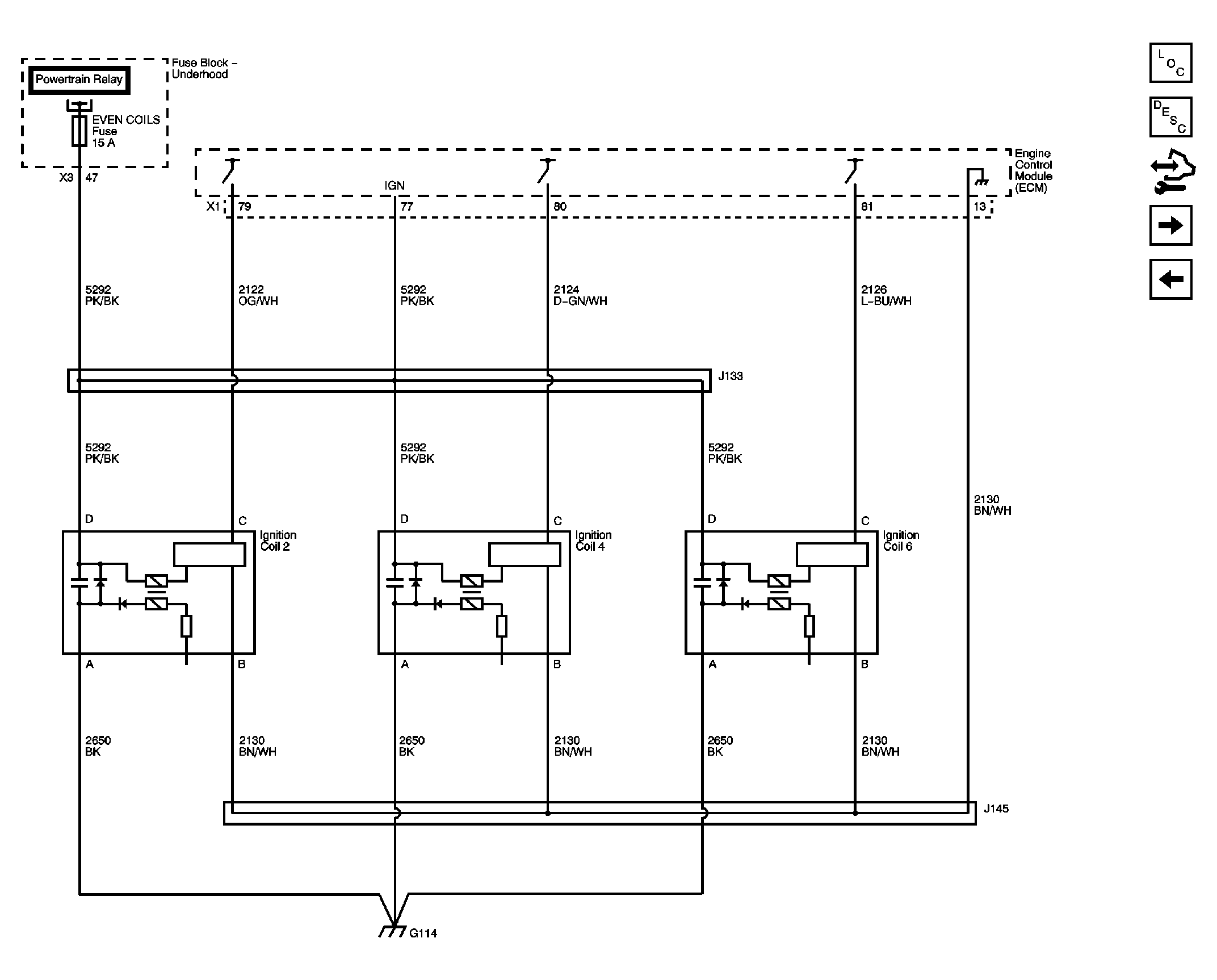

Fig 7: Ignition Controls Circuit Schematic - Bank 2 Ignition System
GM2248138Courtesy of GENERAL MOTORS CORP.

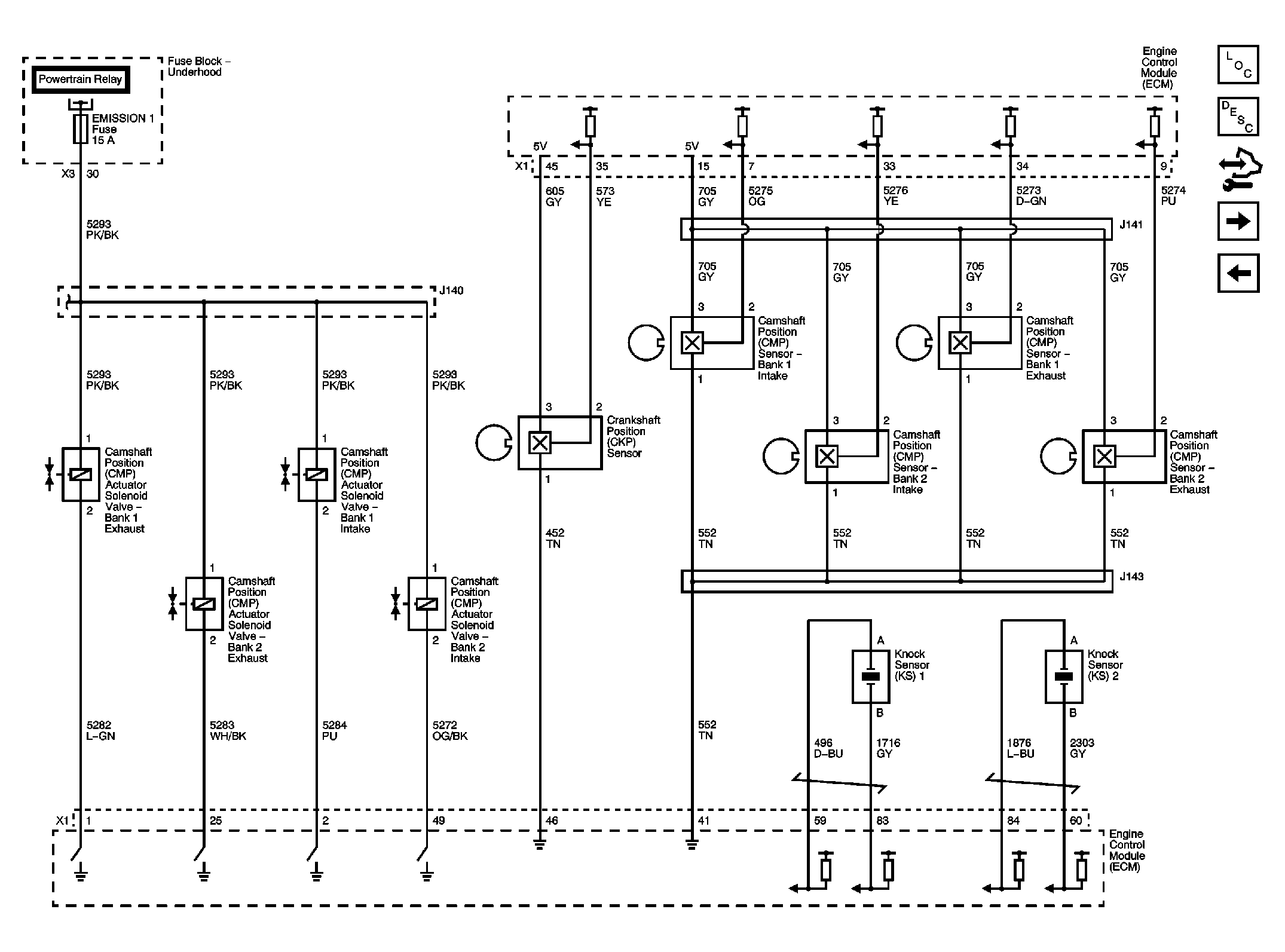

Fig 8: Ignition Controls Circuit Schematic - CKP/CMP/KS Sensors & CMP Actuator Solenoids
GM2248141Courtesy of GENERAL MOTORS CORP.
Fig 9: Fuel Controls Circuit Schematic - Fuel Injectors
GM2248144Courtesy of GENERAL MOTORS CORP.
Fig 10: Fuel Controls Circuit Schematic - Fuel Pump Flow Control
GM2248146Courtesy of GENERAL MOTORS CORP.

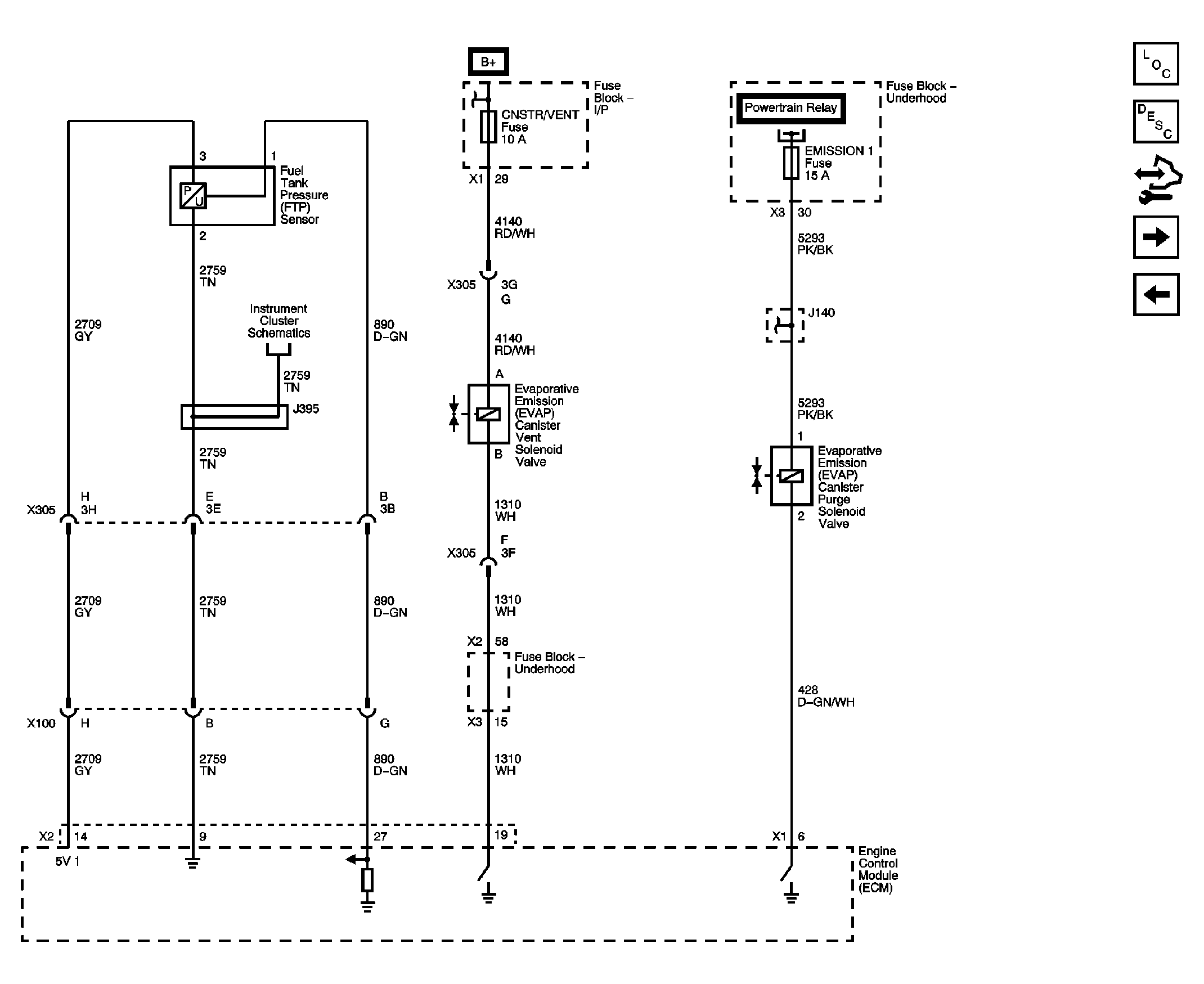

Fig 11: Fuel Controls Circuit Schematic - EVAP Controls
GM2248147Courtesy of GENERAL MOTORS CORP.
Fig 12: Subsystem References Circuit Schematic
GM2248150Courtesy of GENERAL MOTORS CORP.
