Inflatable Restraint I/P Module

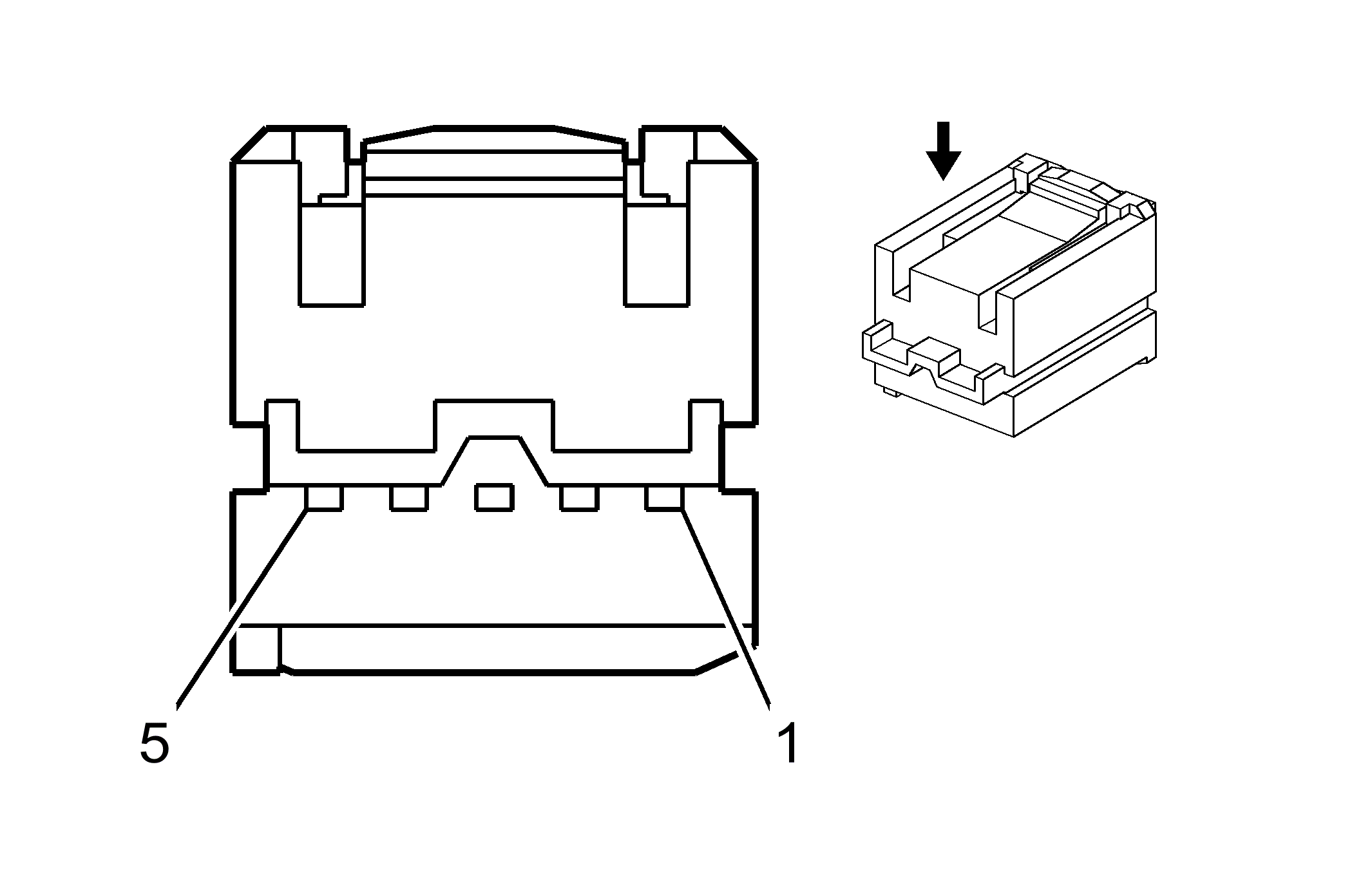

Fig 1: Inflatable Restraint I/P Module Connector End View

Courtesy of GENERAL MOTORS CORP.

Inflatable Restraint I/P Module Connector Pin Identification

Pin	Wire	Circuit	Function
1	0.35 YE	3025	I/P Module - Stage 1 - High Control
2	0.35 OG	3024	I/P Module - Stage 1 - Low Control
3	-	-	Not Used
4	0.35 GY	3027	I/P Module - Stage 2 - High Control
5	0.35 PU	3026	I/P Module - Stage 2 - Low Control

Connector Part Information

CAUTION: The connector at the Inflatable Restraint Module cannot be disconnected or removed without damage to the module. If the connector is removed from the module, the entire module with harness must be replaced.

Harness: Body
OEM: SNAPB-05UN-1FYS
Service: 19153434
Description: 5-Way F 0.64 Series Unsealed (YE)

Terminal Part Information

Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit
