Door Control Module Schematics

WARNING: This page is about a different car, the 2009 Saturn Outlook, 2009 GMC Acadia, 2009 Chevrolet Traverse, and 2009 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

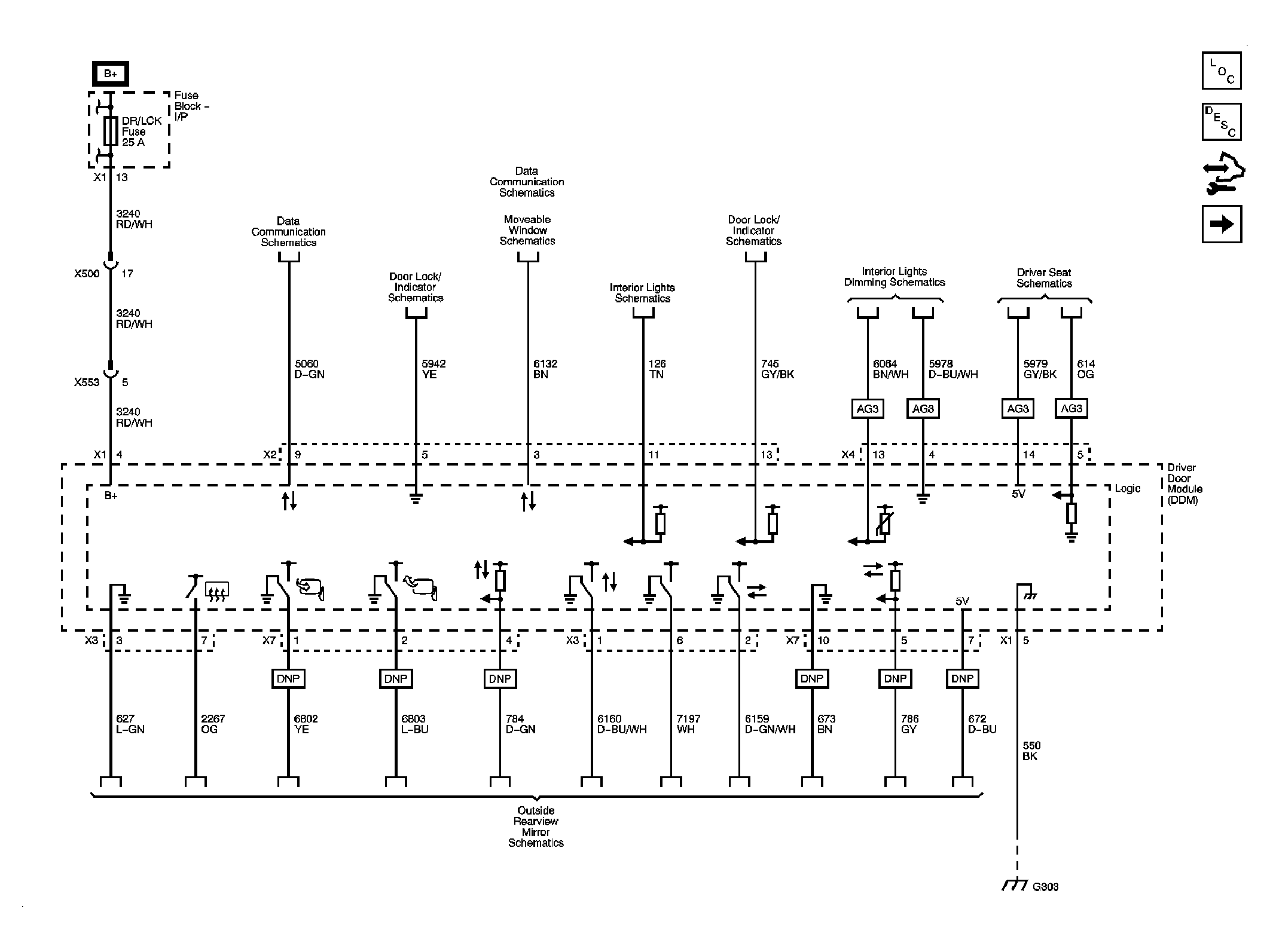

Fig 1: DDM Power, Ground & all except KA1 or KB6 References Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

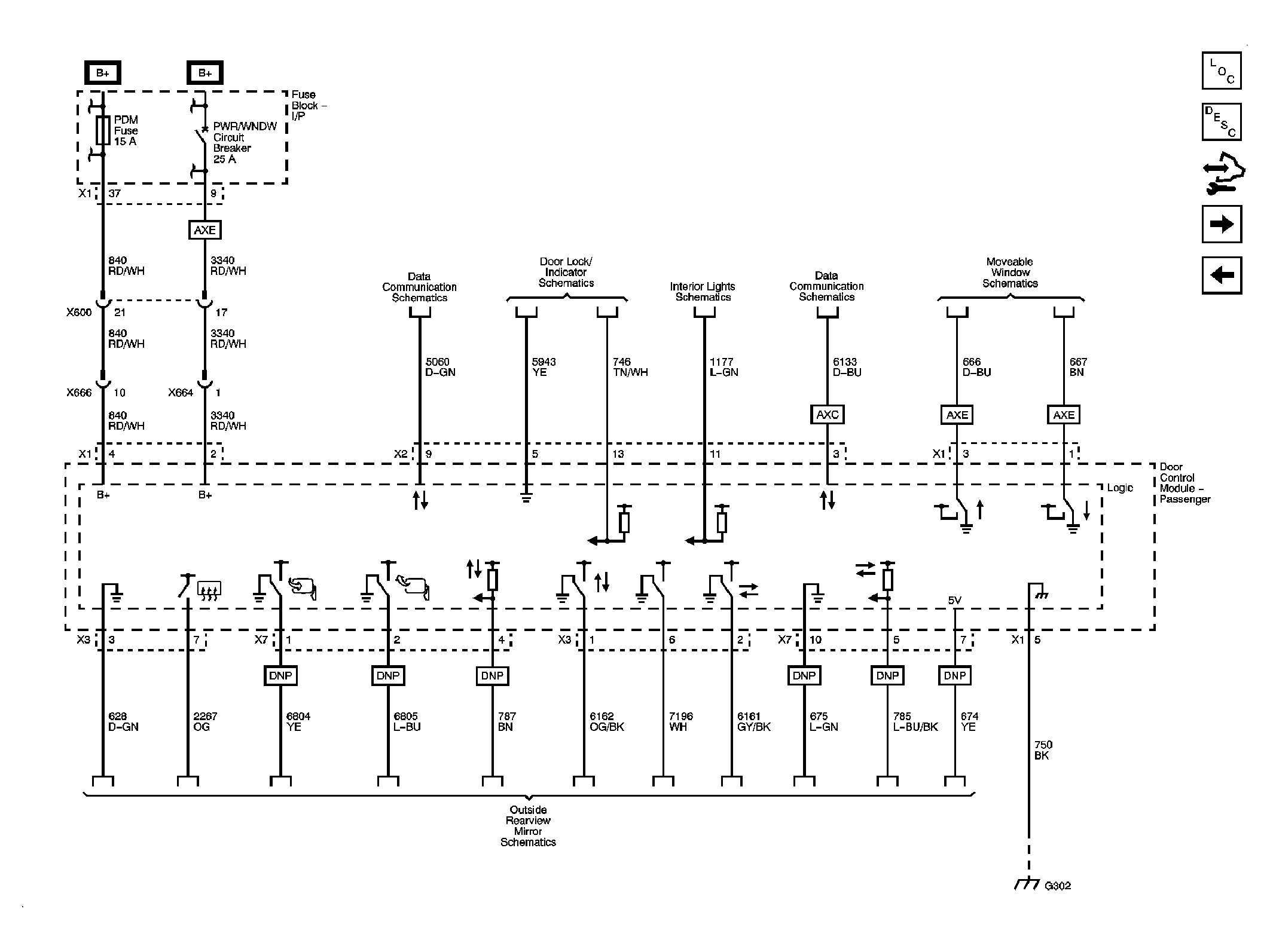

Fig 2: PDM Power, Ground & all except KA1 or KB6 References Circuit Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 3: KA1 and KB6 References Circuit Schematic

Courtesy of GENERAL MOTORS CORP.
