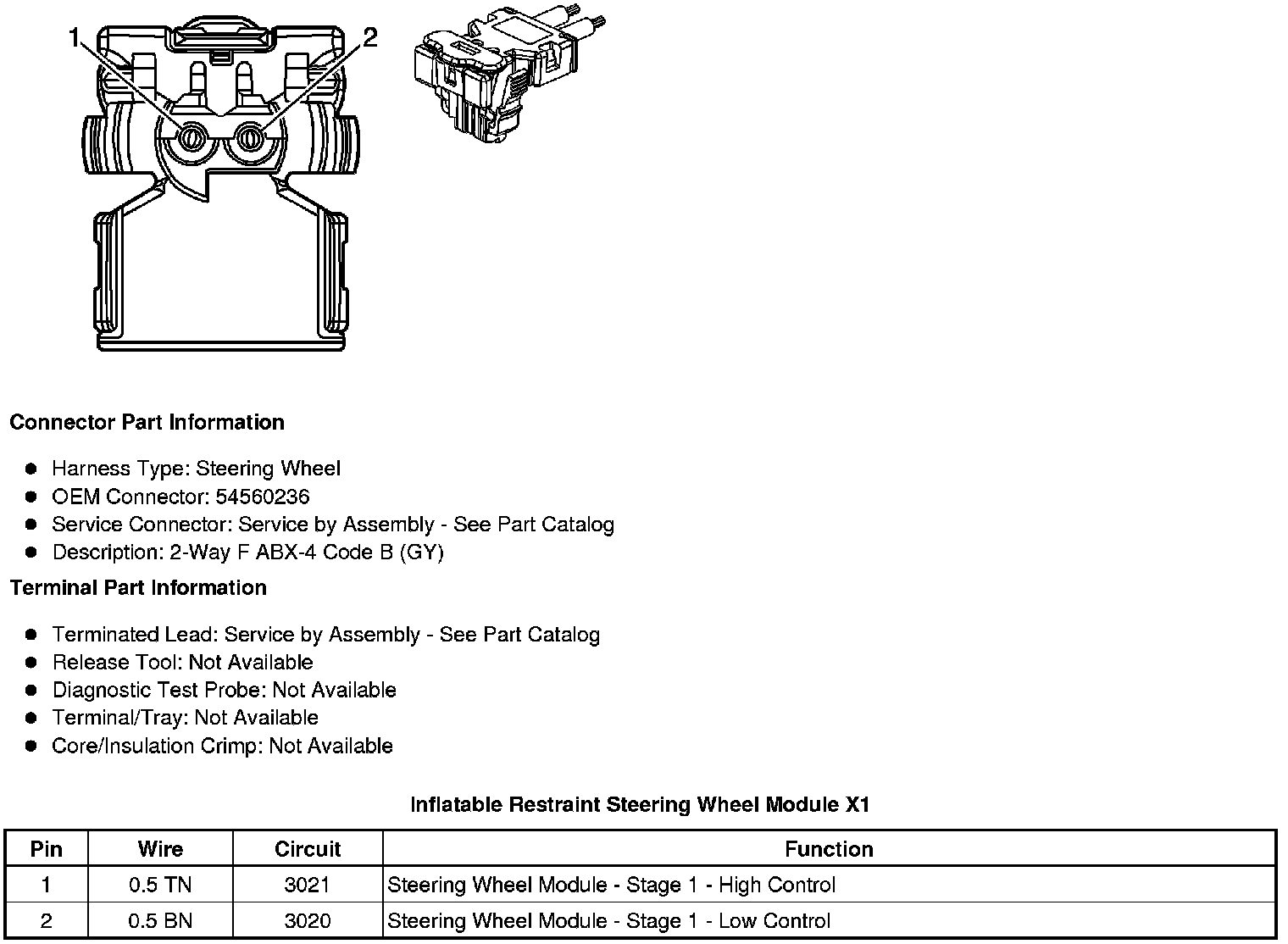

Inflatable Restraint Steering Wheel Module X1




Component Connector End Views

Inflatable Restraint Steering Wheel Module X1
