Remote Control Door Lock Receiver Replacement (Hatchback)

Remote Control Door Lock Receiver Replacement (Hatchback)

Removal Procedure




Warning: Refer to Battery Disconnect Warning (Battery Disconnect Warning).


Note: Remote keyless transmitters must be programmed when remote control module/receiver is replaced.

1. Disconnect the negative battery cable.

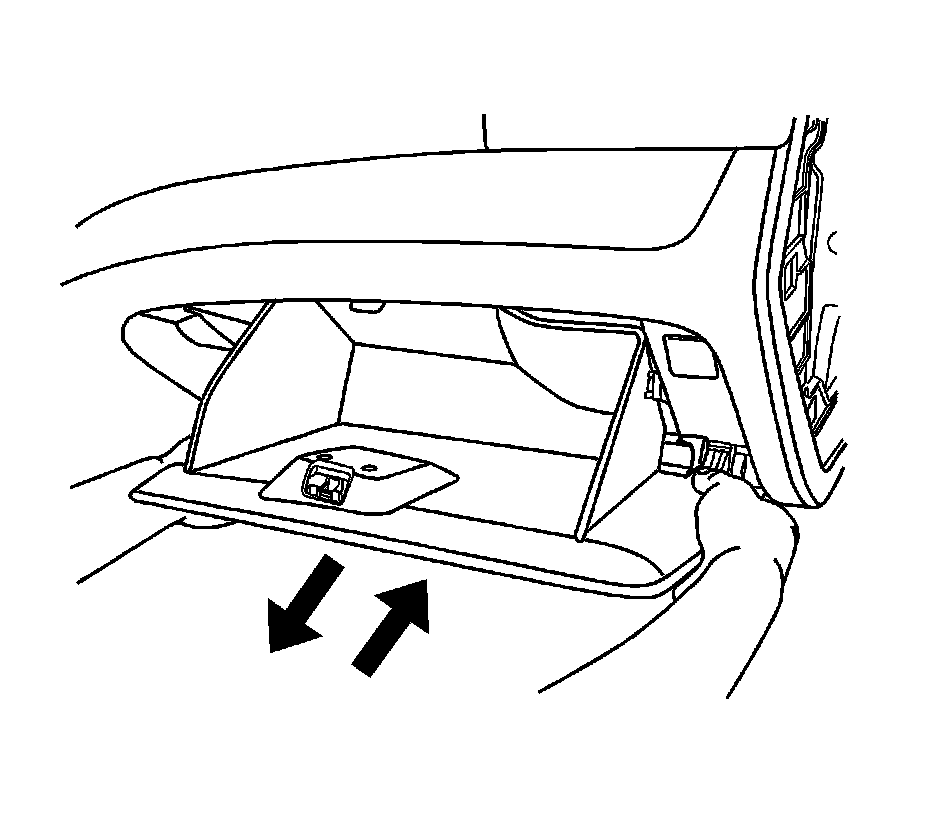

2. Remove the instrument panel storage compartment. Refer to Instrument Panel Storage Compartment Replacement (Instrument Panel Storage Compartment Replacement).
3. Disconnect the control module/receiver electrical connector.




4. Slide the control module/receiver (1) away from its mounting bracket.

Installation Procedure




1. Install the control module/receiver (1) on its mounting bracket.
2. Connect the control module/receiver electrical connector.




3. Install the instrument panel storage compartment. Refer to Instrument Panel Storage Compartment Replacement (Instrument Panel Storage Compartment Replacement).
4. Connect the negative battery cable.
5. Complete remote keyless transmitter programming. Refer to Remote Control Door Lock Transmitter Programming (Testing and Inspection).
