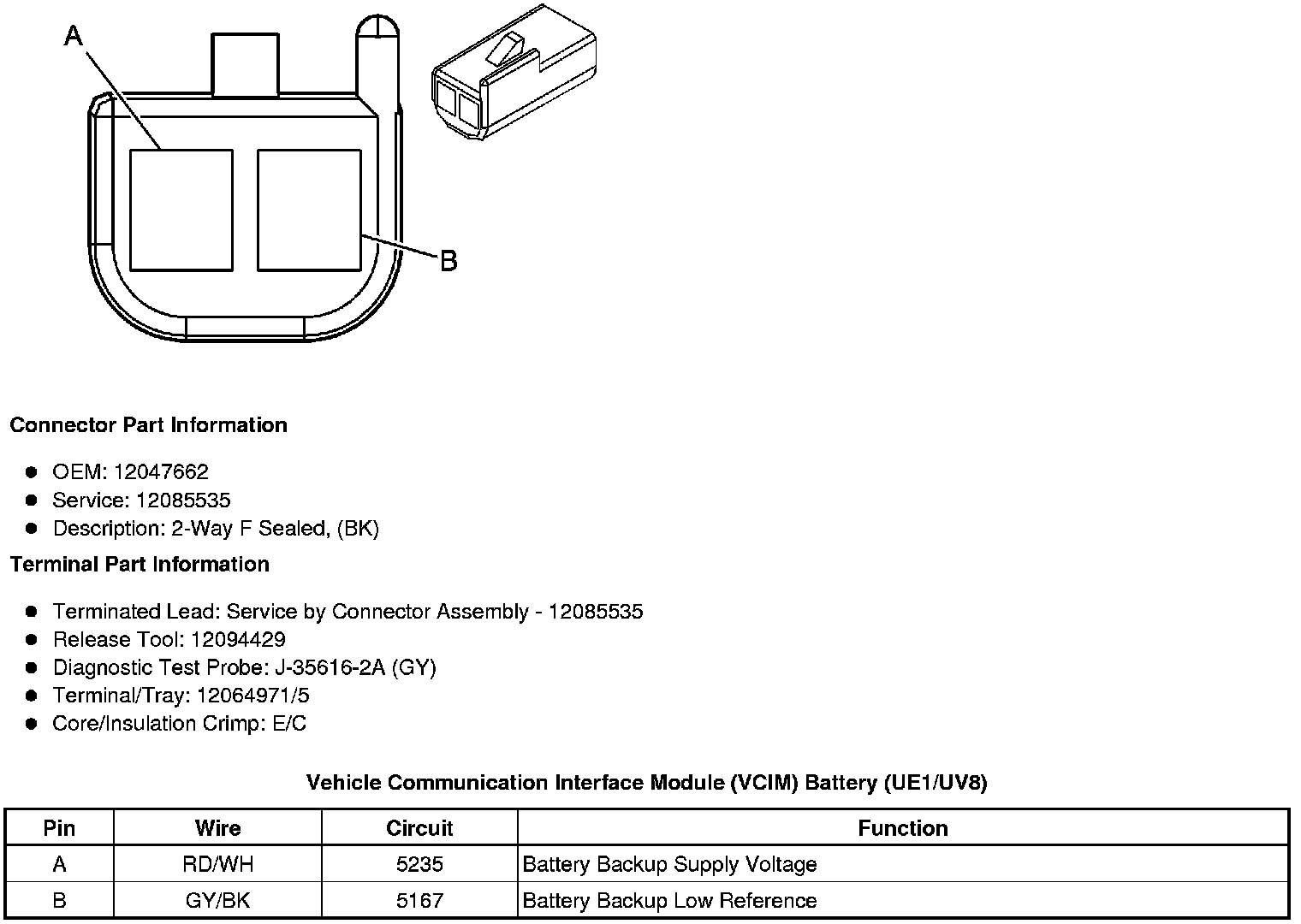

Vehicle Communication Interface Module (VCIM) Battery (UE1/UV8)




Component Connector End Views

Vehicle Communication Interface Module (VCIM) Battery (UE1/UV8)
