Transmission Control Module (TCM) X1 (MLQ)

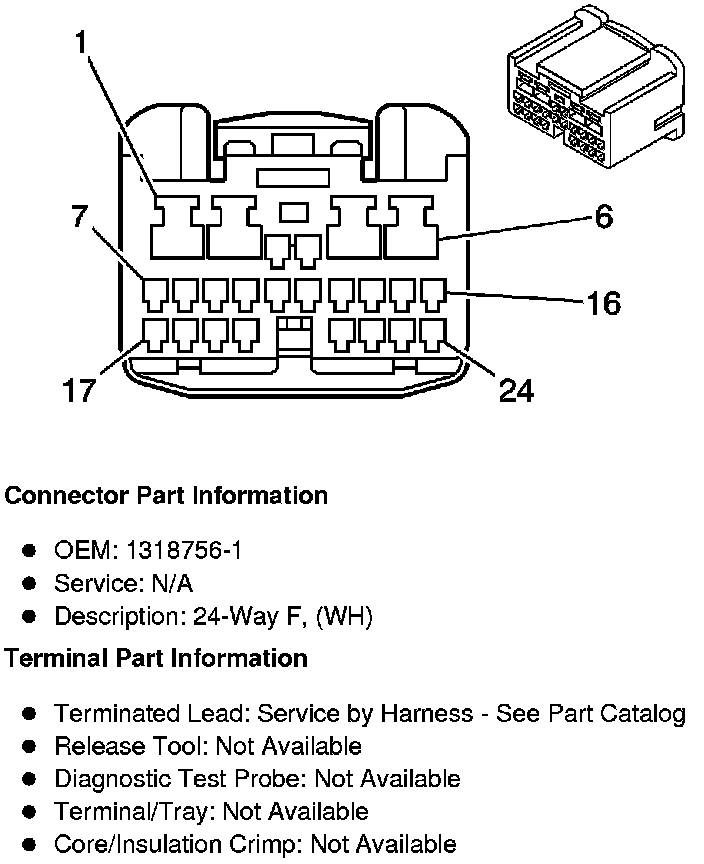

Component Connector End Views

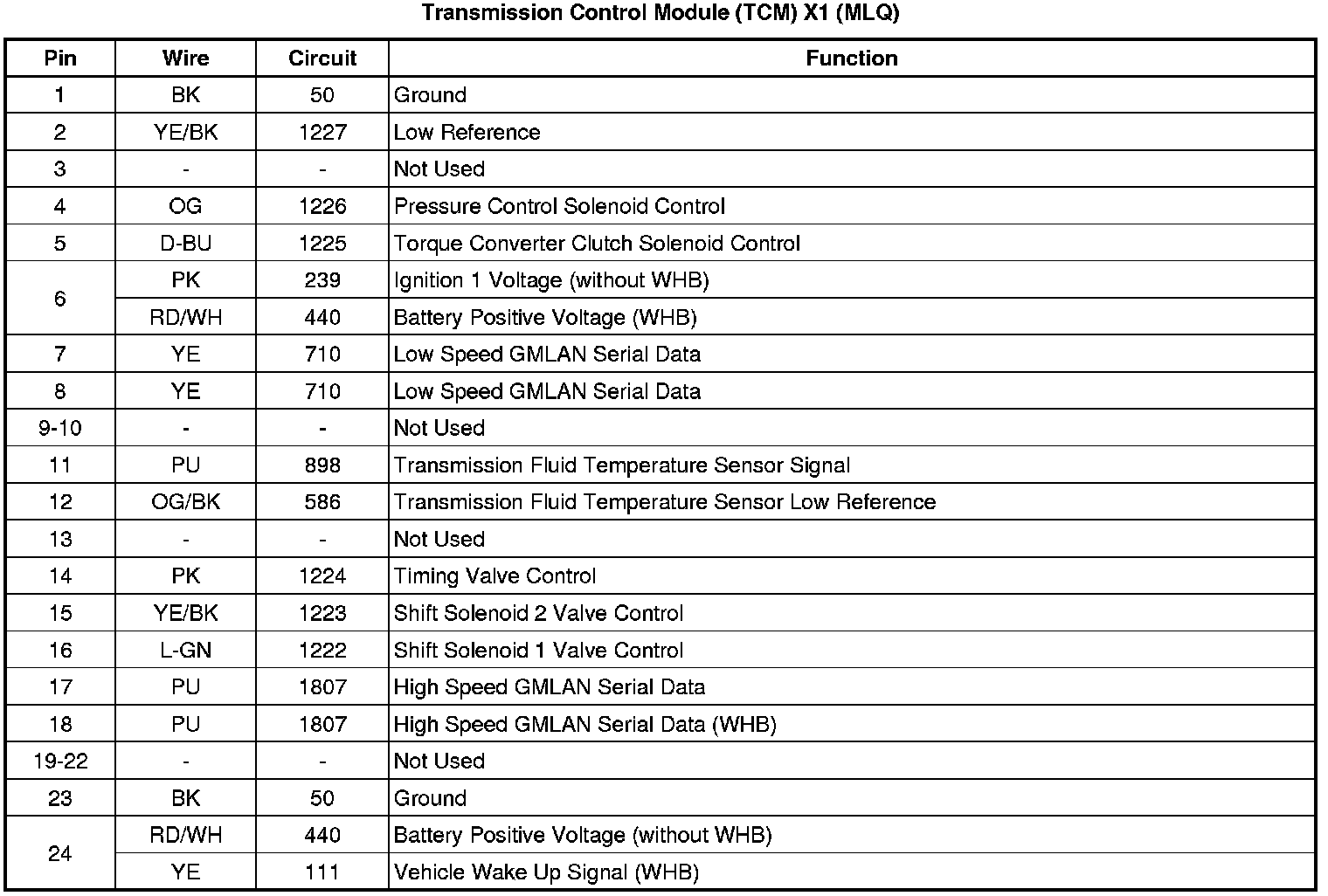

Transmission Control Module (TCM) X1 (MLQ)
