I/P Components

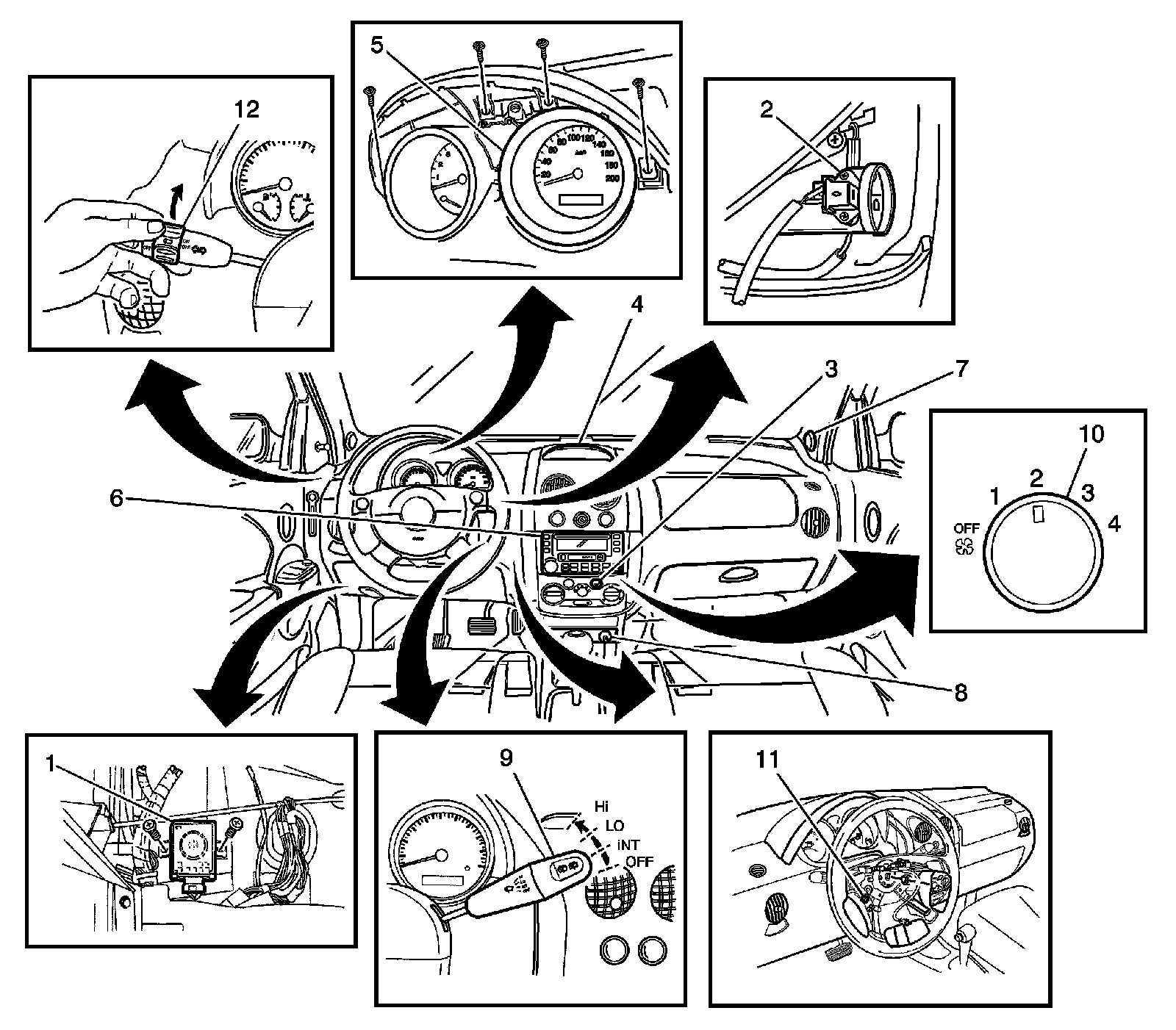

Instrument Panel/Center Console Component Views

I/P Components




1 - Multifunction Alarm Module
2 - Ignition Key Alarm Switch
3 - Defogger Switch
4 - Clock/Tele Tail
5 - Cluster
6 - Radio
7 - Tweeter Right/Left Similar
8 - Cigar Lighter
9 - Wiper Switch
10 - Blower Switch
11 - Horn Switch
12 - Headlamp Switch
