Accelerator Pedal Position Sensor: Service and Repair

Accelerator Pedal Position Sensor Replacement

Removal Procedure

Warning: Refer to Battery Disconnect Warning (Battery Disconnect Warning).





1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection (Service and Repair).
2. Disconnect the accelerator pedal position sensor connector.

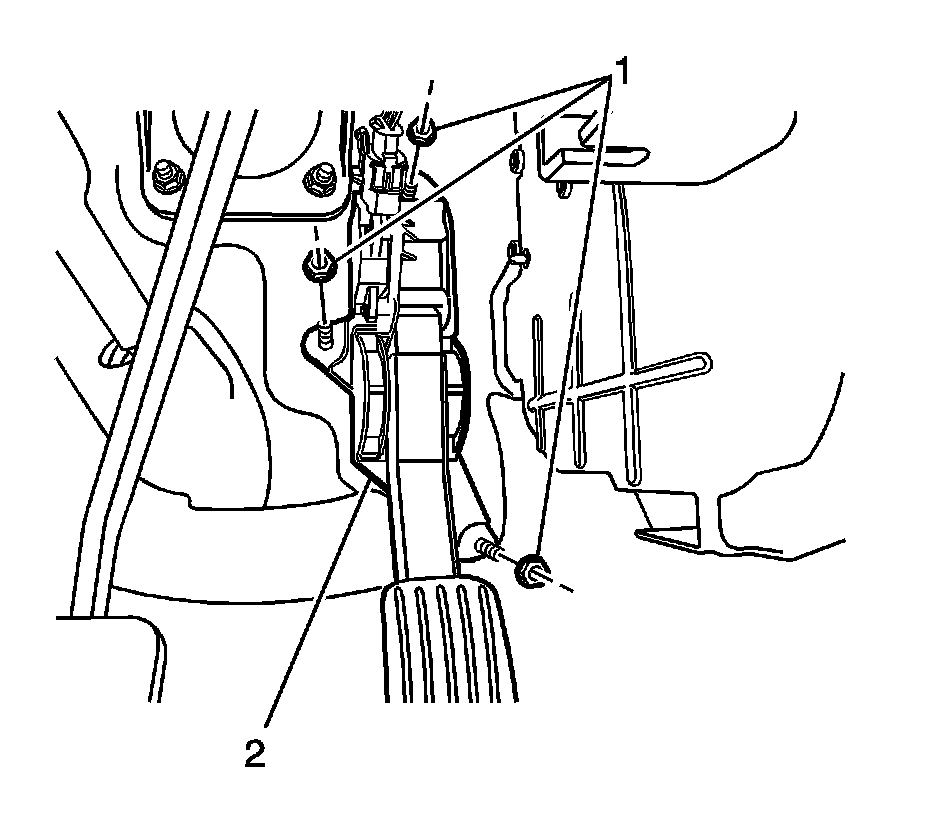

3. Remove the 3 accelerator pedal retaining nuts (1).
4. Remove the accelerator pedal (2).

Installation Procedure




1. Install the accelerator pedal (2).

Caution: Refer to Fastener Caution (Fastener Caution).

2. Install the 3 accelerator pedal retaining nuts (1).

Tighten the accelerator pedal retaining nuts to 19 Nm (14 lb ft).

3. Connect the accelerator pedal position sensor connector.
4. Connect the battery cable. Refer to Battery Negative Cable Disconnection and Connection (Service and Repair).
