Component Locations

Powertrain Component Views (LXT)

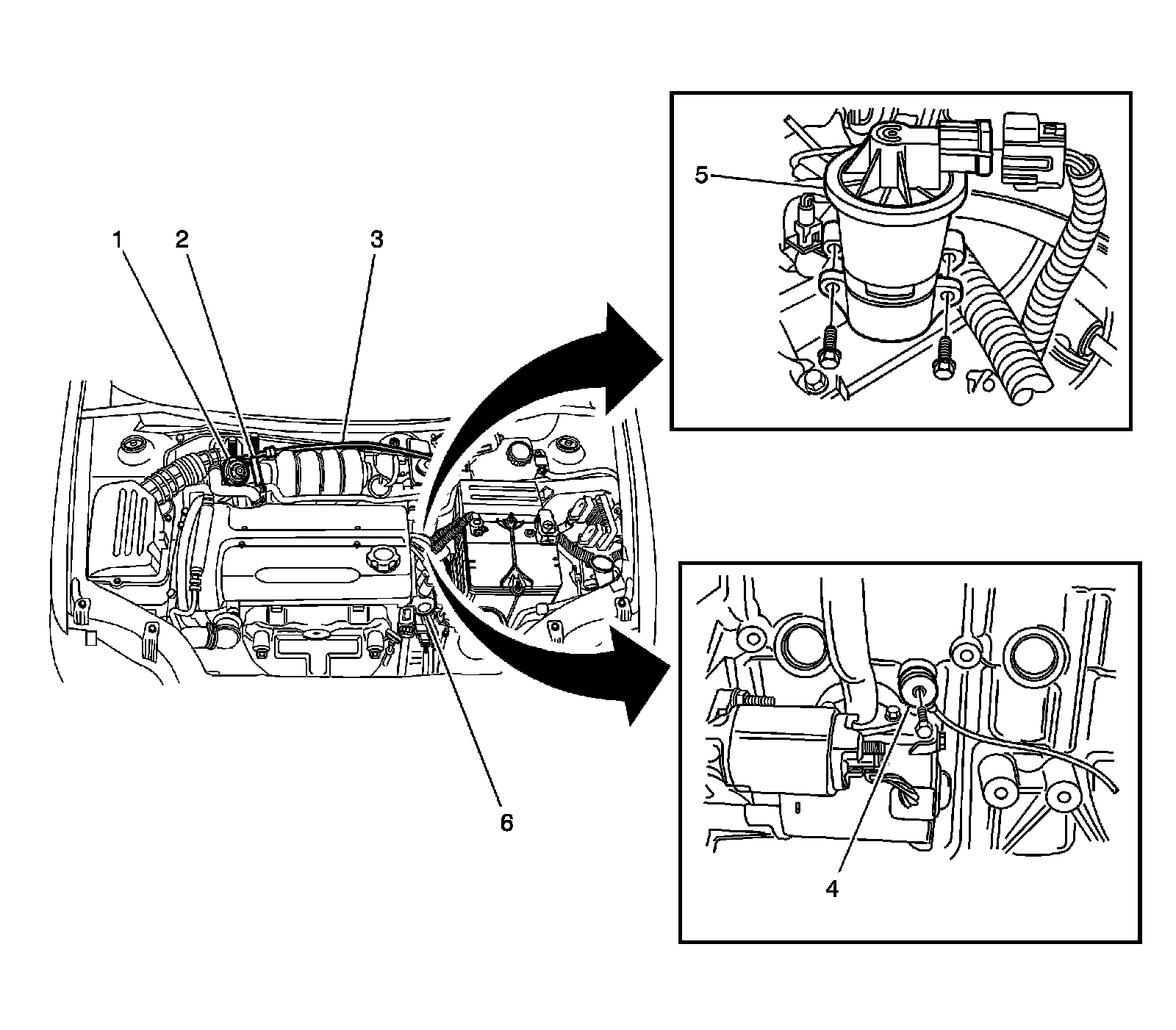

Exhaust Gas Recirculation (EGR) and Knock Sensor (KS)




1 - Idle Air Control (IAC) Valve
2 - Throttle Position (TP) Sensor
3 - Intake Manifold Tuning Valve Solenoid
4 - Knock Sensor (KS)
5 - Exhaust Gas Recirculation (EGR) Valve
6 - Vehicle Speed Sensor (VSS)
