Installation Procedure
WARNING: This page is about a different car, the 2012 Chevrolet Camaro. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect the brake caliper pins and brake pad springs for damage or excessive corrosion and replace, if necessary.

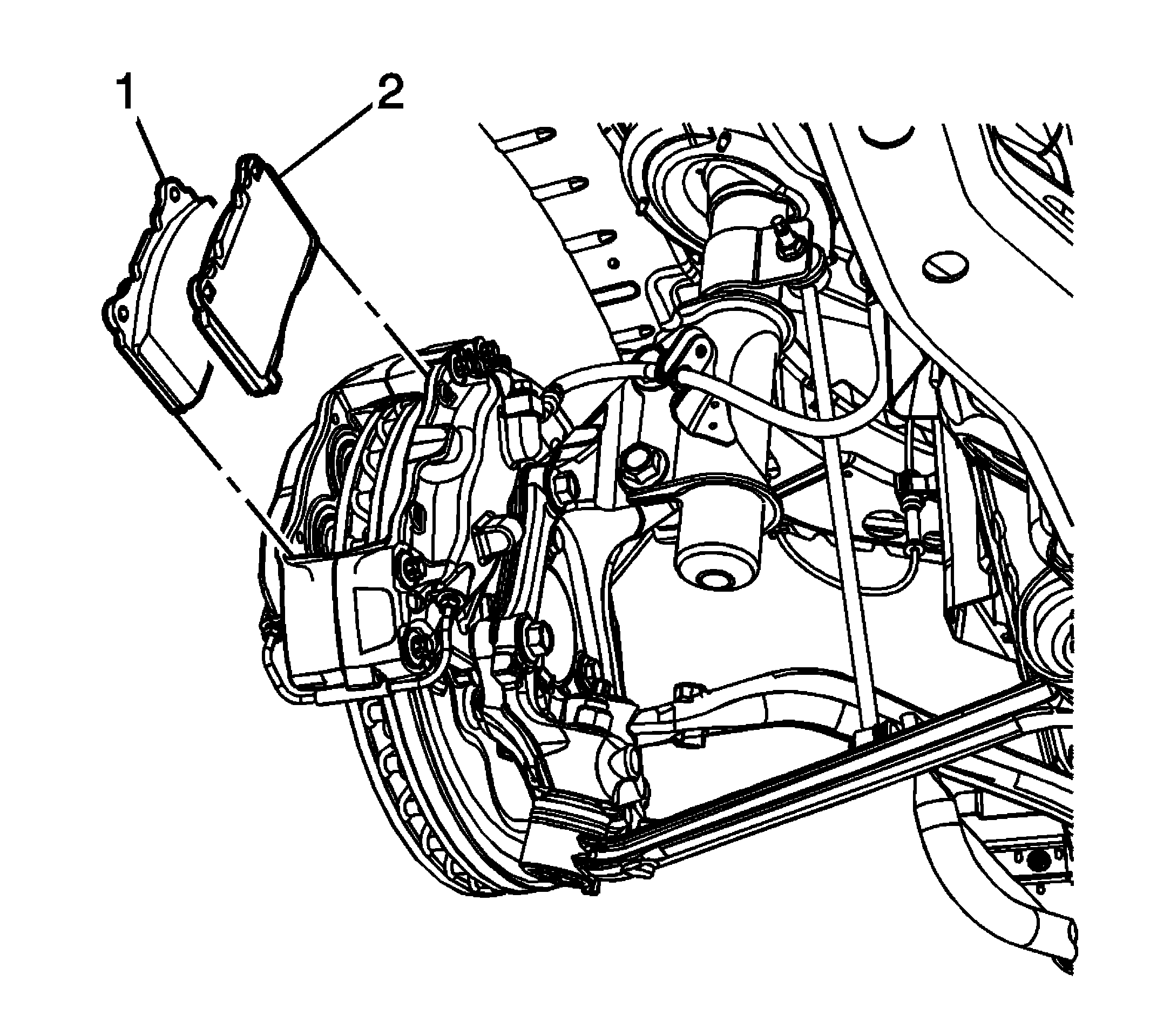

- Install the outer brake pad (1).
- Install the inner brake pad (2), noting the location of the brake pad wear sensor.
- Carefully drive the upper brake caliper pin (1) into the brake caliper.
- Ensure the brake caliper pin is fully seated in the brake caliper.
- Install the brake pad spring (1).
- Hold the end of the brake pad spring down and carefully drive the lower brake caliper pin (1) into the brake caliper.
- Ensure the brake caliper pin is fully seated in the brake caliper.
- Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation (w RT2) , Tire and Wheel Removal and Installation (w/o RT2) .
- With the engine OFF, gradually apply the brake pedal to approximately 2/3 of its travel distance.
- Slowly release the brake pedal.
- Wait 15 seconds, then repeat steps 10 and 11 until a firm brake pedal apply is obtained. This will properly seat the brake caliper pistons and brake pads.
- Fill the brake master cylinder reservoir to the proper level. Refer to Master Cylinder Reservoir Filling .
- Burnish the brake pads and rotors. Refer to Brake Pad and Rotor Burnishing .
