Top of Engine Components

Powertrain Component Views

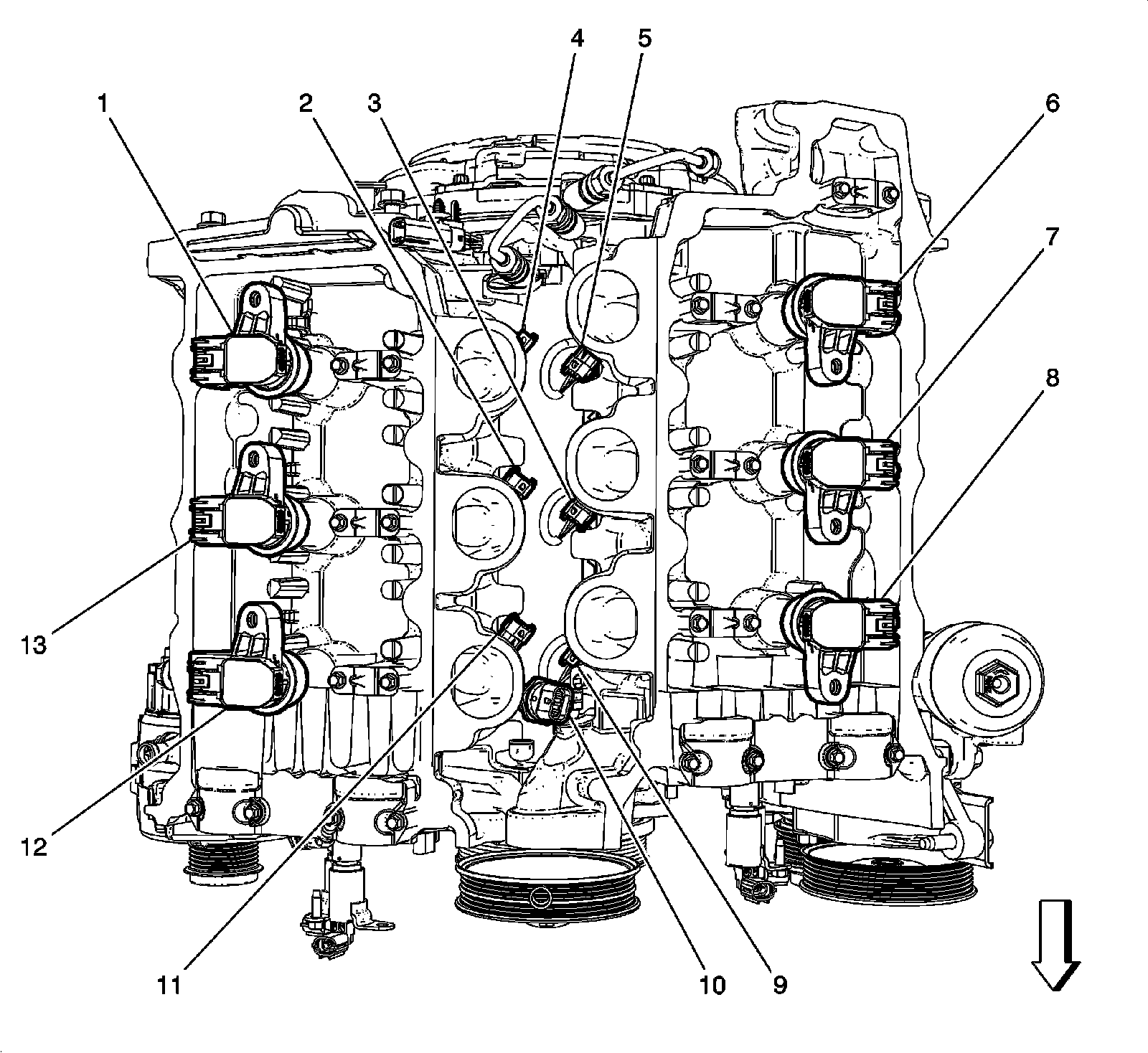

Top of the Engine Components (LLT)

1 - T8E Ignition Coil 5
2 - Q17C Fuel Injector 3
3 - Q17D Fuel Injector 4
4 - Q17E Fuel Injector 5
5 - Q17F Fuel Injector 6
6 - T8F Ignition Coil 6
7 - T8D Ignition Coil 4
8 - T8B Ignition Coil 2
9 - Q17B Fuel Injector 2
10 - B47B Fuel Rail Pressure Sensor
11 - Q17A Fuel Injector 1
12 - T8A Ignition Coil 1
13 - T8C Ignition Coil 3
