Air Flow Meter/Sensor: Locations

Powertrain Component Views

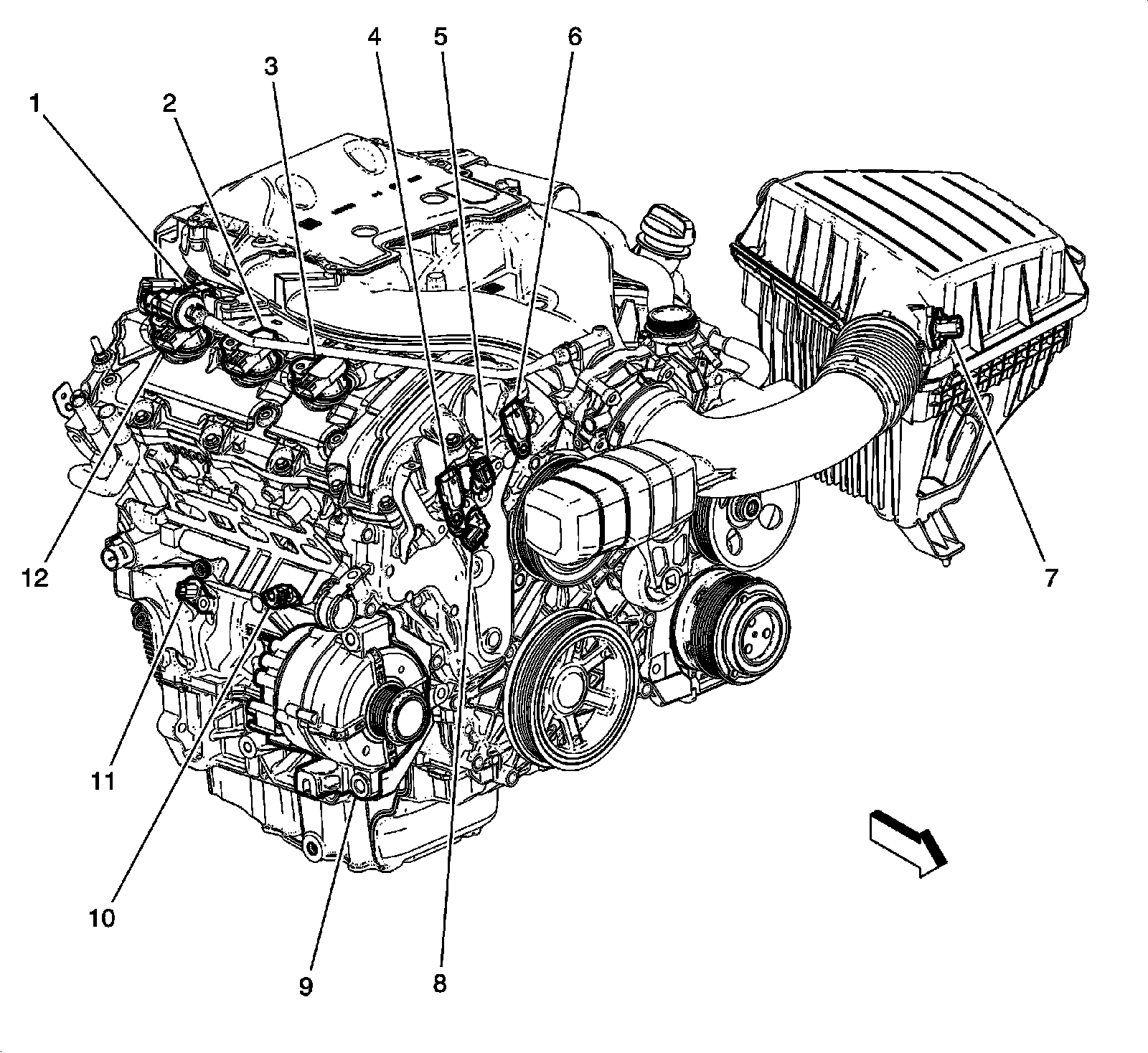

Right Front of the Engine Components (LLT)




1 - Q12 Evaporative Emission (EVAP) Purge Solenoid Valve
2 - T8C Ignition Coil 3
3 - T8A Ignition Coil 1
4 - B23A Camshaft Position Sensor - Bank 1 Exhaust
5 - Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake
6 - B23B Camshaft Position Sensor - Bank 1 Intake
7 - B75B Mass Air Flow/Intake Air Temperature Sensor
8 - Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust
9 - G13 Generator
10 - B68A Knock Sensor 1
11 - B26 Crankshaft Position Sensor
12 - T8E Ignition Coil 5
