Entertainment System Control Module: Locations

Passenger Compartment/Roof Component Views

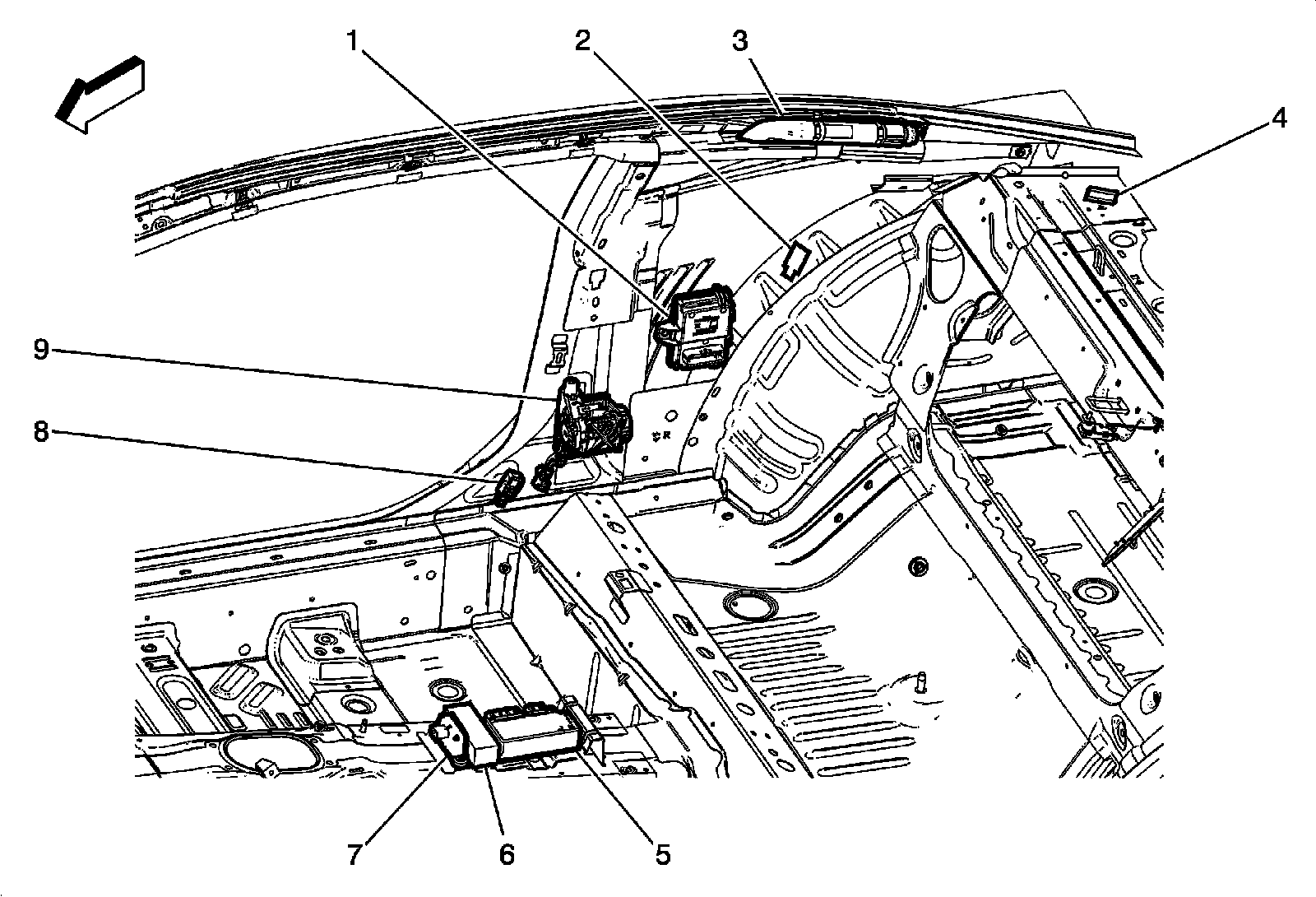

Passenger Compartment From Top Left Components




1 - K27 Fuel Pump Control Module
2 - R6 Data Link Resistor
3 - F105R Roof Rail Air Bag - Right
4 - R14R Rear Window Defogger Noise Filter - Right
5 - K36 Inflatable Restraint Sensing and Diagnostic Module
6 - T11 Multimedia Player Interface Module
7 - B119 Multi-axis Acceleration Sensor
8 - B63R Side Impact Sensor - Right
9 - F112P Seat Belt Retractor Pretensioner - Passenger
