Air Flow Meter/Sensor: Locations

Powertrain Component Views

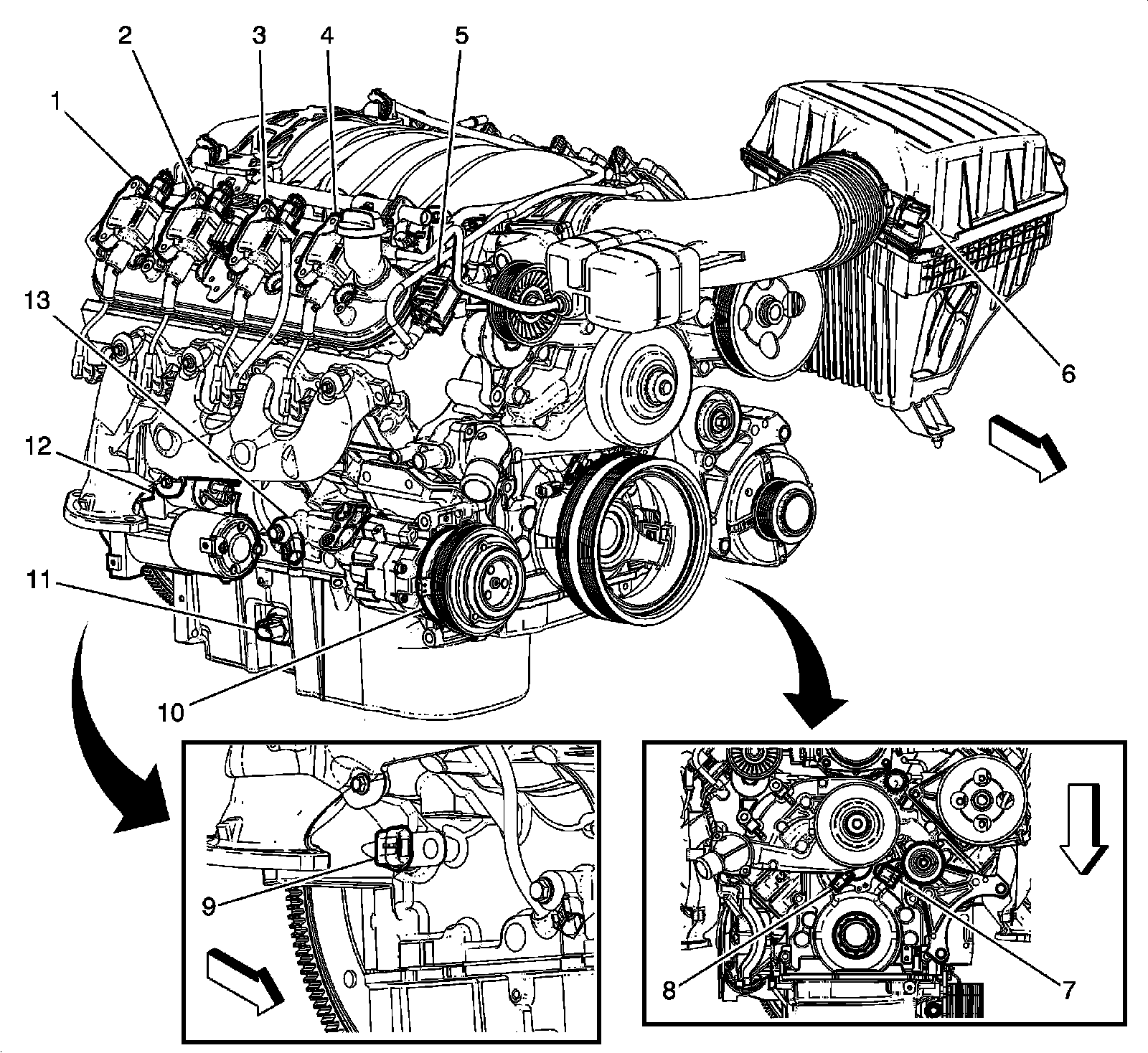

Right Front of the Engine Components (L99 or LS3)




1 - T8H Ignition Coil 8
2 - T8F Ignition Coil 6
3 - T8D Ignition Coil 4
4 - T8B Ignition Coil 2
5 - Q12 Evaporative Emission (EVAP) Purge Solenoid Valve
6 - B75B Mass Air Flow/Intake Air Temperature Sensor
7 - B23 Camshaft Position Sensor
8 - Q6 Camshaft Position Actuator Solenoid Valve (L99)
9 - B26 Crankshaft Position Sensor
10 - Q2 A/C Compressor Clutch
11 - B35C Engine Oil Level and Temperature Sensor
12 - M64 Starter Motor
13 - B68B Knock Sensor 2
