Module Power, Ground, Serial Data, and Traction Control Wiring Schematic

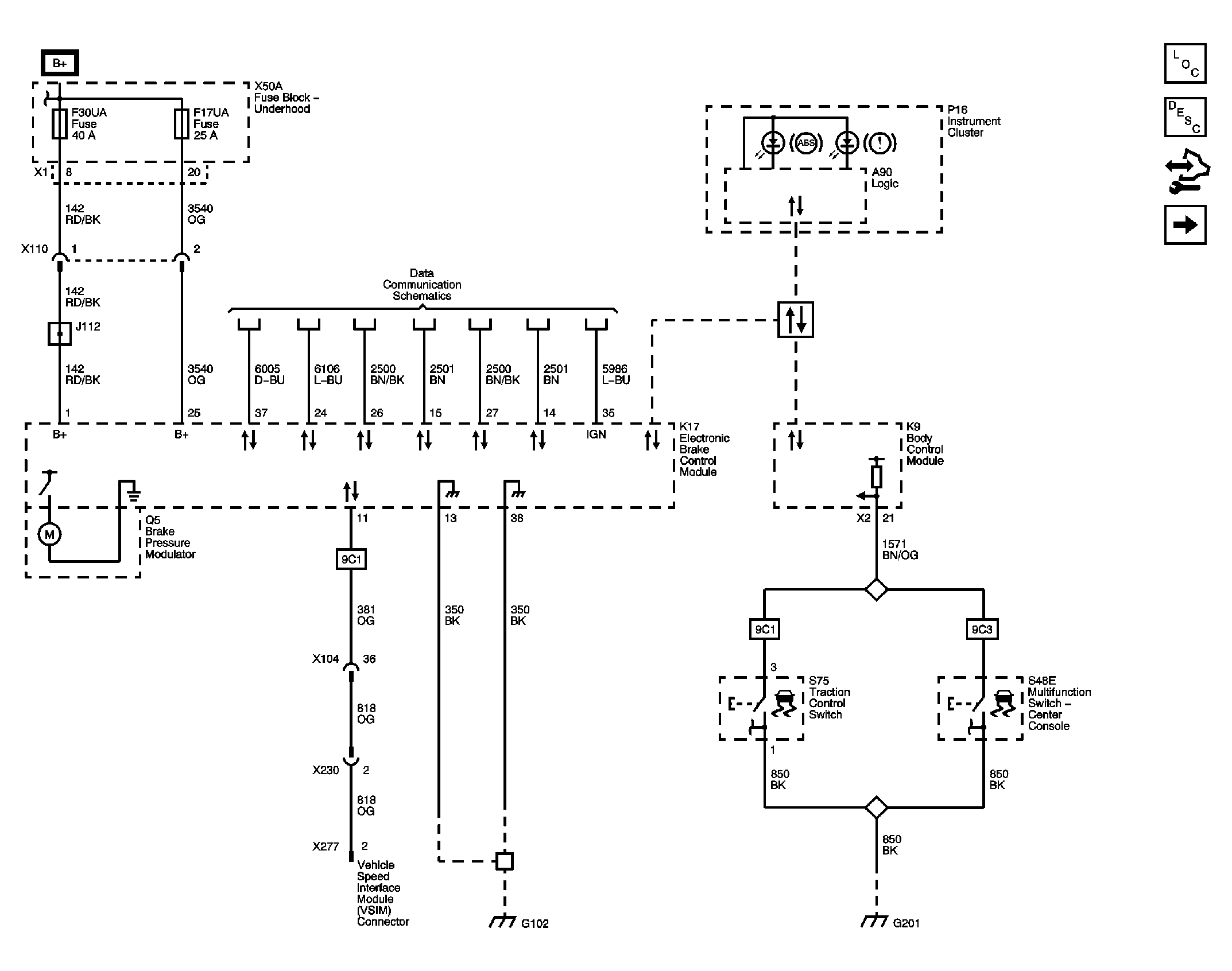

Fig 1: Module Power, Ground, Serial Data, and Traction Control Wiring Schematic
GM2531237Courtesy of GENERAL MOTORS CORP.
