Installation Procedure

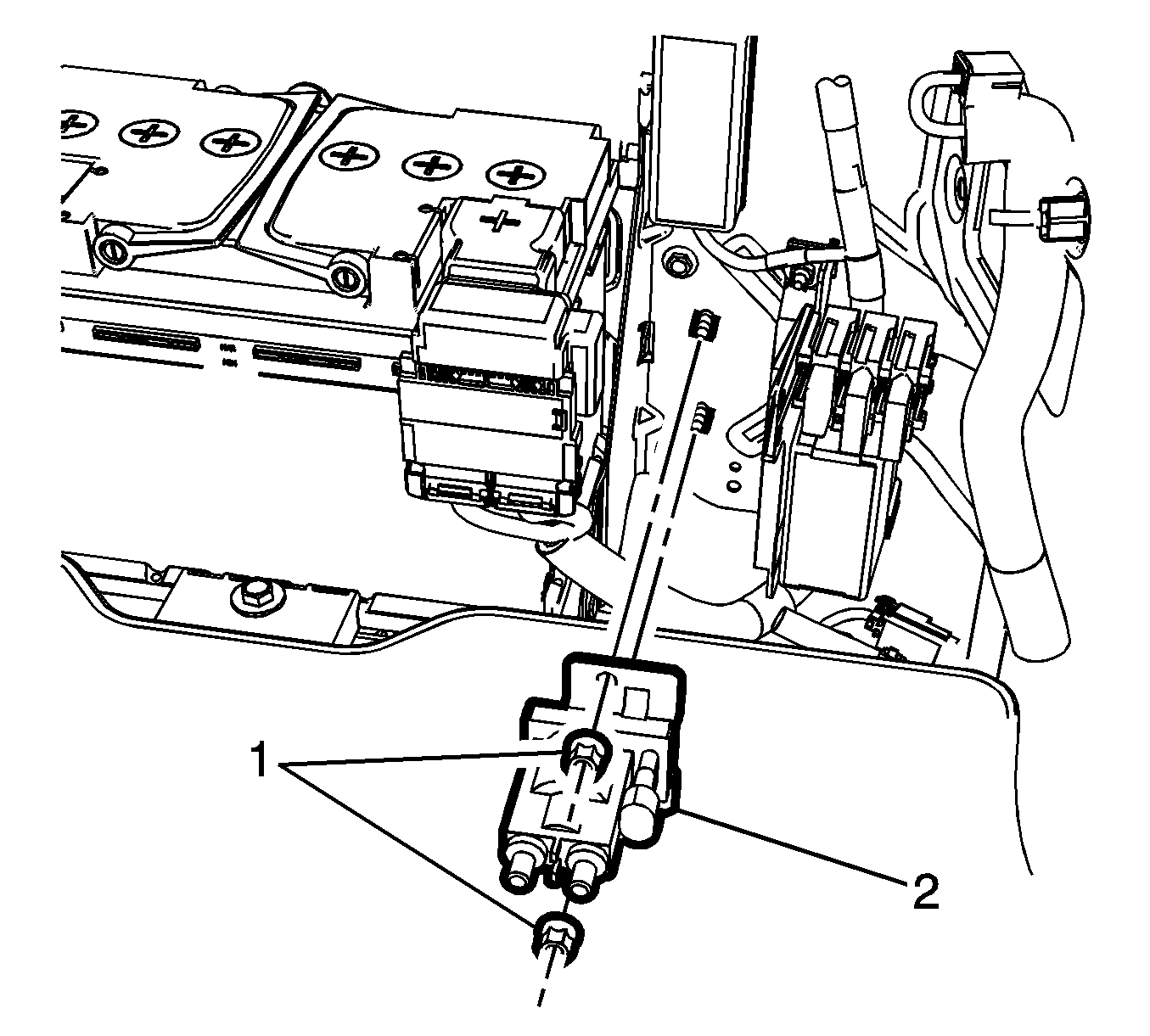

    Fig 1: Battery Isolator Mounting Nuts
    GM2548826Courtesy of GENERAL MOTORS CORP.
    CAUTION:

    Refer to Fastener Caution .

  1. Install the battery isolator (2) and tighten the mounting nuts (1) to 9 N.m (80 lb in).

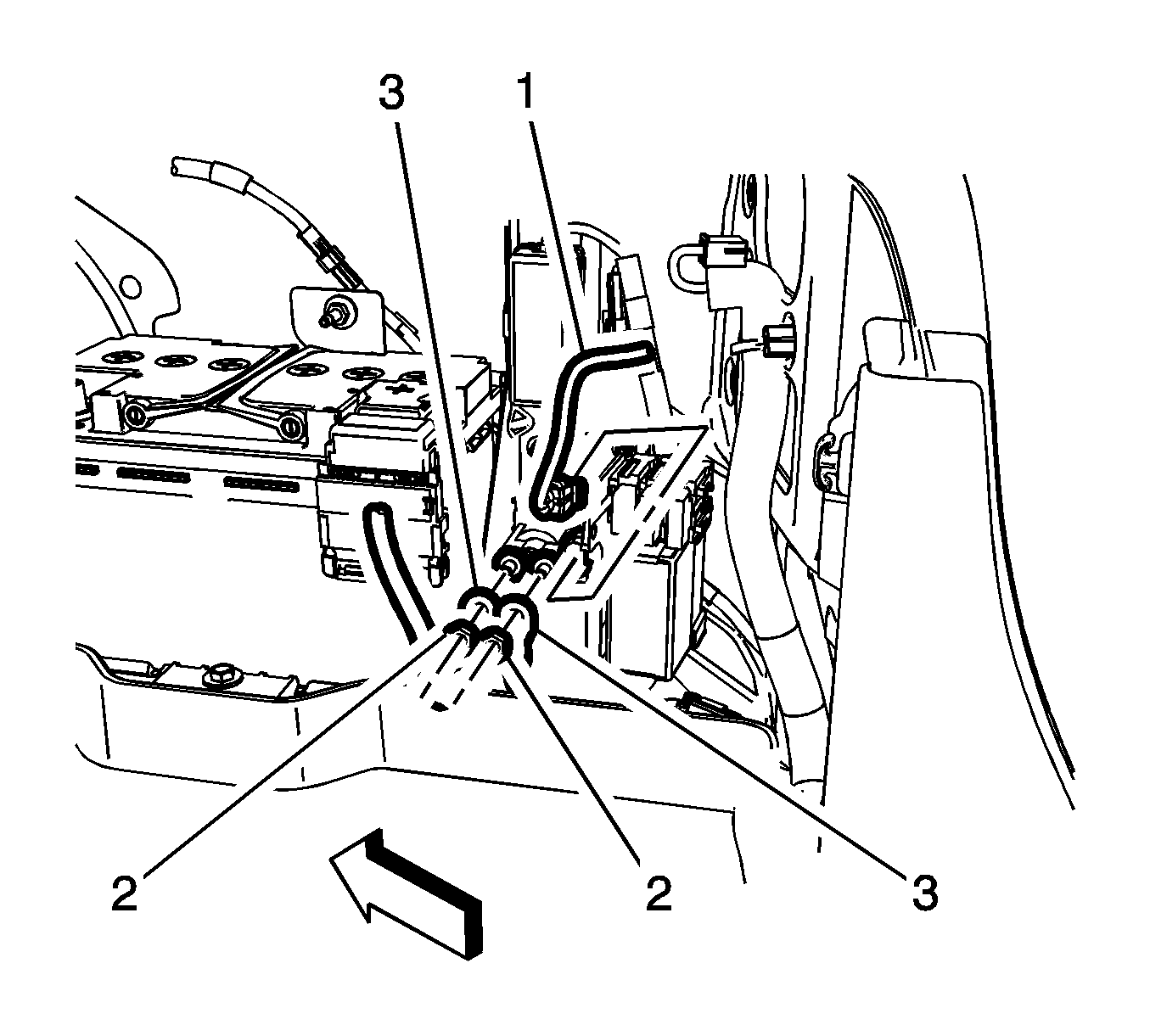

    2. Fig 2: Battery Isolator Terminal Nuts
    GM2548827Courtesy of GENERAL MOTORS CORP.
  2. Install the battery isolator terminals (3) and tighten the terminal nuts (2) to 9 N.m (80 lb in).
  3. Connect the fuse block connector (1) to the battery isolator.
  4. Install the battery isolator cover.
  5. Install the rear compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement .
  6. Connect the primary negative battery cable. Refer to Battery Negative Cable Disconnection and Connection (Primary) , Battery Negative Cable Disconnection and Connection (Auxiliary) .
